Alimentatore Chieftec BDK-650FC 650 W 20+4 Pin ATX ATX nero

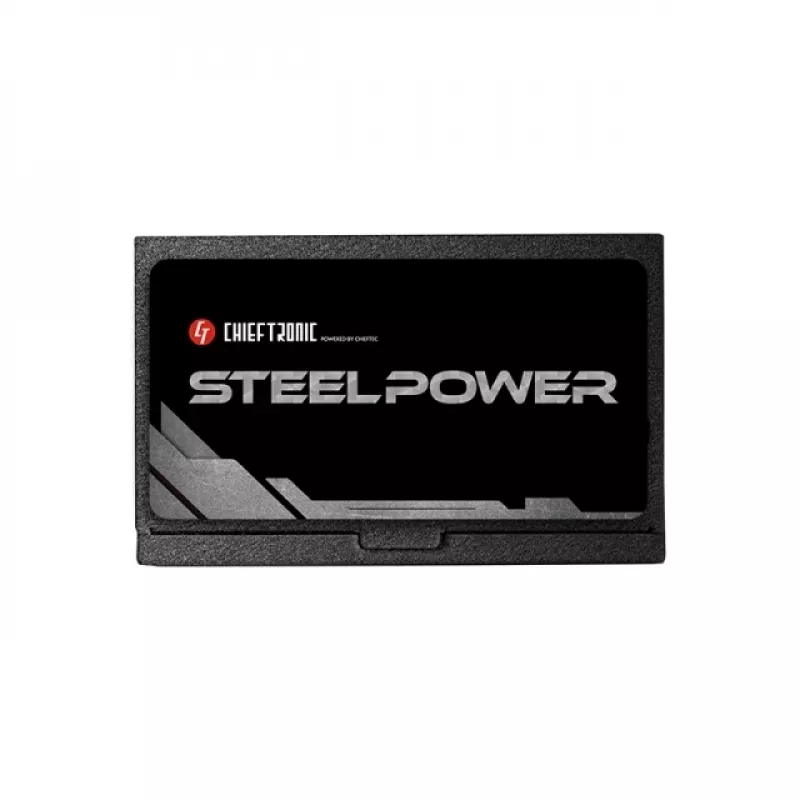

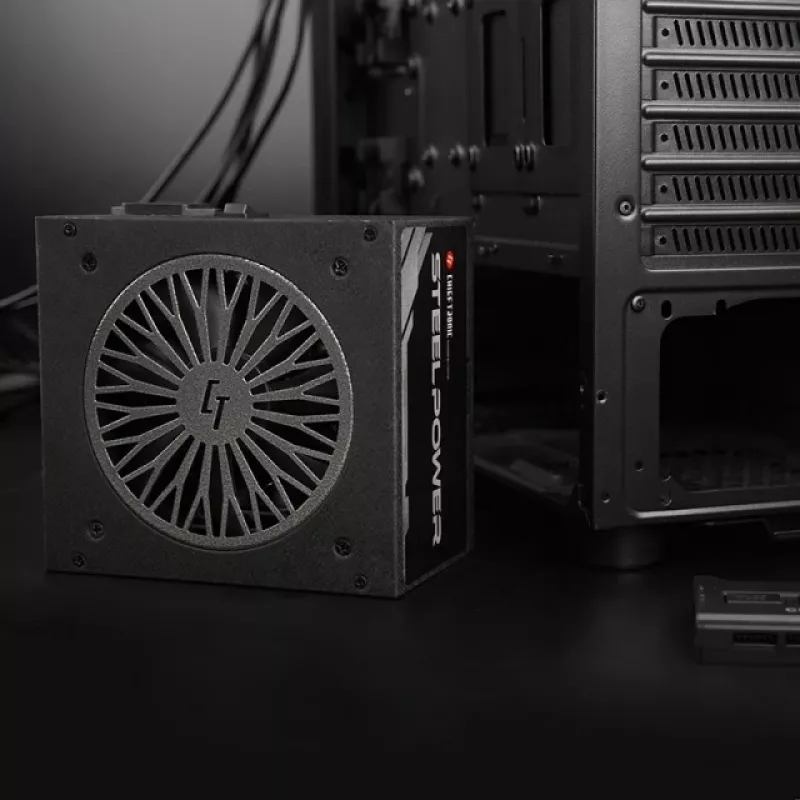

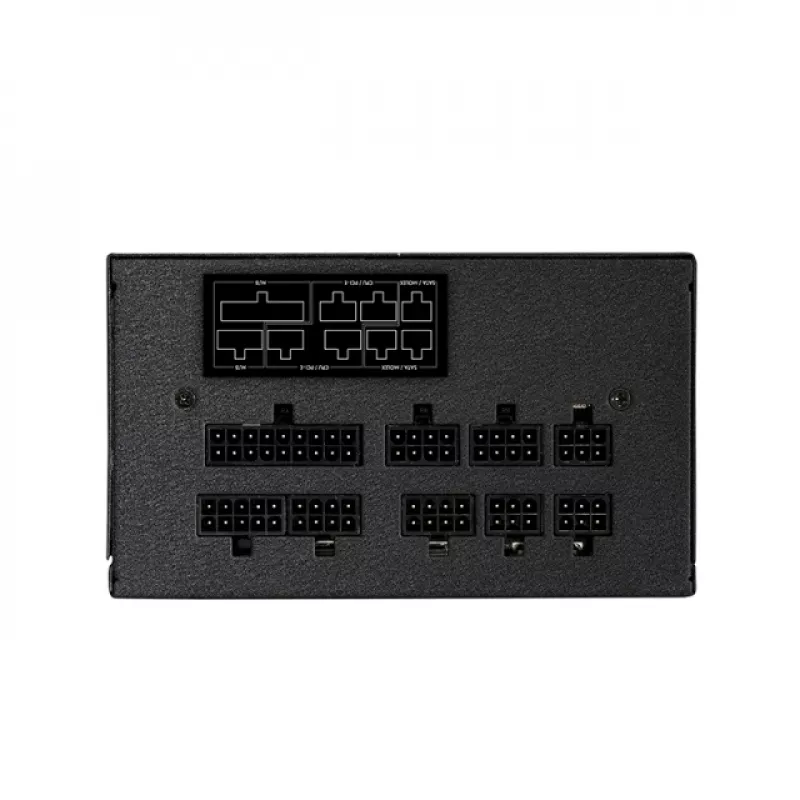

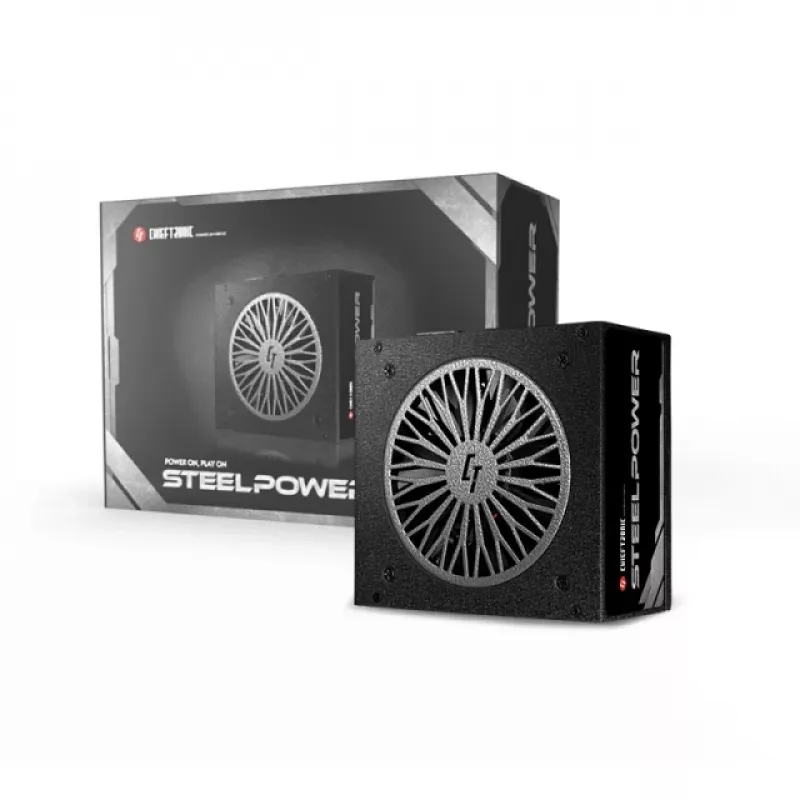

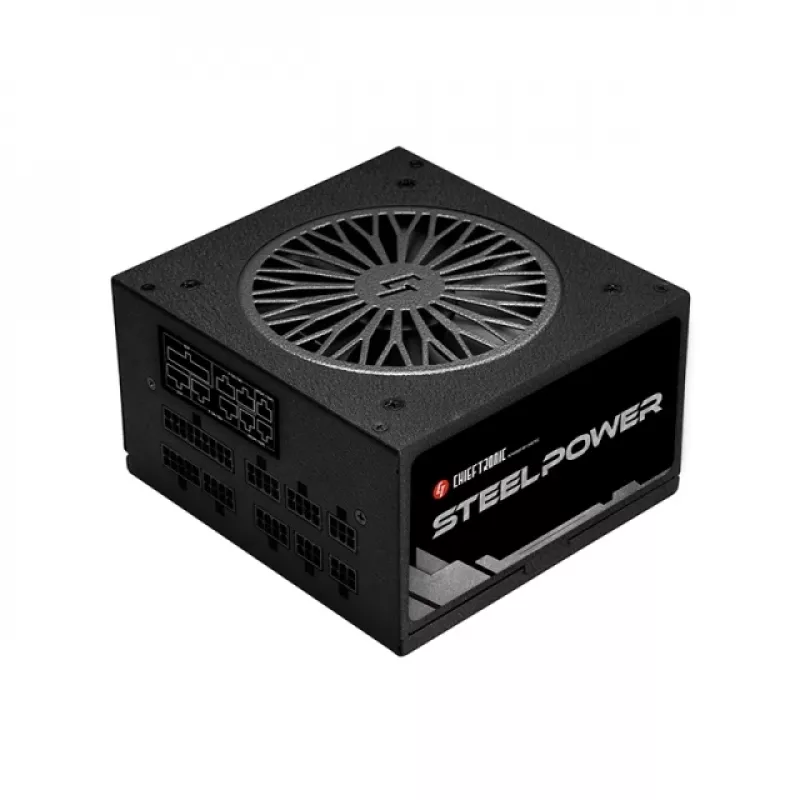

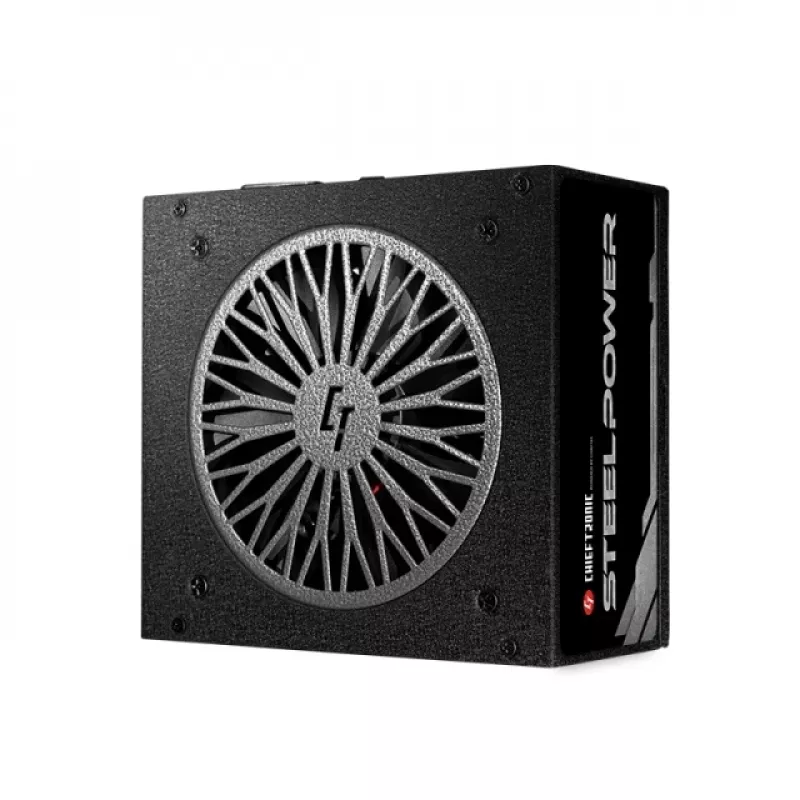

The Chieftec BDK-650FC is a 650 W power supply unit intended for desktop PCs and server builds. It combines 80 PLUS Bronze efficiency with Japanese capacitors, half-bridge LLC converters and DC-DC technology to provide stable voltage output and low ripple. The compact PSU uses a high power-density design in a 140 mm long housing and is cooled by a quiet 120 mm FDB fan; the unit comes in a rugged black finish and supports fully modular cable management.

Advantages

The BDK-650FC offers tight voltage regulation and reduced electrical noise through half-bridge LLC and DC-DC circuitry together with premium Japanese capacitors. Its 80 PLUS Bronze certification ensures good energy efficiency across typical PC loads, while the fully modular cabling and compact 14 cm housing simplify installation and cable routing. A 120 mm fluid-dynamic bearing fan provides effective, low-noise cooling.

Suitable for

• Mainstream gaming PCs
• Home and small office desktops
• Entry-level workstation or server systems
• Systems requiring efficient, modular power delivery

Key specifications

• Total power: 650 W
• Motherboard connector: 20+4 pin ATX
• Efficiency certification: 80 PLUS Bronze

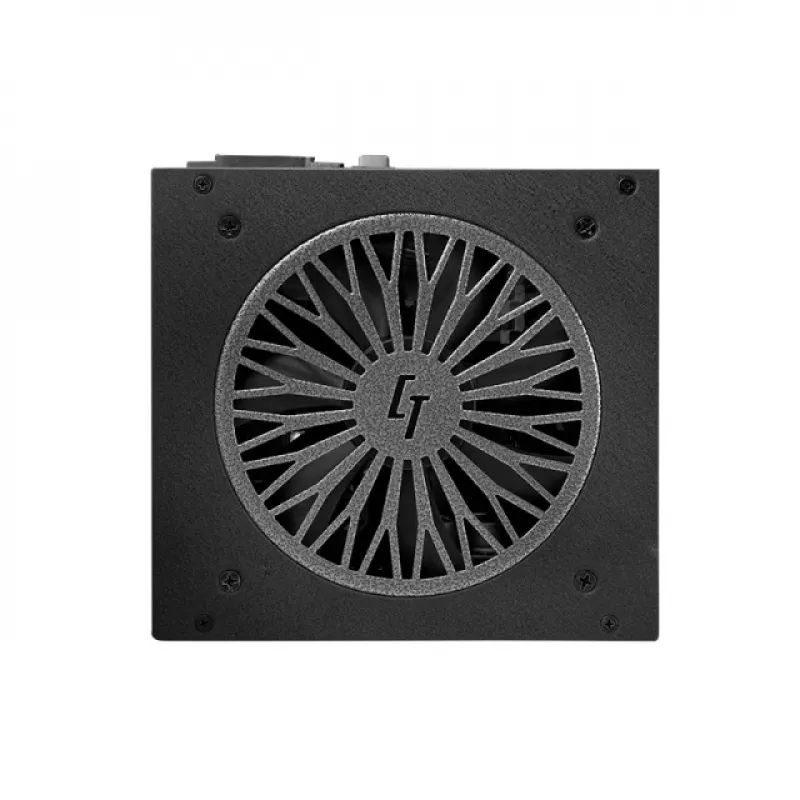

• Fan diameter: 120 mm (FDB)

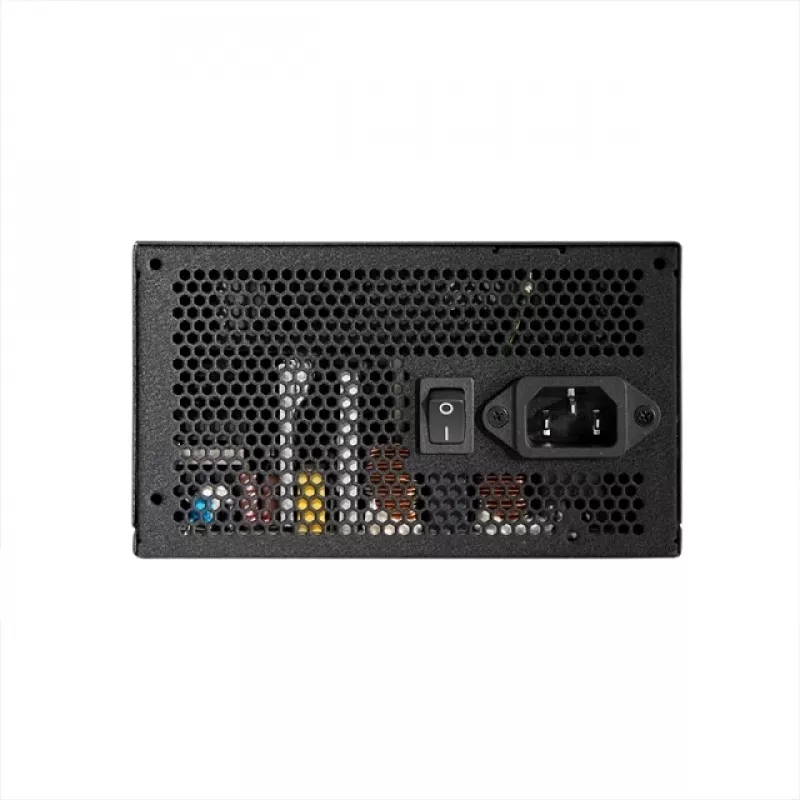

• AC input voltage: 100–240 V, 47–63 Hz
• Weight: 1.65 kg
• Colour: Black
• Form factor: compact 140 mm length housing

How to use

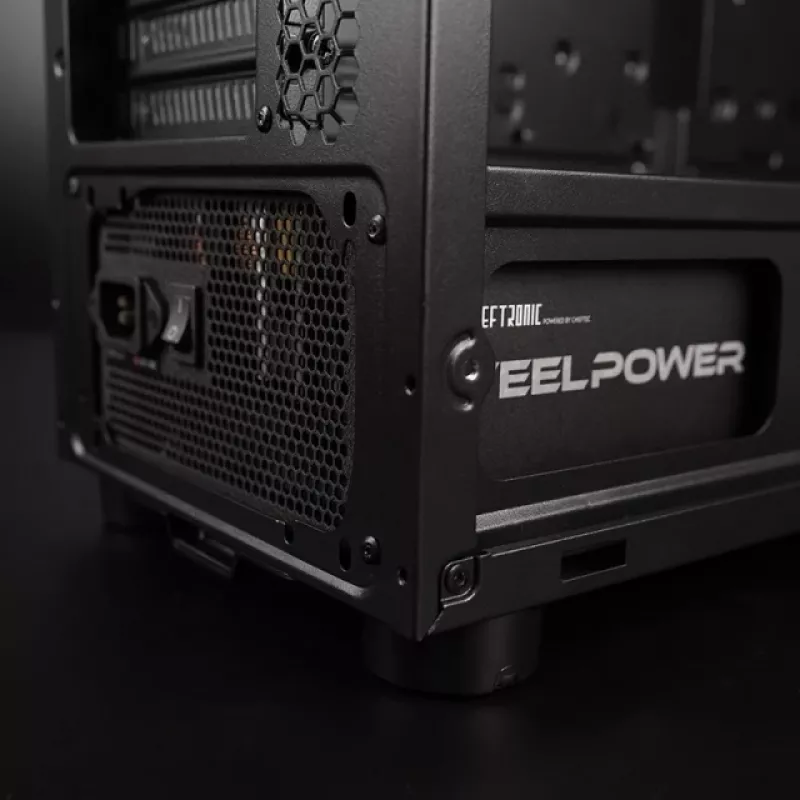

Install the Chieftec BDK-650FC into a compatible ATX case following standard PSU mounting orientation and secure it with the supplied screws. Connect the 20+4 pin ATX cable to the motherboard and attach modular cables for CPU, GPU and storage devices as required. Ensure AC mains voltage is within the specified 100–240 V range and power on the system; the PSU will regulate voltages automatically during operation.

Recommendations

For reliable operation, use the BDK-650FC with systems whose combined estimated power draw remains comfortably below 650 W. Maintain unobstructed airflow around the 120 mm fan, periodically clean dust from the fan and ventilation openings, and use quality modular cable routing to minimise airflow blockage and improve system cooling.
