Alimentatore Chieftec Photon 750 W 24-Pin ATX PS/2 nero

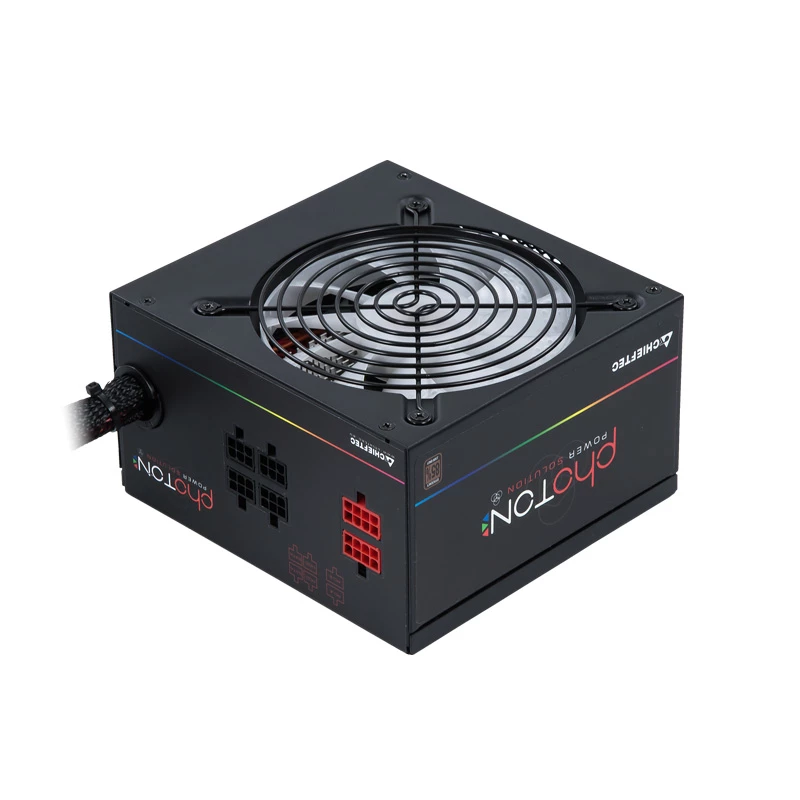

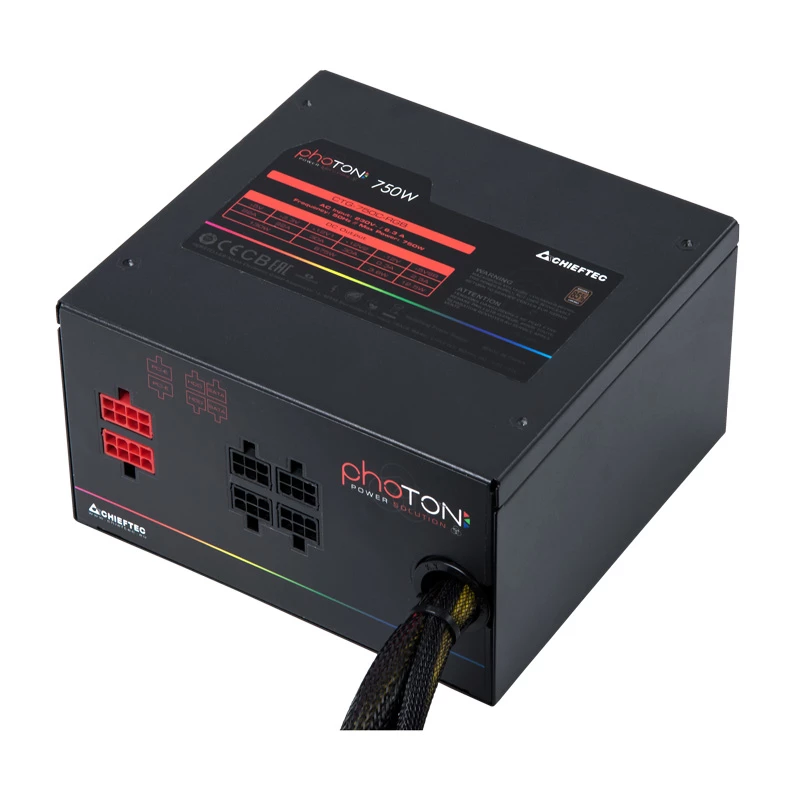

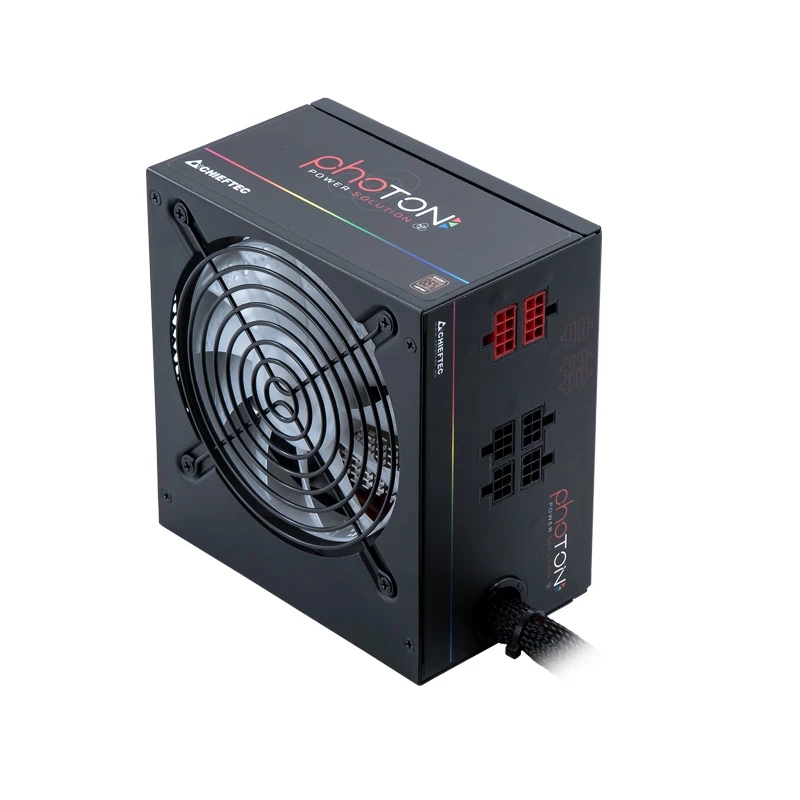

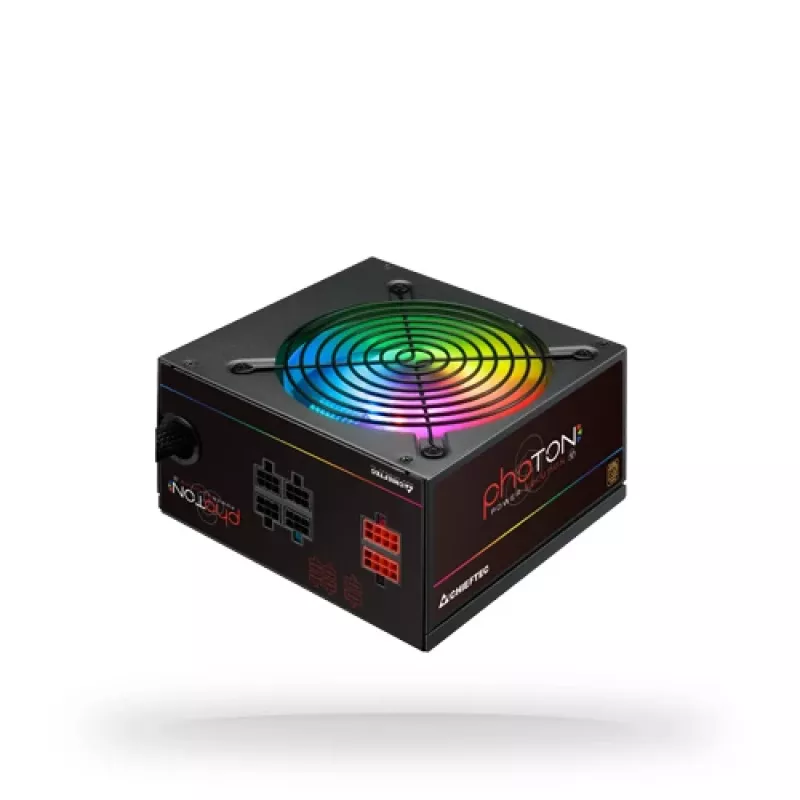

The Chieftec Photon 750 W power supply unit provides reliable 750 W total power for gaming and enthusiast PC builds. It is designed for ATX motherboards, features a 24-pin ATX main connector, active cooling with a 120 mm fan, modular cables and multiple connector lengths (including a 55 cm motherboard cable and SATA cables of 150 mm and 450 mm). The unit has a compact black housing (150 mm × 140 mm × 87 mm) and an efficiency rating of 85% @230V.

Advantages

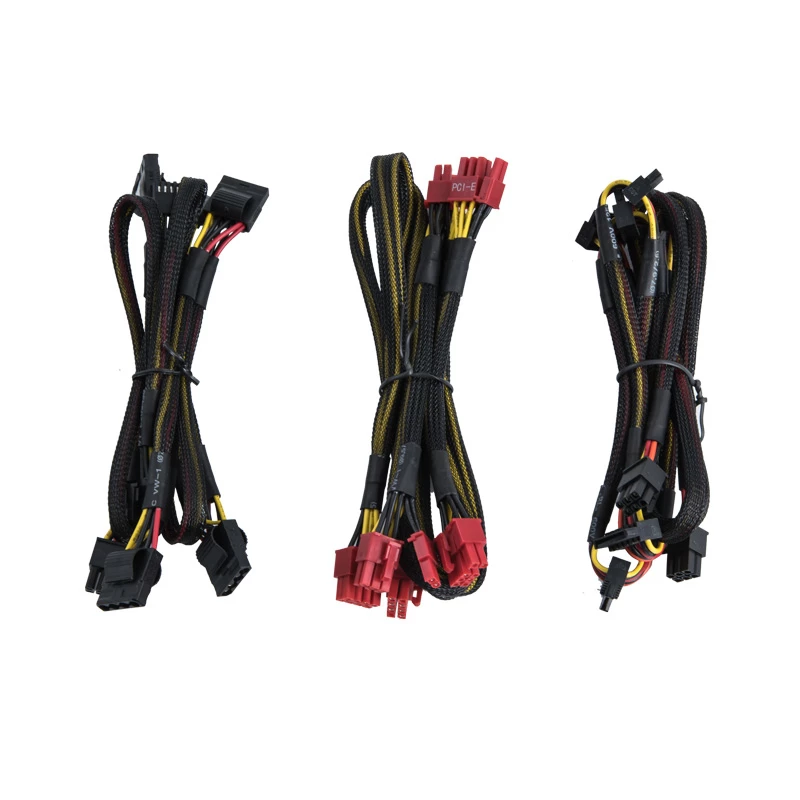

The Photon series combines RGB lighting control with solid electrical performance and modular cabling. Its +5V addressable LED connector supports synchronization with major motherboard RGB systems (ASUS Aura Sync, MSI Mystic Light Sync, ASRock Polychrome Sync and Gigabyte RGB Fusion) while onboard buttons let you switch between motherboard-controlled lighting and several predefined, motherboard-independent lighting modes. The PSU’s modular design and multiple connector lengths simplify cable management and installation.

Suitable for (tasks / use cases)

• Gaming PC builds that require 750 W continuous power
• Systems where synchronized RGB lighting is desired
• Custom builds needing modular cabling and neat cable routing
• Upgrades of ATX-desktop power supplies

Key specifications

• Total power: 750 W
• Efficiency: 85% @230V
• Motherboard connector: 24-pin ATX
• Fan diameter: 120 mm
• Weight: 2.15 kg
• Colour: Black
• Dimensions (W × D × H): 150 mm × 140 mm × 87 mm
• MPN: CTG-750C-RGB
• EAN: 0753263075925

How to use

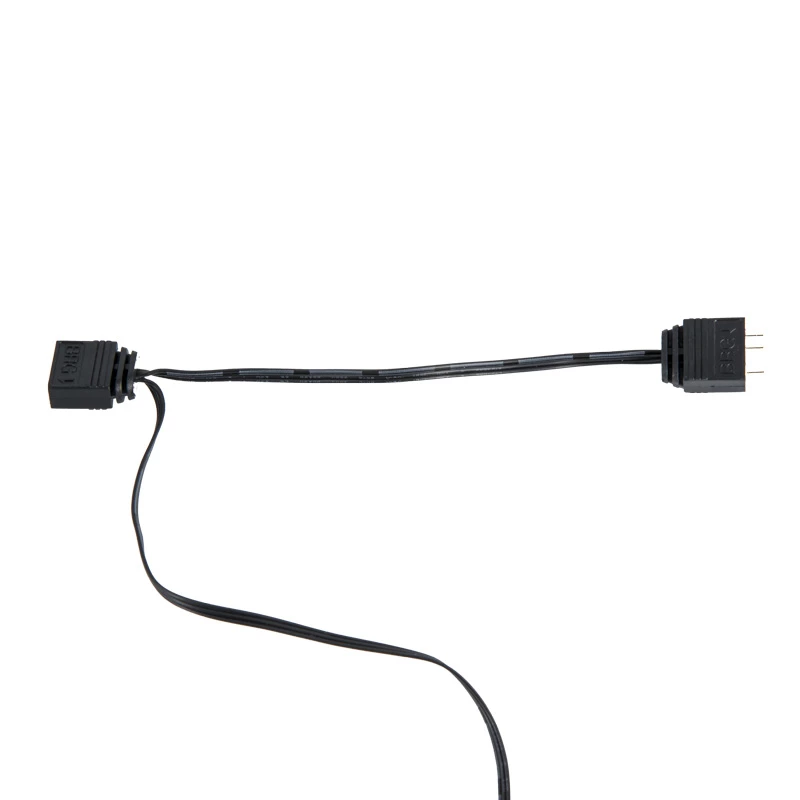

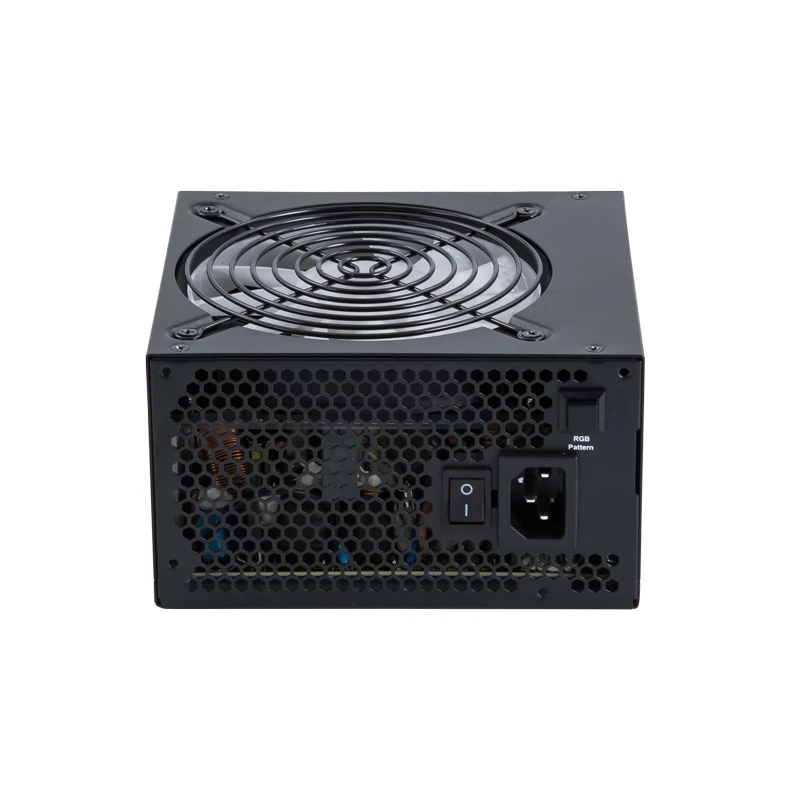

Install the PSU into an ATX-compatible case and connect the 24-pin ATX main cable to the motherboard. Attach required peripheral and SATA power connectors to drives and other components using the modular cables supplied. Ensure the fan intake and exhaust are unobstructed for proper cooling. For RGB control, connect the PSU’s +5V addressable LED header to a compatible motherboard header to enable synchronization, or use the rear-panel button and toggle switch to select built-in lighting modes.

Recommendations

Use this PSU in systems with a combined power draw within its 750 W rating, keep ventilation clear, and select motherboard sync only if your motherboard supports a +5V addressable RGB header; otherwise use the unit’s integrated lighting modes.
