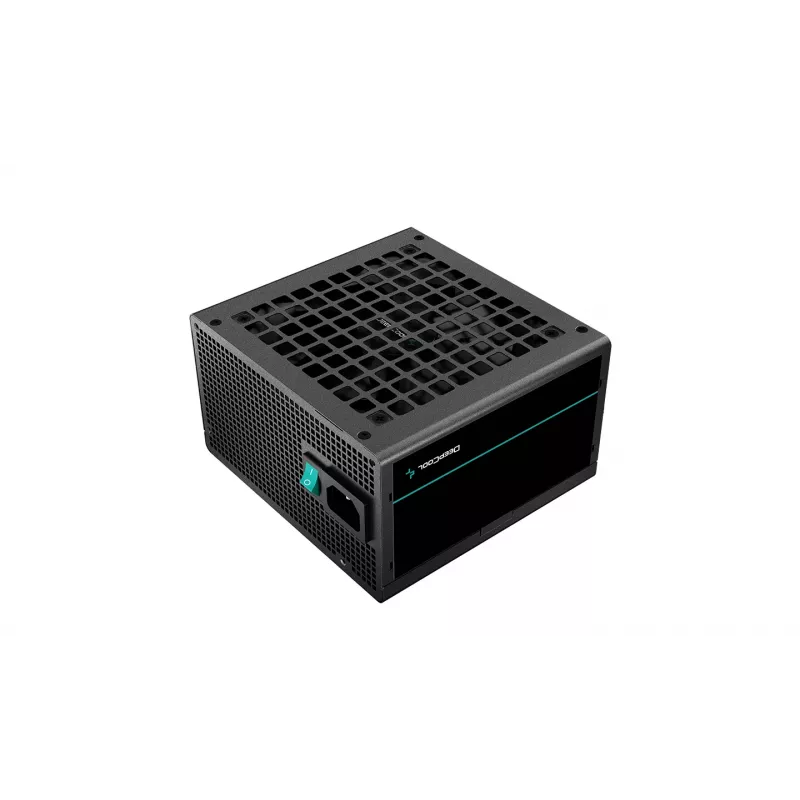

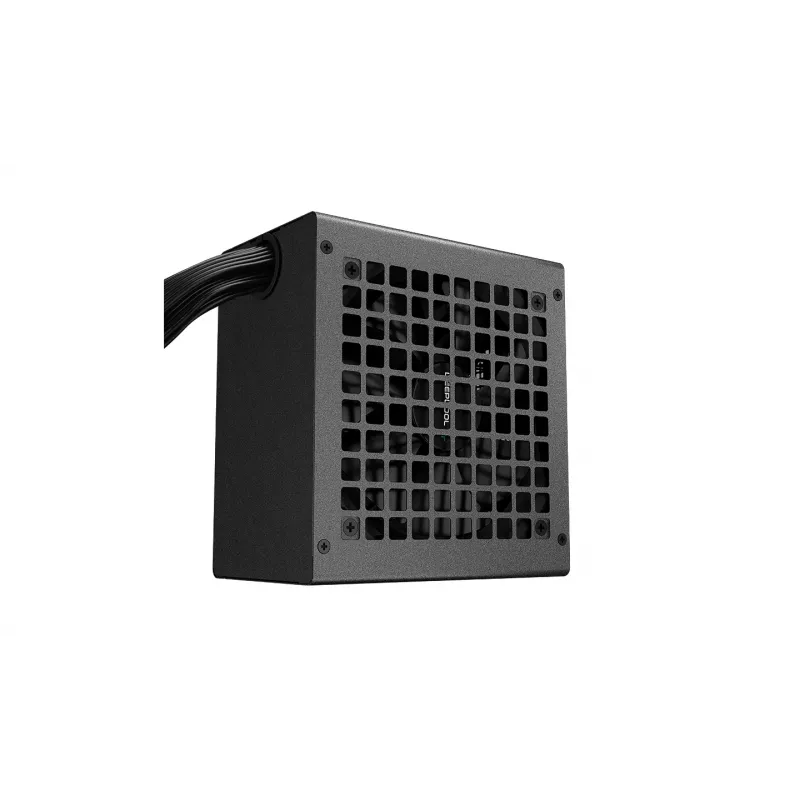

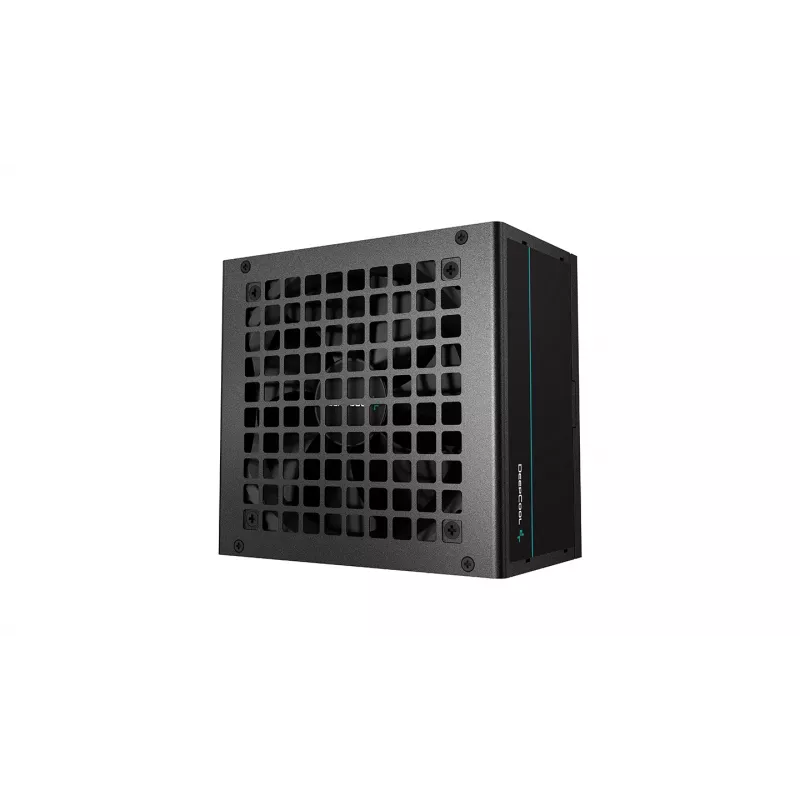

Alimentatore DeepCool PF450 450 W

The DeepCool PF450 450 W power supply unit delivers stable power for desktop PCs with 80 PLUS White (230V EU Standard) efficiency. Rated at 450 W total output, it accepts 200–240 V AC at 50 Hz and uses an ATX form factor with a 120 mm cooling fan. Flat black fixed cables and compact dimensions make it suitable for standard system builds where reliable, efficient power delivery is required.

Advantages

The PF450 is certified to 80 PLUS 230V EU Standard, providing about 85% efficiency at typical load and reducing energy waste and operating temperature. A 120 mm hydraulic/fluid bearing fan is balanced for low-noise operation and extended service life. Fixed flat black cables allow easier routing and save internal space, while built-in protections guard against overpower, overvoltage and short circuits.

Suitable for

• Basic and office desktop PCs
• Compact ATX system builds
• Upgrades requiring a reliable 450 W PSU

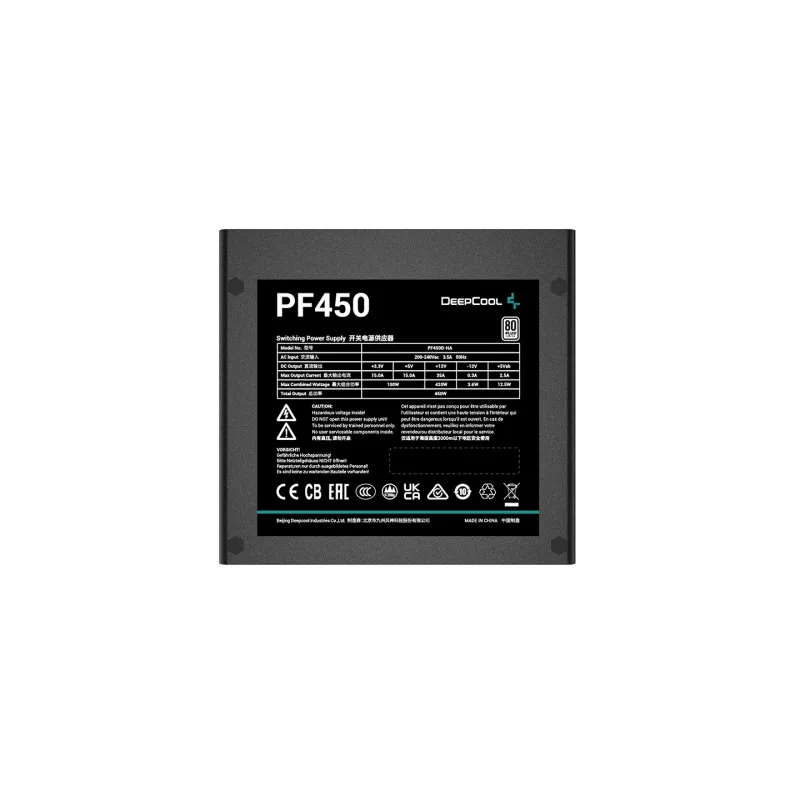

Key specifications

• Total power: 450 W
• Efficiency: 85% (80 PLUS White / 230V EU Standard)
• Input: 200–240 V AC, 50 Hz
• Motherboard connector: 20+4 pin ATX (cable length ~55 cm)
• SATA power cable length: ~450 mm

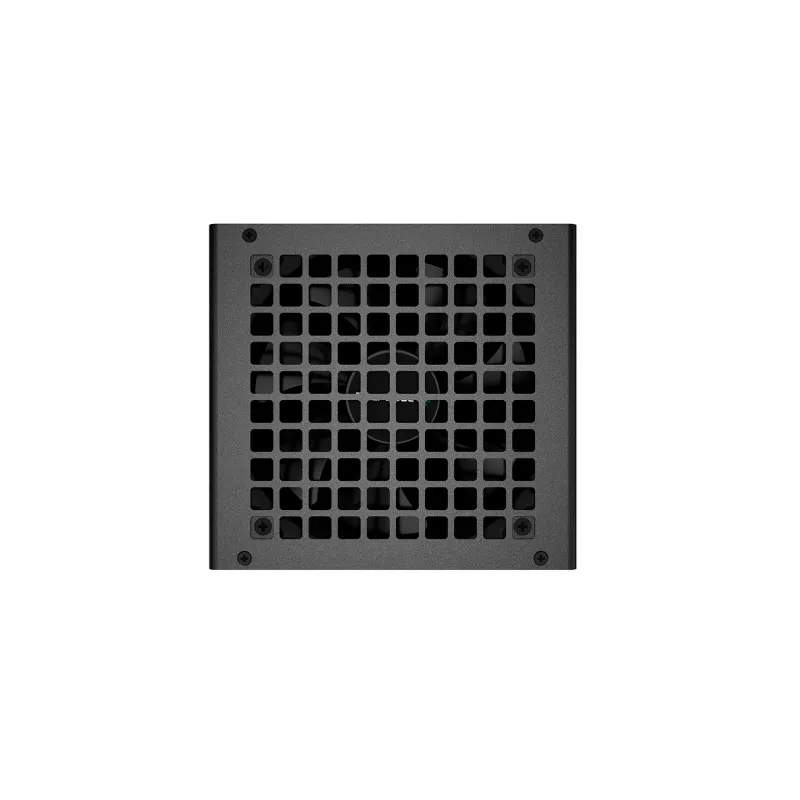

• Fan diameter: 120 mm (hydraulic/fluid bearing)
• Colour: Black
• Dimensions (W x D x H): 150 x 40 x 86 mm

How to use

Install the PF450 into a compatible ATX power supply bay following your PC case and motherboard instructions. Connect the 20+4 pin ATX connector to the motherboard and use the provided SATA and peripheral cables for storage devices. Ensure the input voltage is set to the correct 200–240 V supply and secure all connections before powering on the system.

Recommendations

Use this PSU in systems with total component power requirements within the 450 W rating and allow for adequate case ventilation. Periodically check cable routing and dust accumulation on the 120 mm fan to maintain cooling performance and reliability.
