Dissipatore a liquido All-in-One DeepCool LS720 WH 12 cm 500–2250 rpm 32,9 dB

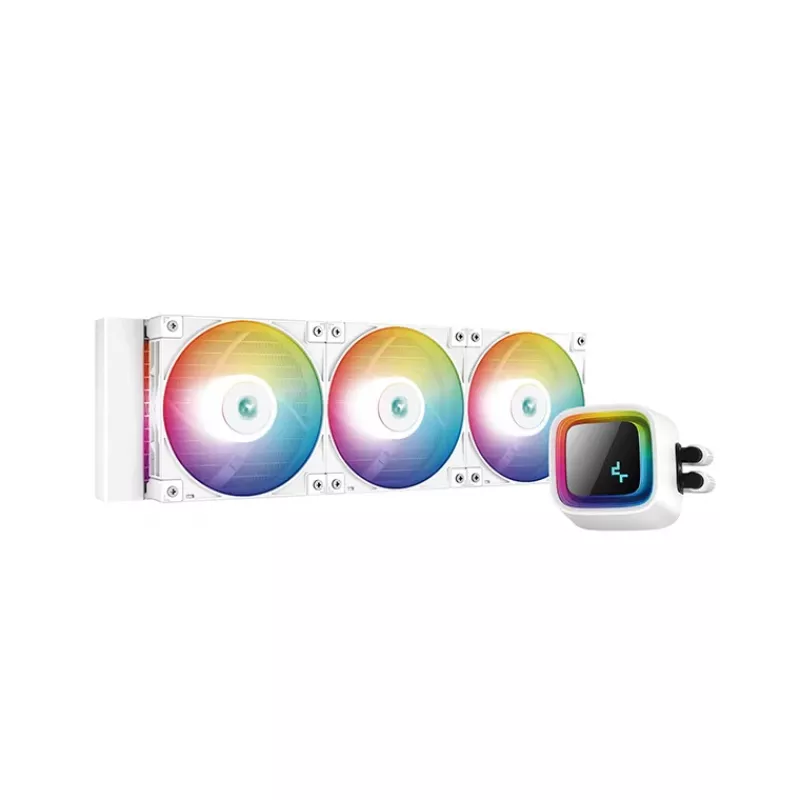

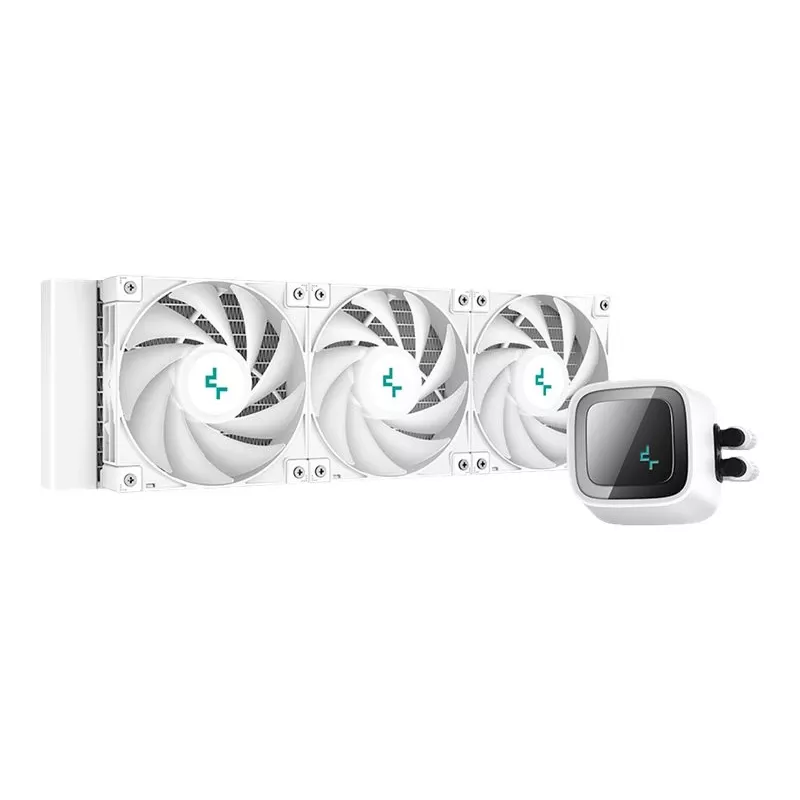

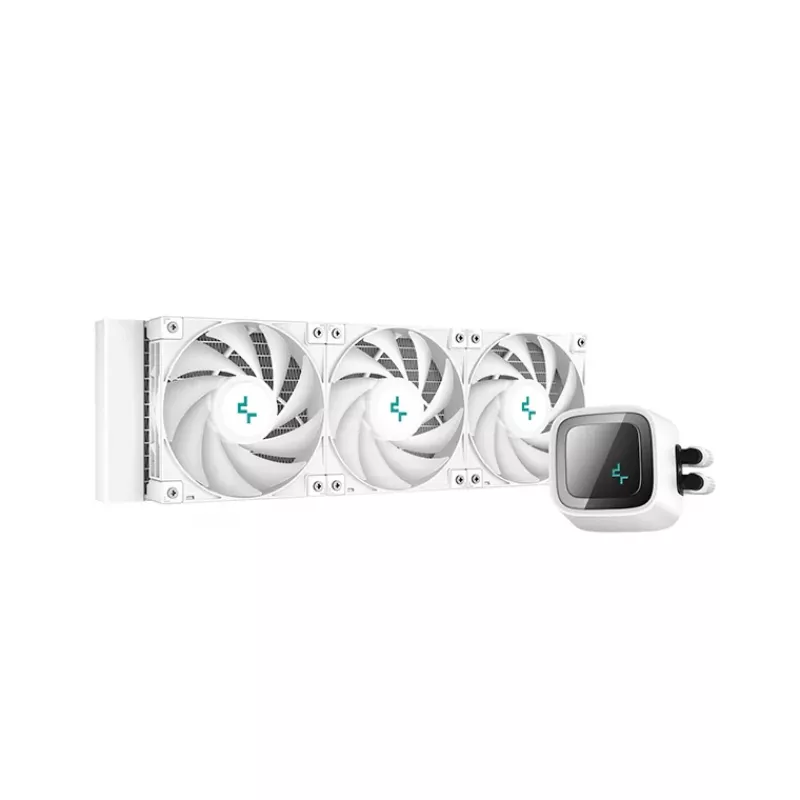

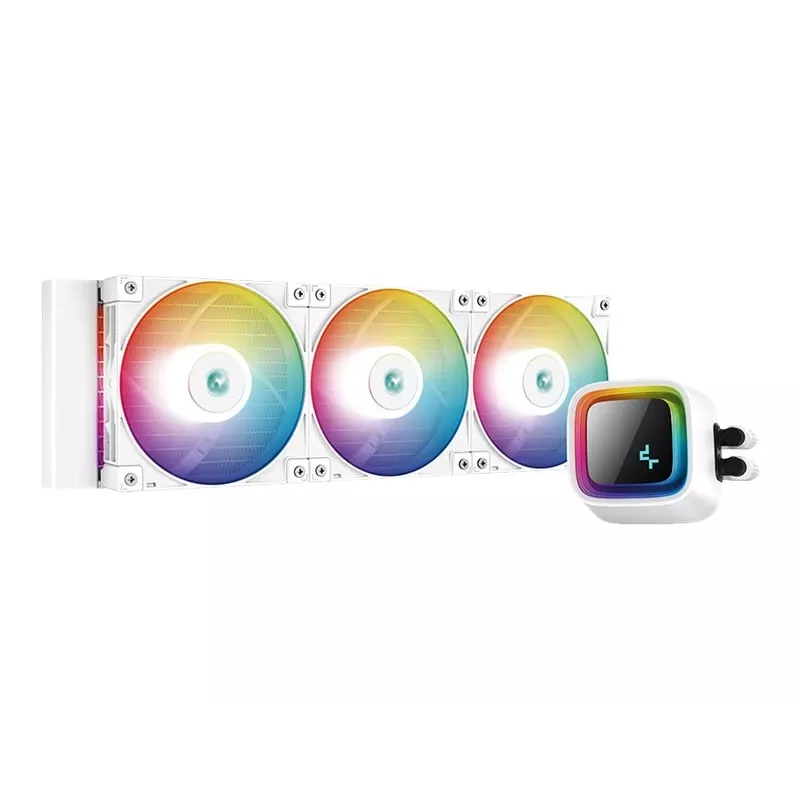

The DeepCool LS720 WH is an all-in-one liquid CPU cooler with a 360 mm radiator, three 120 mm FC120 A-RGB PWM fans and an infinity mirror pump cap. Designed for mainstream and high-performance desktop builds, it combines a 4th generation water pump with a thick solid copper base to deliver effective heat transfer while maintaining a clean white appearance.

Advantages

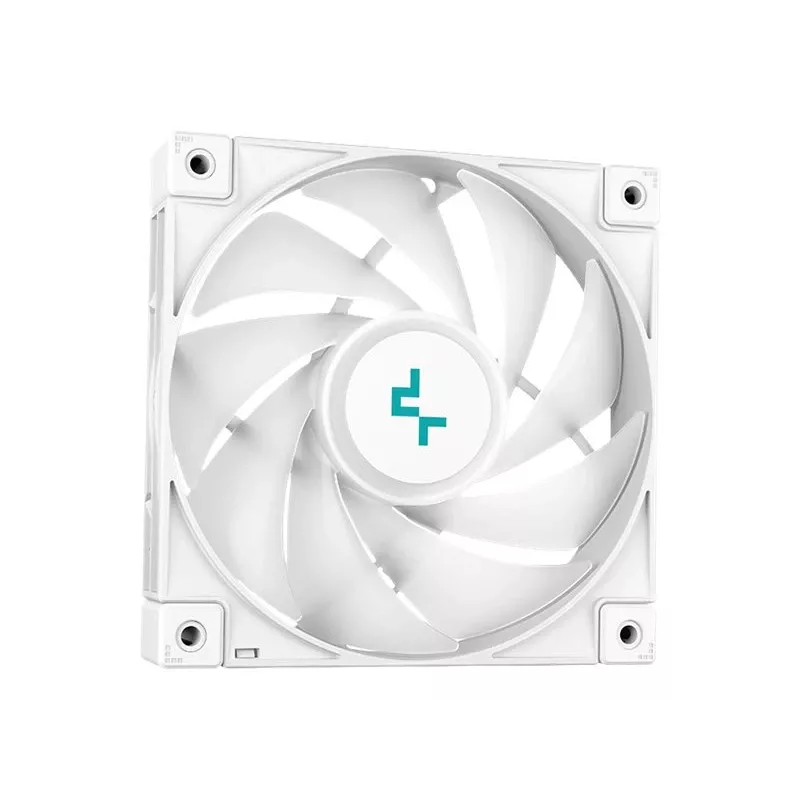

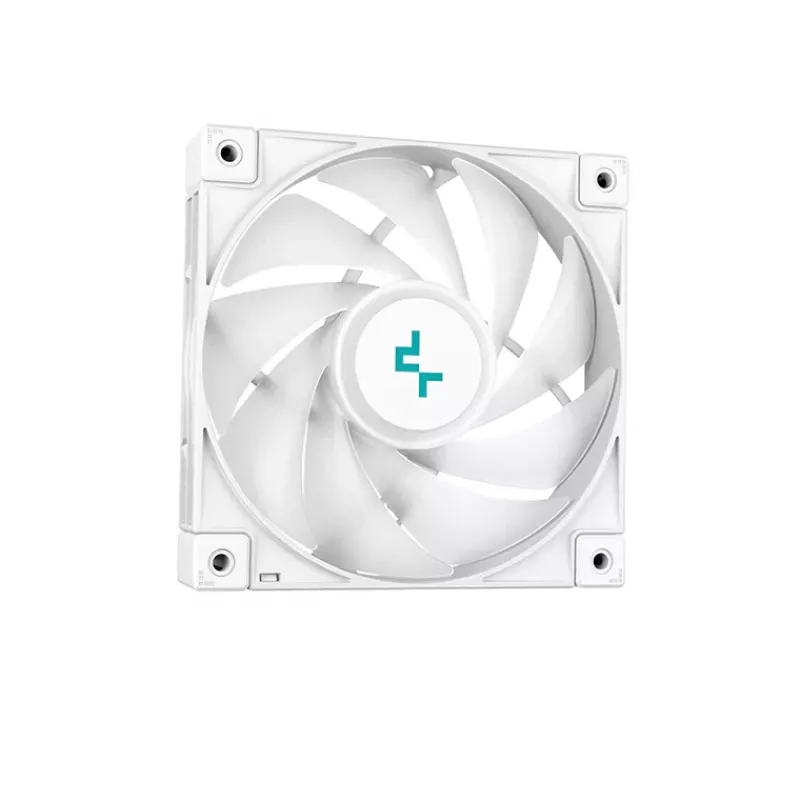

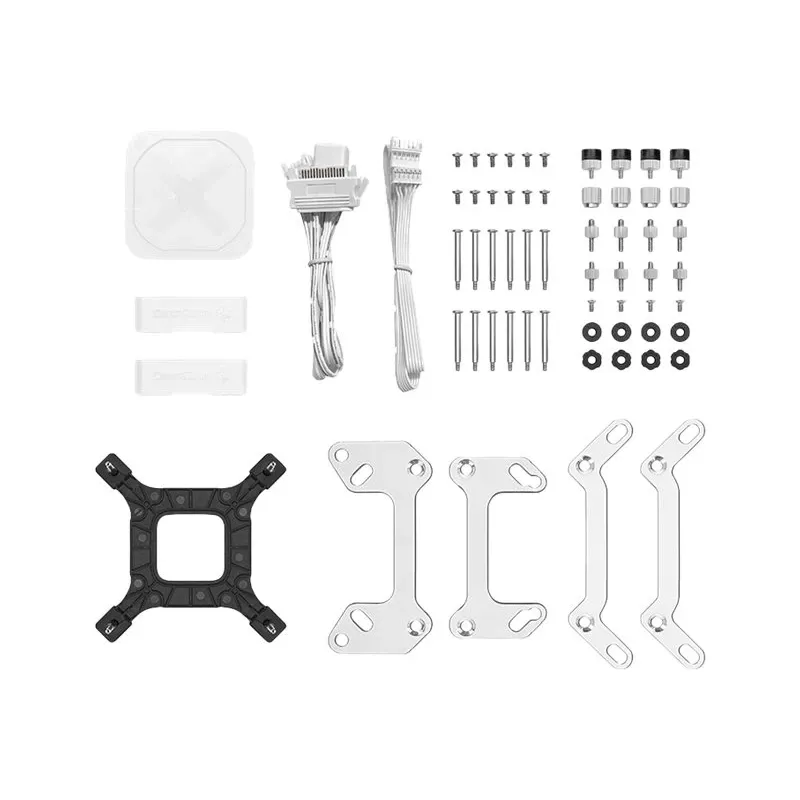

The 4th generation pump improves coolant flow with an optimized microchannel structure and a three-phase drive motor capable of up to 3100 RPM. Three FC120 fans provide enhanced static pressure and concentrated airflow with fluid dynamic bearings for quieter operation. The infinity mirror pump face offers a dual-loop lighting effect with an independently rotatable logo plate and an extra blank plate for customization. New mounting brackets simplify installation and support a wide range of Intel and AMD sockets.

Suitable for

• High-performance gaming and workstation CPUs
• Overclocked desktop processors requiring efficient liquid cooling
• Systems where a 360 mm radiator can be accommodated
• Builds that require white-themed components with A-RGB lighting

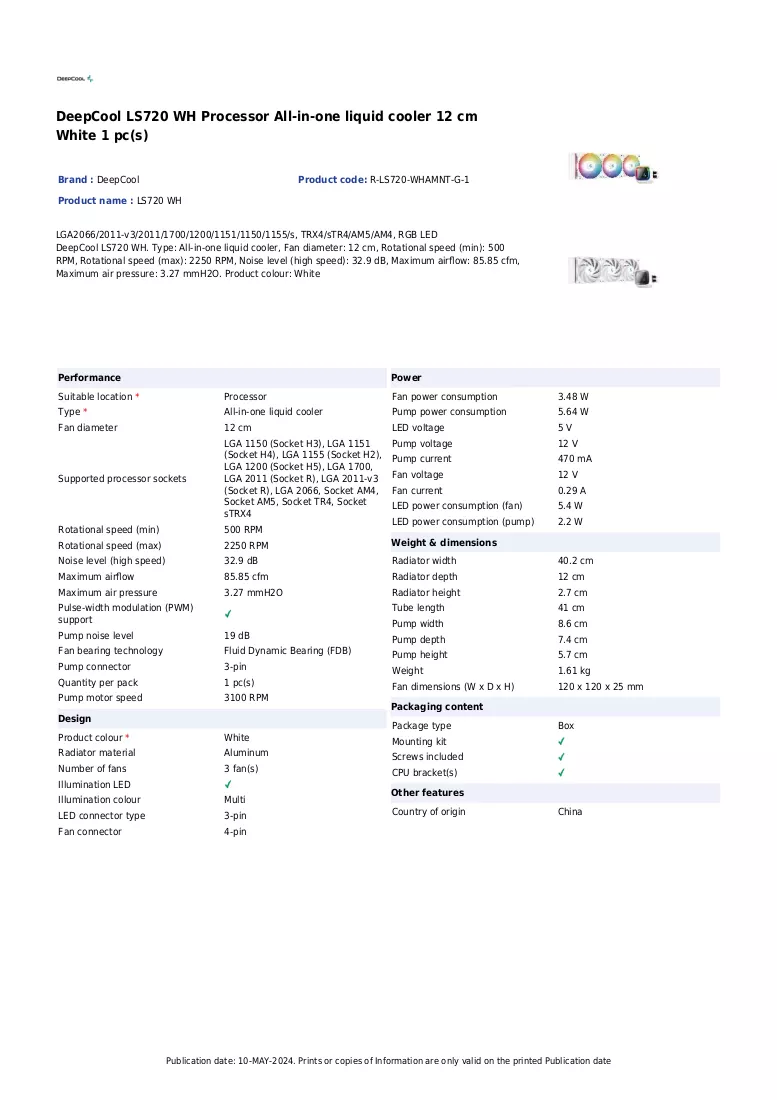

Key specifications

• Type: All-in-one liquid cooler

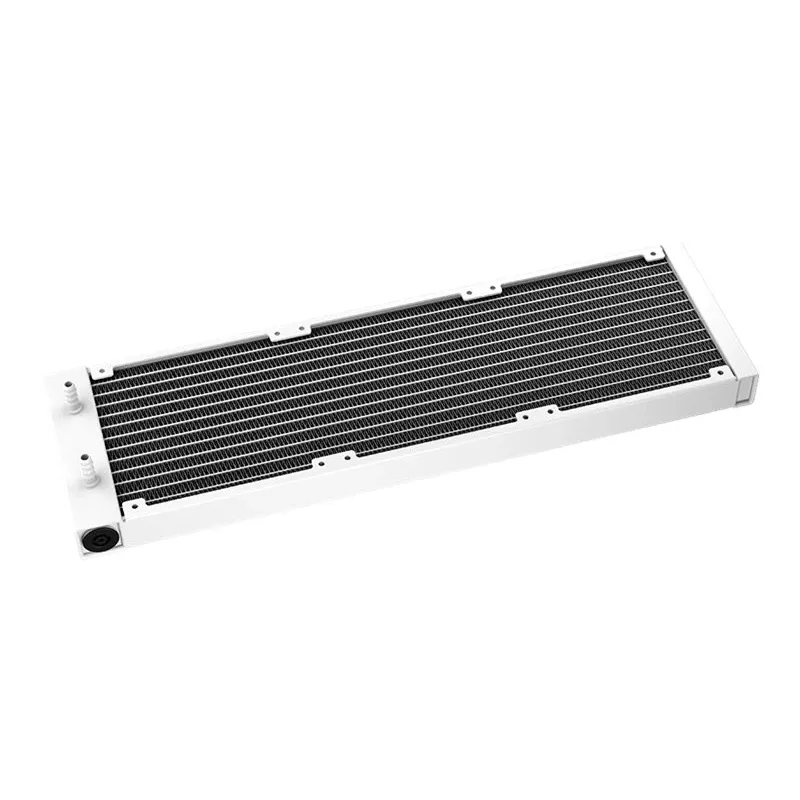

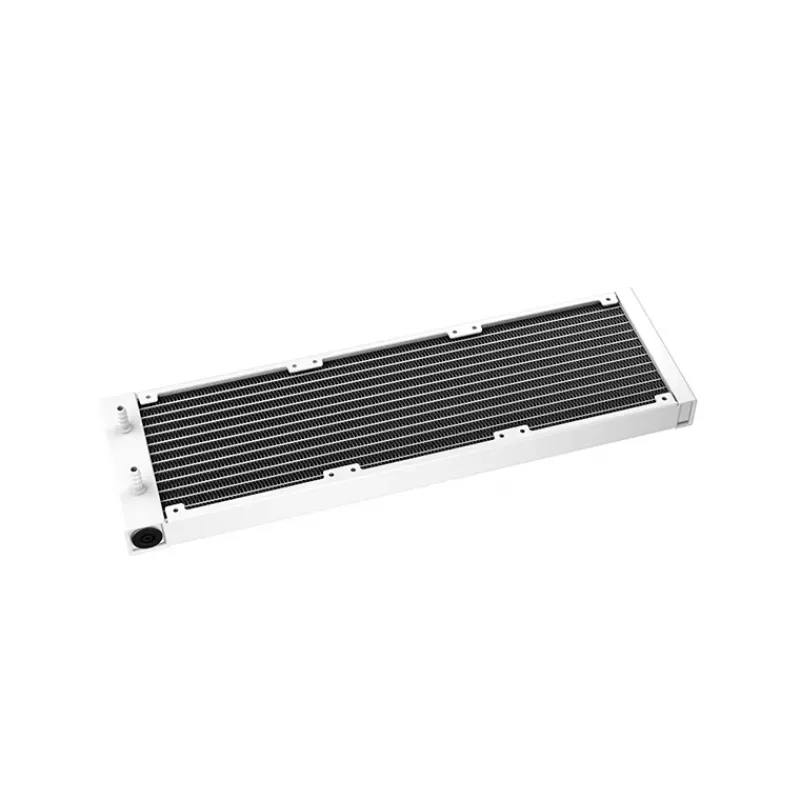

• Radiator size: 360 mm
• Fans: 3 × 120 mm FC120 A-RGB PWM
• Fan speed: 500–2250 RPM
• Maximum noise level: 32.9 dB
• Maximum airflow: 85.85 CFM
• Air pressure: 3.27 mmH2O
• Pump: 4th generation, up to 3100 RPM
• Cold plate: Thick solid copper base
• Supported sockets: LGA 1700, LGA 1200, LGA 115x series, LGA 2011/2011‑v3, LGA 2066, Socket AM4, AM5, TR4, sTRX4
• Colour: White
• Weight: 1.607 kg

How to use

Install the radiator in your case where a 360 mm unit fits, typically top or front, using the included screws. Attach the pump block to the CPU with the supplied mounting brackets matched to your Intel or AMD socket and tighten according to the manufacturer’s torque guidance. Connect the fans to the motherboard or included controller via PWM headers and plug the pump power cable to the designated header. Use the A-RGB connectors to synchronize lighting with a compatible 5V A-RGB header or leave the default Auto-RGB effect active if no controller is present.

Recommendations

For optimal cooling performance and acoustics, ensure good case airflow and mount the radiator where airflow is unobstructed. Periodically check mounting screws and cable connections. Use motherboard software or a compatible A-RGB controller to configure fan curves and lighting effects according to thermals and personal preference.
