Dissipatore Thermaltake UX200 illuminazione ARGB

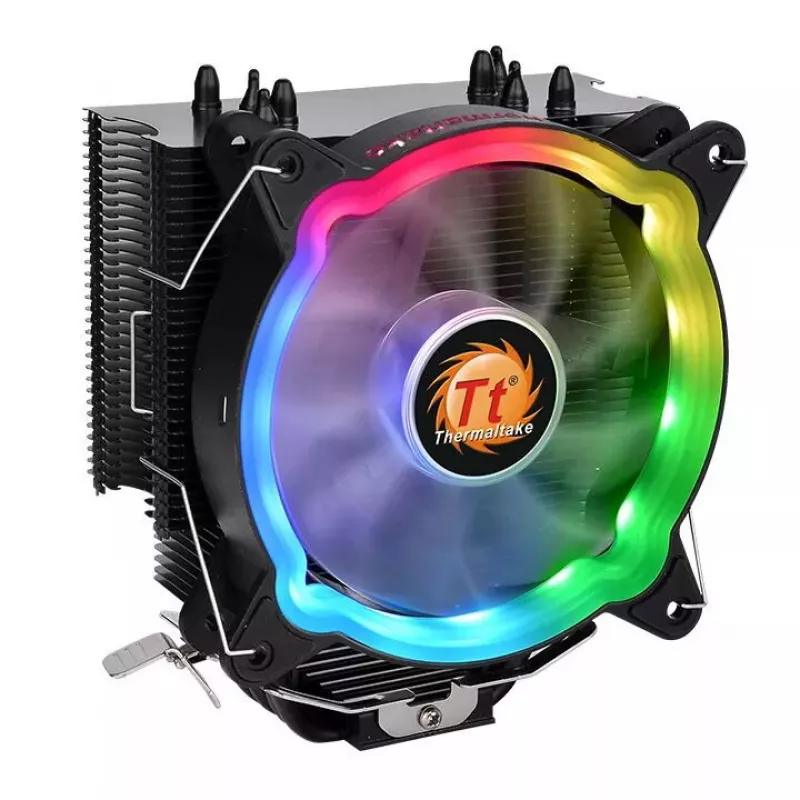

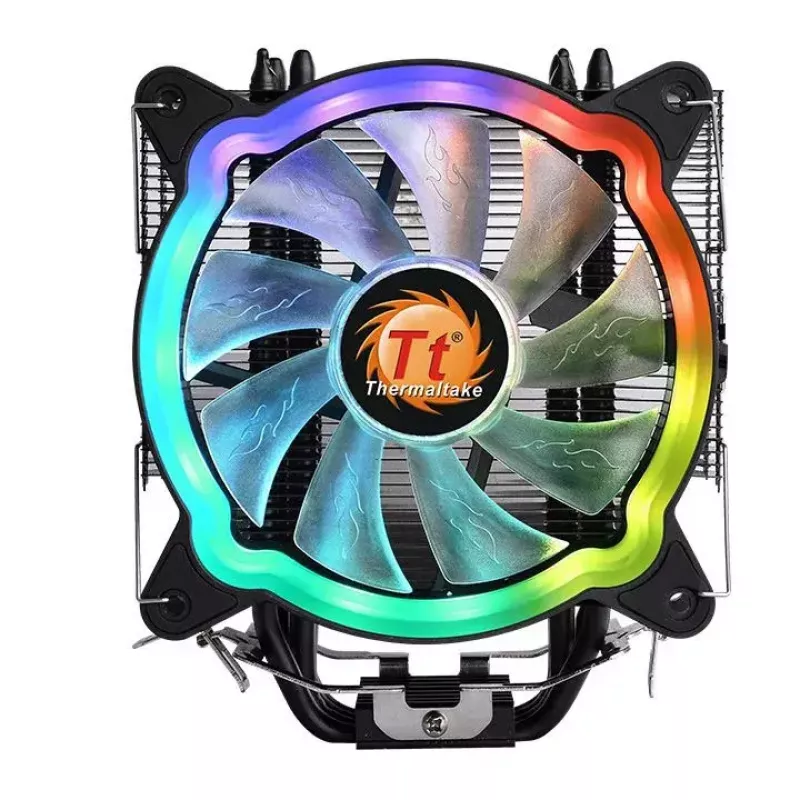

Thermaltake UX200 ARGB Lighting is a 120 mm CPU cooler with U-shape copper heatpipes and a high-airflow fan designed for universal Intel and AMD socket compatibility. The cooler integrates 15 addressable ARGB LEDs with 16.8 million colors and supports synchronization with motherboards that provide a 5V addressable RGB header.

Advantages

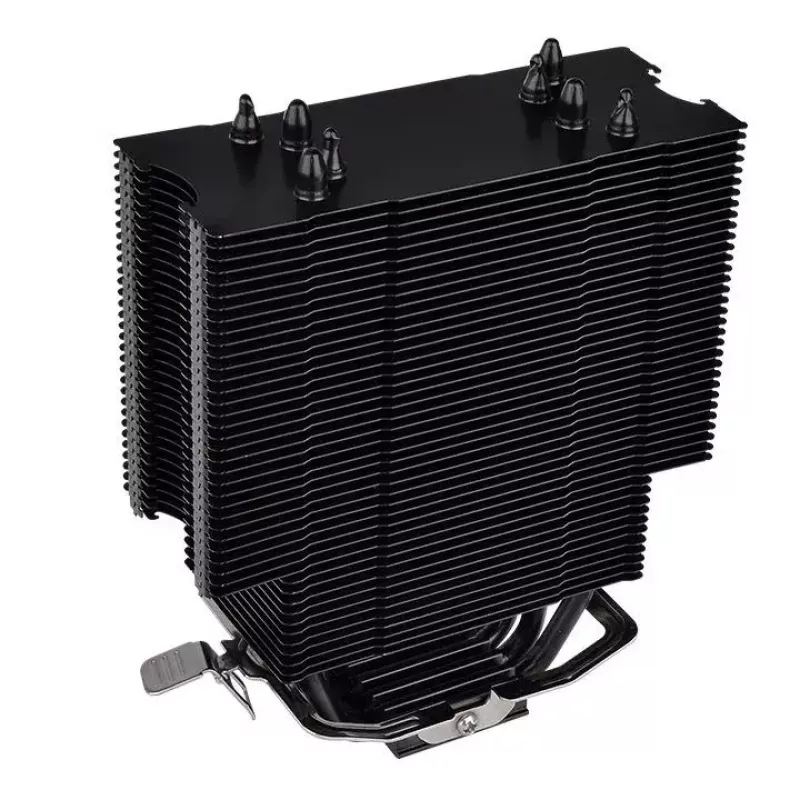

The UX200 combines targeted airflow through an aluminum heatsink and U-shaped copper heatpipes with a hydraulic bearing fan that reduces operating noise and improves longevity. Its built-in addressable RGB lighting offers customizable effects and can be synced with ASUS Aura Sync, ASRock RGB LED, GIGABYTE RGB Fusion and MSI Mystic Light. The included mounting kit and all-in-one backplate simplify installation across the latest Intel and AMD sockets.

Suitable for

• Casing builds requiring a compact 120 mm CPU cooler
• Systems with Intel or AMD processors listed in supported sockets (LGA 775 through LGA 1151 and AM2–AM4 series)
• PCs where quiet operation and RGB lighting synchronization are desired

Key specifications

• Type: Cooler
• Fan diameter: 120 mm
• Fan speed: 300–1500 RPM
• Maximum air pressure: 1.18 mmH2O
• Bearing type: Hydraulic bearing
• RGB: 15 addressable LEDs, 16.8 million colors, 5V ARGB header support

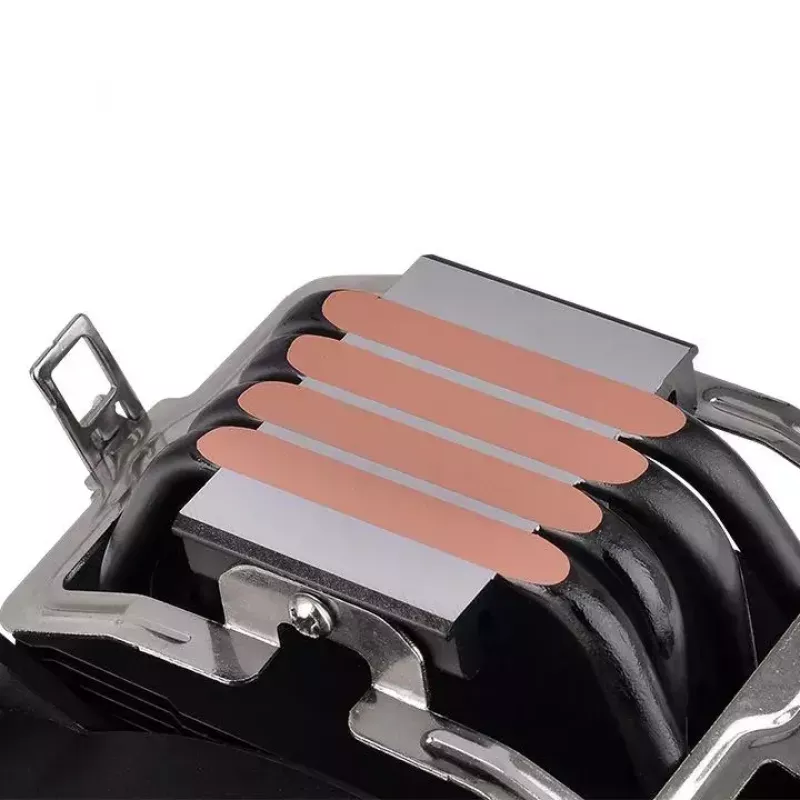

• Heatpipes: U-shape copper heatpipes
• Colour: Black
• Weight: 0.77 kg
• Supported sockets: Socket FM2, FM1, AM4, AM3+, AM3, AM2+, AM2, LGA 775, LGA 1156, LGA 1155, LGA 1151, LGA 1150

How to use

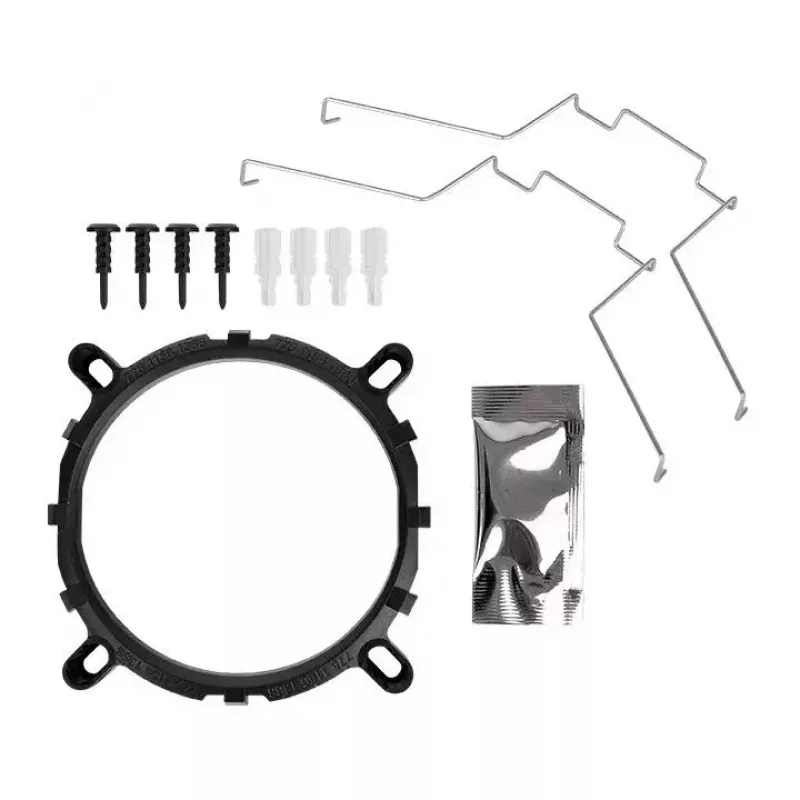

Mount the cooler using the supplied all-in-one backplate and the included mounting kit, following the motherboard and CPU socket-specific orientation. Connect the fan power cable to the CPU fan header and plug the ARGB connector into a 5V addressable RGB header on compatible motherboards to enable lighting control. Apply thermal paste between the CPU heatspreader and the cooler base if not pre-applied, then secure the cooler evenly to ensure contact with the CPU.

Recommendations

For best results, ensure your motherboard supports a 5V ARGB (addressable) header to use full lighting control. Keep the cooler and case airflow unobstructed, and periodically check the mounting screws and fan for dust buildup to maintain cooling performance and reduce noise.
