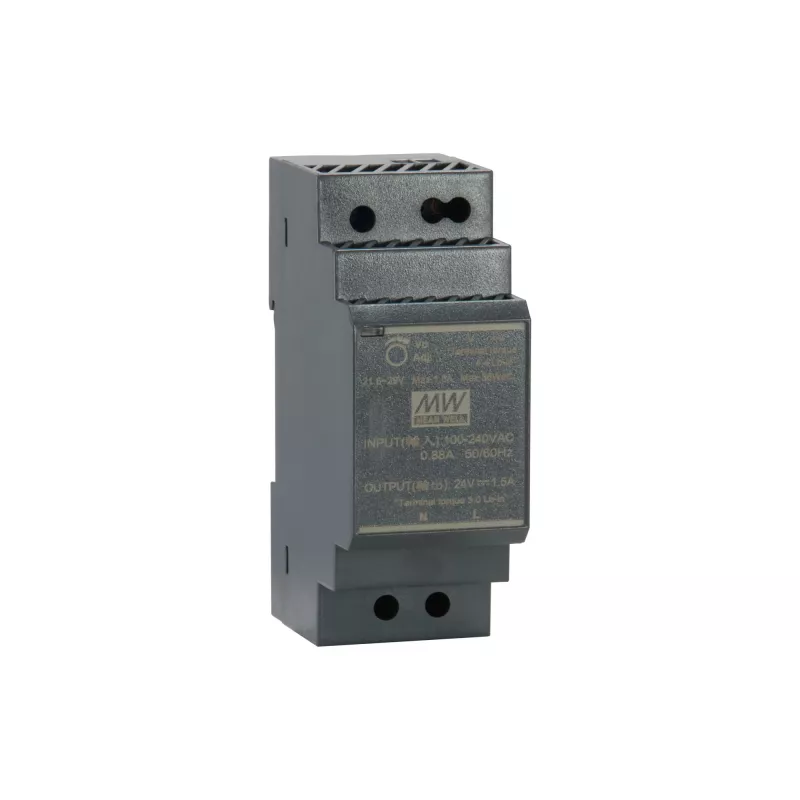

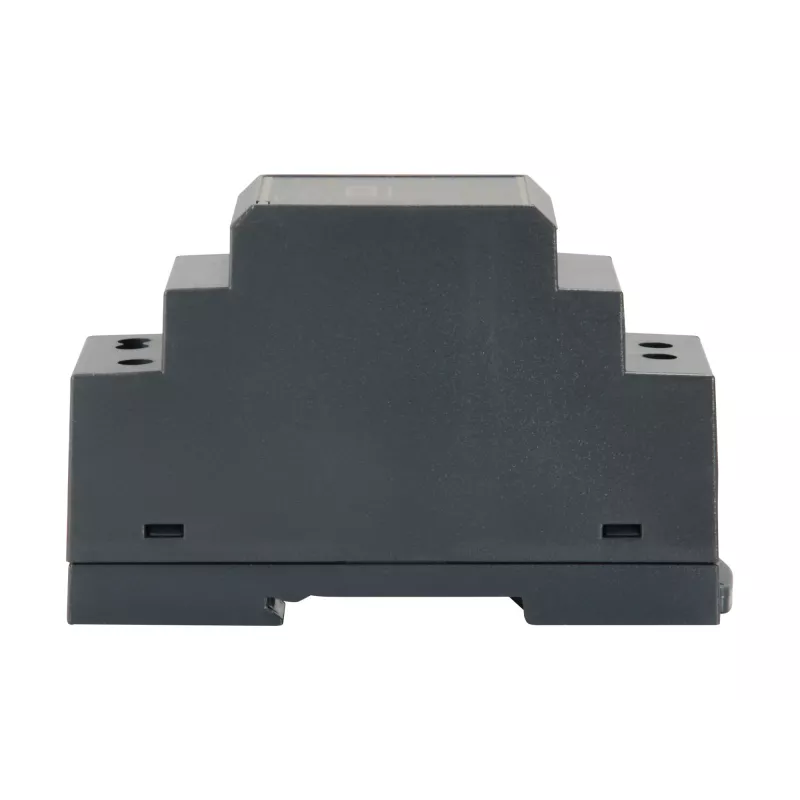

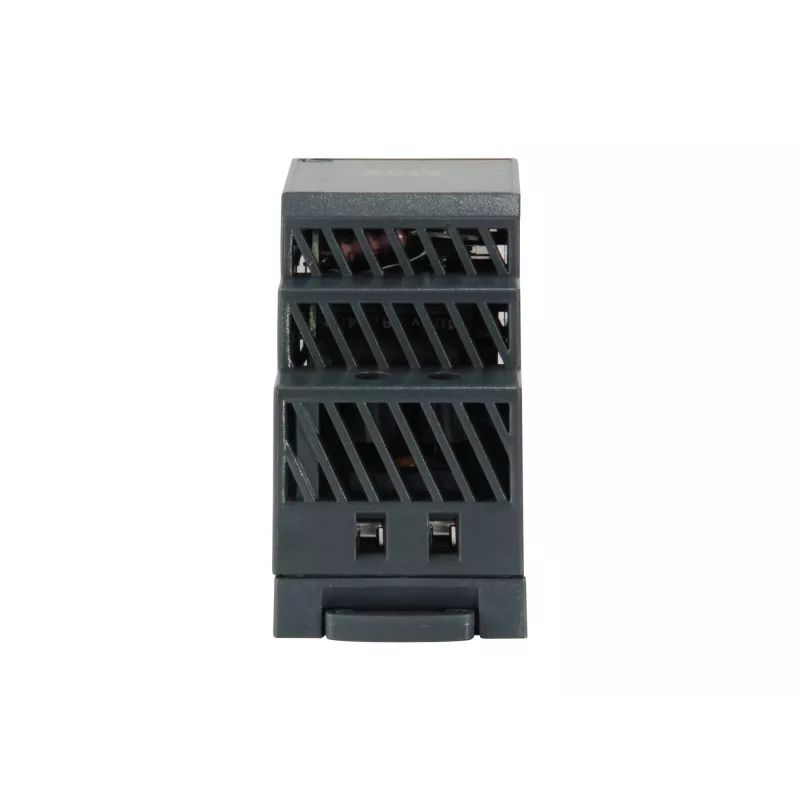

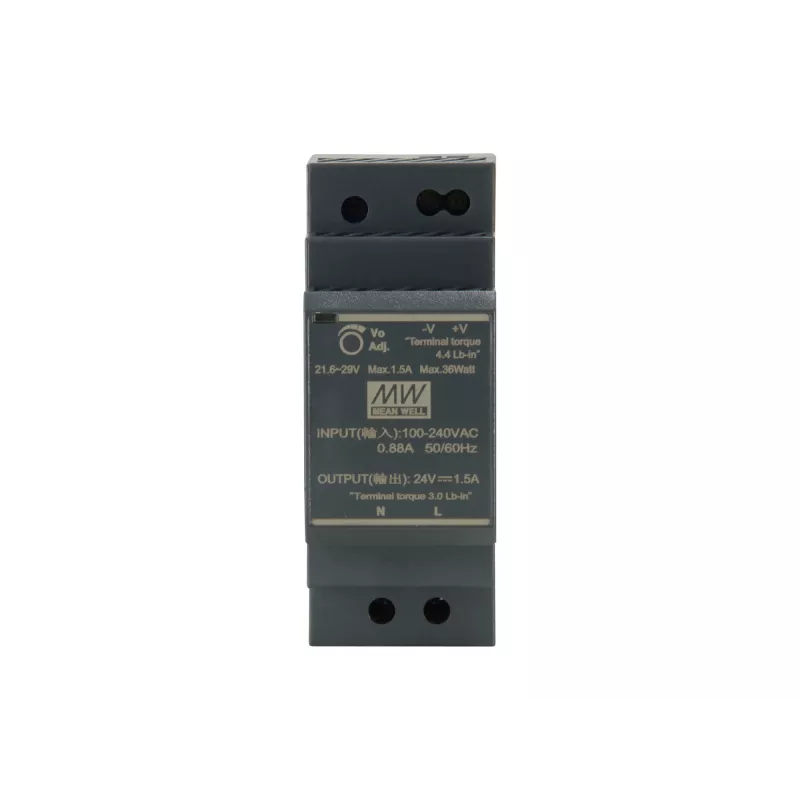

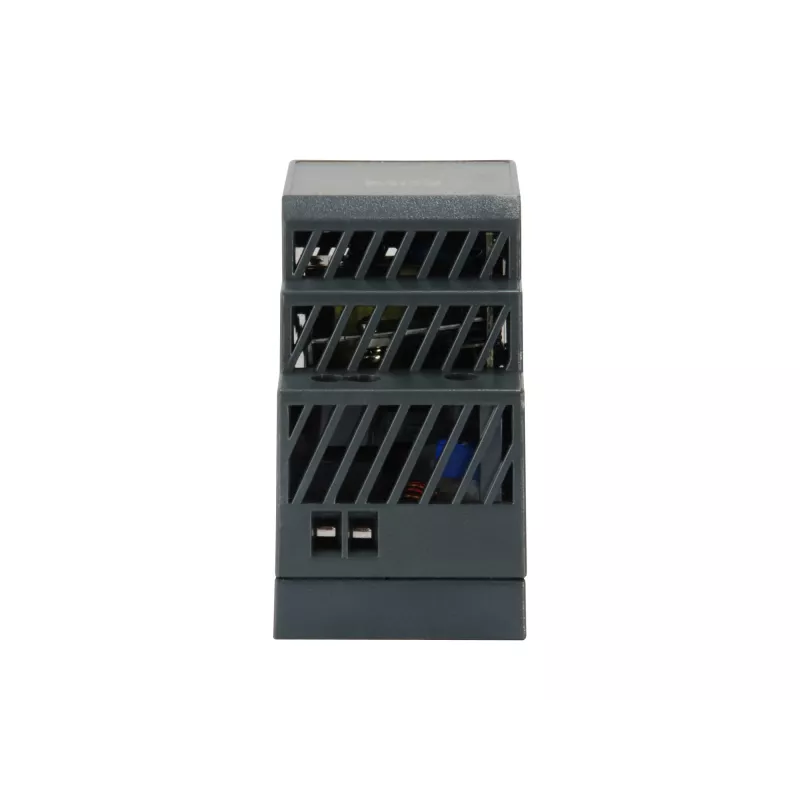

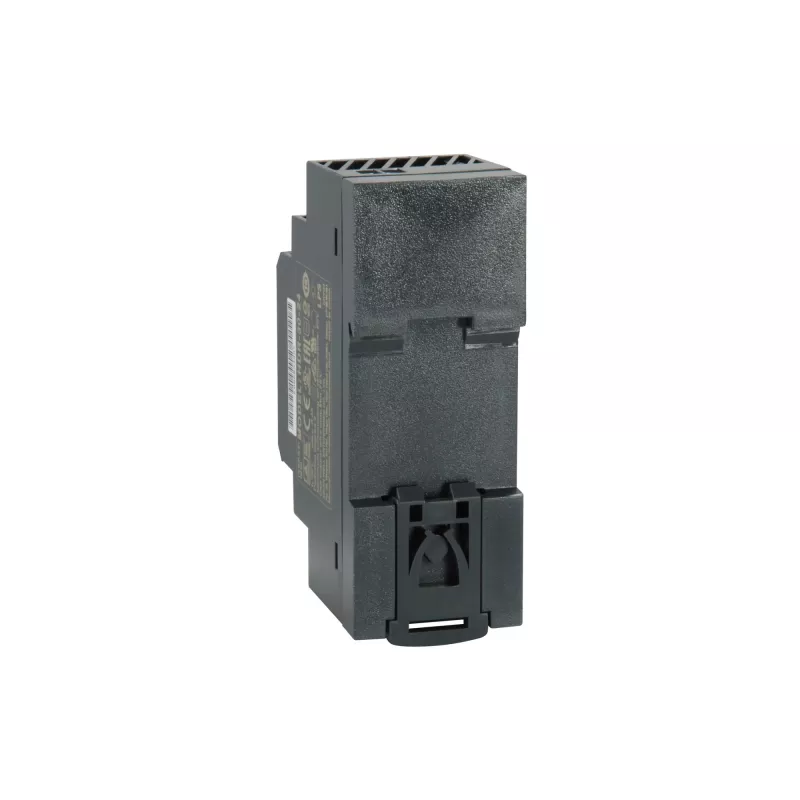

Alimentatore industriale LevelOne 24 V DC, 30 W, guida DIN

The LevelOne 24V DC Industrial Power Supply POW-2411 is a DIN-rail mount unit designed for reliable operation in harsh industrial environments. It accepts a wide AC input range and provides a nominal 24V DC output with a total continuous power of 30W and a short-term peak power of 36W. The compact housing and conformity to key safety standards make this power supply suitable for control cabinets and machinery installations.

Advantages

The POW-2411 offers a universal AC input (85–264V) and is rated to run at full load across a wide ambient temperature range (−30 °C to 70 °C) without additional cooling. It features a high MTBF (968,100 hours) for extended service life and carries recognized safety certifications (UL60950-1, TUV EN61558-2-16). Its slim DIN-rail form factor (90 × 54.5 × 35 mm) simplifies panel and cabinet integration.

Suitable for

• Industrial control panels and automation systems
• Machine and equipment power distribution
• DIN-rail installations in cabinets and enclosures
• Environments requiring wide input voltage tolerance and temperature resilience

Key specifications

• Output voltage: 24V DC
• Continuous output power: 30W
• Peak power: 36W
• AC input voltage range: 85–264V AC
• Operating temperature: −30 °C to 70 °C at full load
• MTBF: 968,100 hours
• Mounting: DIN-rail
• Dimensions: 90 × 54.5 × 35 mm
• Safety standards: UL60950-1, TUV EN61558-2-16
• Brand: LEVELONE, Model/MPN: POW-2411, EAN: 4015867206447

How to use

Mount the unit on a standard DIN-rail inside an appropriate electrical enclosure. Connect the AC mains supply (85–264V AC) to the input terminals following local wiring regulations and ensure correct grounding. Connect the 24V DC output to the load, observing polarity. Verify that the total connected load does not exceed the rated continuous output of 30W and that ventilation around the device is not obstructed.

Recommendations

Install the POW-2411 in a location free from excessive vibration, corrosive gases, and direct water exposure. For long-term reliability, avoid sustained operation at maximum ambient temperature with full load and perform periodic inspections of terminal connections.
