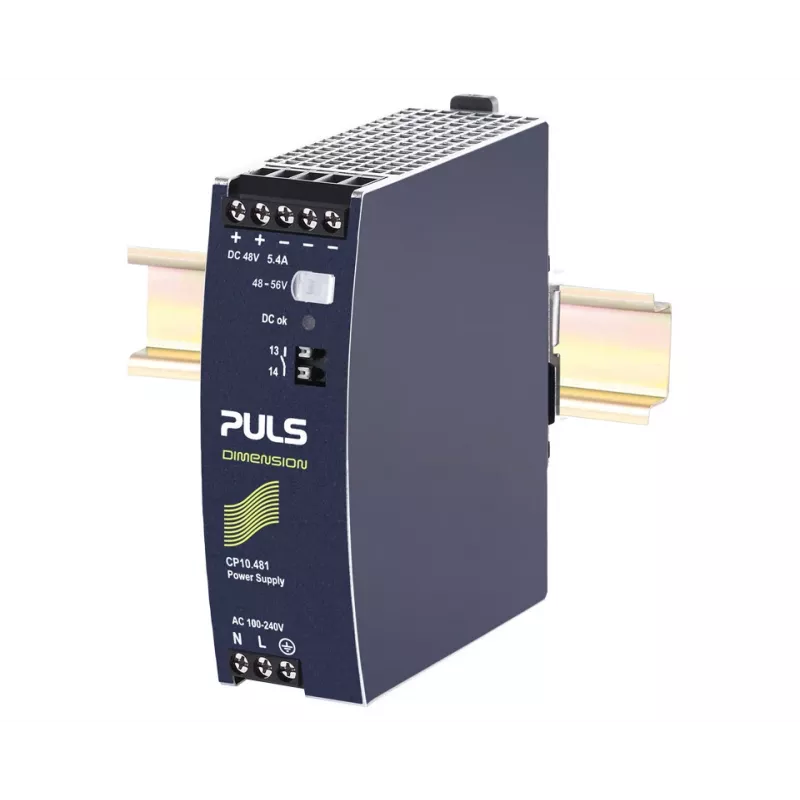

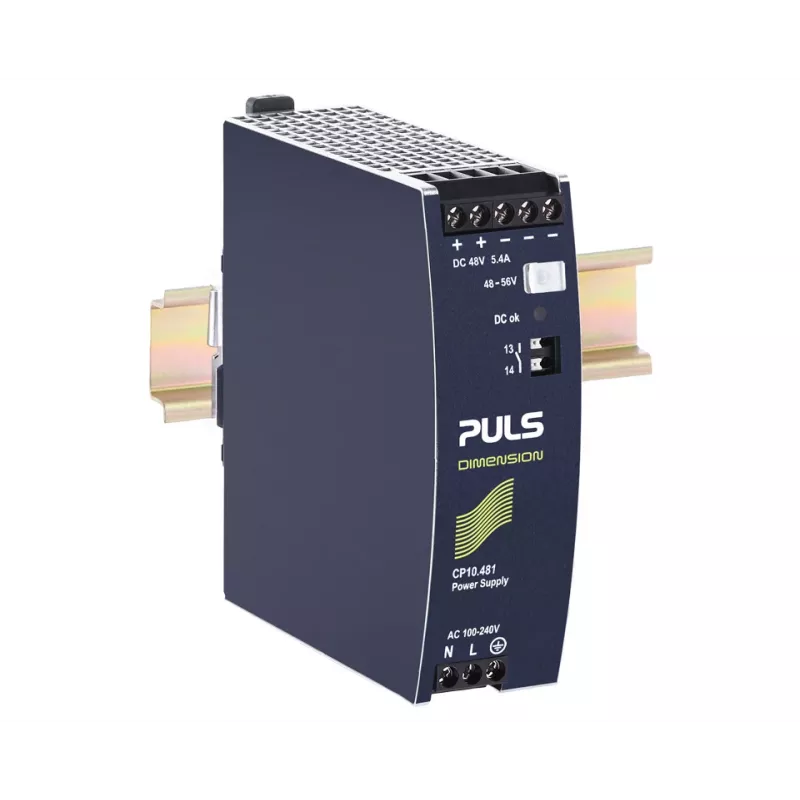

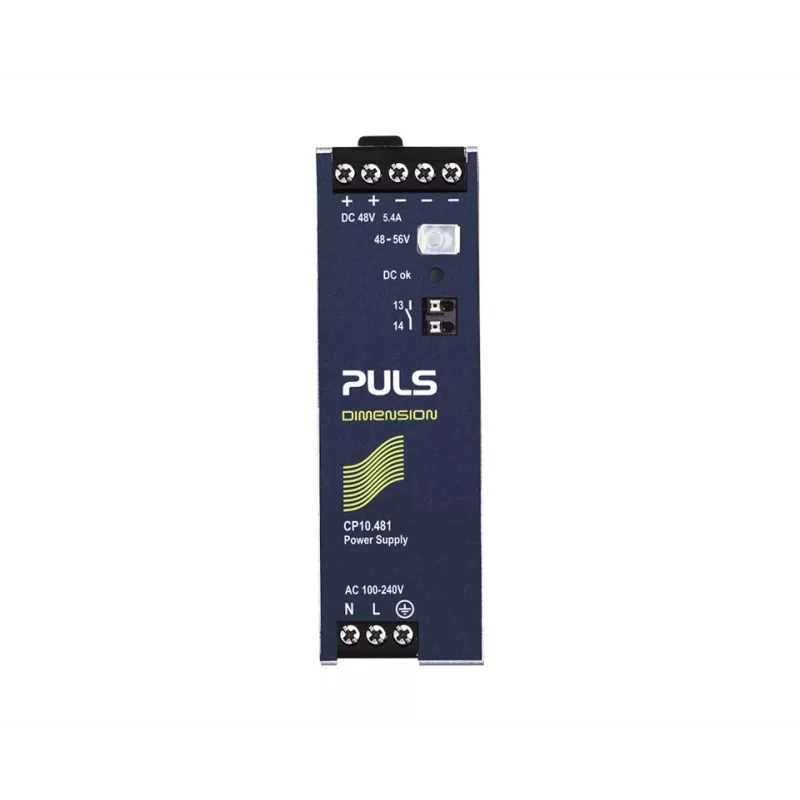

Alimentatore PULS CP10.481 per guida DIN 48V DC 5,4A 259W 1 uscita

The PULS CP10.481 is a DIN rail power supply that delivers 48 V DC at up to 5.4 A, with a total output power of 259 W. Its high efficiency of over 95.2% and active power factor correction set it apart from typical power supplies, reducing energy loss and heat generation in industrial control cabinets.

Highlights

• Output voltage adjustable from 48 to 56 V DC
• Wide input range: 100-240 V AC or 110-150 V DC
• Convection cooling, no fan required
• Overload and short circuit protection
• Compact DIN rail mounting

In daily use

The CP10.481 operates across a temperature range of -25 to +70 °C, making it suitable for demanding industrial environments. Its screw terminal connections provide secure wiring, and the hold-up time of over 20 ms at 115 V AC ensures stable output during brief mains interruptions.

Full specifications

• Output voltage: 48 V DC
• Output current: 5.4 A
• Output power: 259 W
• Input voltage (AC): 100 - 240 V AC
• Input voltage (DC): 110 - 150 V DC
• Efficiency: >95.2%
• Operating temperature: -25 to +70 °C
• Input frequency: 50/60 Hz
• Hold-up time: >20 ms (at 115 V AC)
• Connection type: Screw terminals

Final note

With its high efficiency and wide input range, the CP10.481 is a reliable power source for industrial automation systems.
