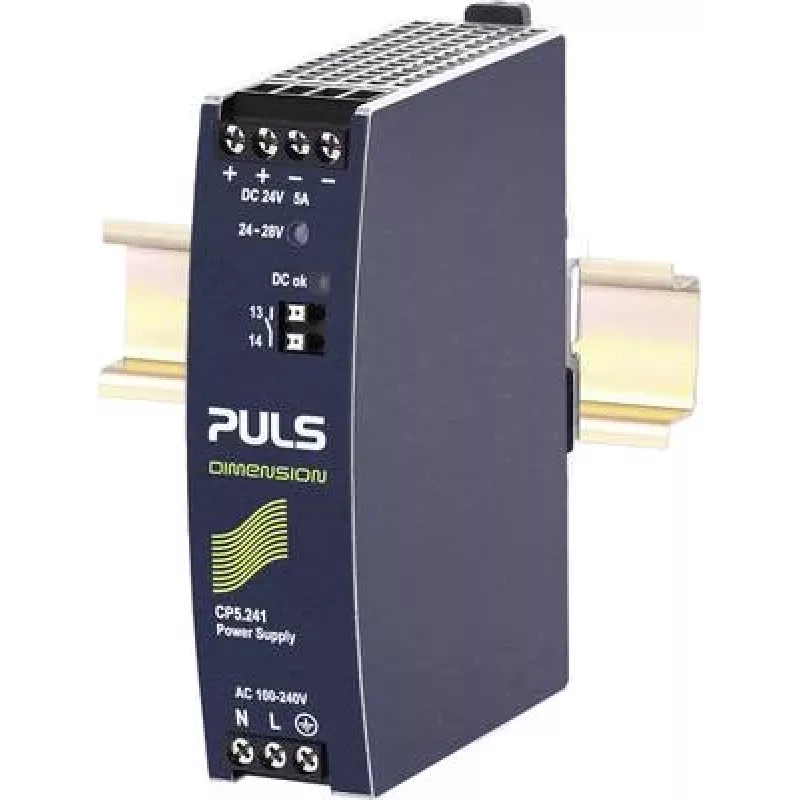

Alimentatore PULS CP5.241 DIMENSION per guida DIN 24V DC 5A 120W

Industrial control systems demand a power supply that delivers stable 24V DC without interruption. The PULS CP5.241 DIMENSION unit provides 5 A output current and 120 W power on a DIN rail, ensuring reliable operation for automation, machinery, and process control.

Who is it for

Engineers and technicians building or maintaining industrial cabinets who need a compact, efficient DIN rail power supply with active power factor correction and a wide operating temperature range.

Main features

• Output 24V DC, adjustable from 24V to 28V, with 5 A continuous current
• High efficiency of 94.3% at 230V AC reduces heat and energy costs
• Active PFC (>0.99) ensures compliance with harmonic standards
• Wide input range 100-240V AC (also accepts 110-150V DC)
• Operates from -25°C to +70°C without derating up to +60°C
• Compact metal housing for DIN rail TS35/7.5 or TS35/15

Specifications

• Input voltage: 100-240V AC, 110-150V DC
• Input frequency: 50-60 Hz
• Output voltage: 24V DC (adjustable 24-28V)
• Output current: 5 A
• Output power: 120 W
• Efficiency: 94.3% at 230V AC
• Ripple and noise: <50 mVpp
• Hold-up time: >20 ms at 120 W, 115V AC
• Protection: short-circuit, overload, over-voltage, over-temperature
• Connection: screw terminals
• Housing material: aluminium
• MTBF: >1,000,000 hours

Tips

Mount on a standard DIN rail and leave adequate ventilation space. For parallel operation or redundancy, consult the PULS documentation for proper configuration.
