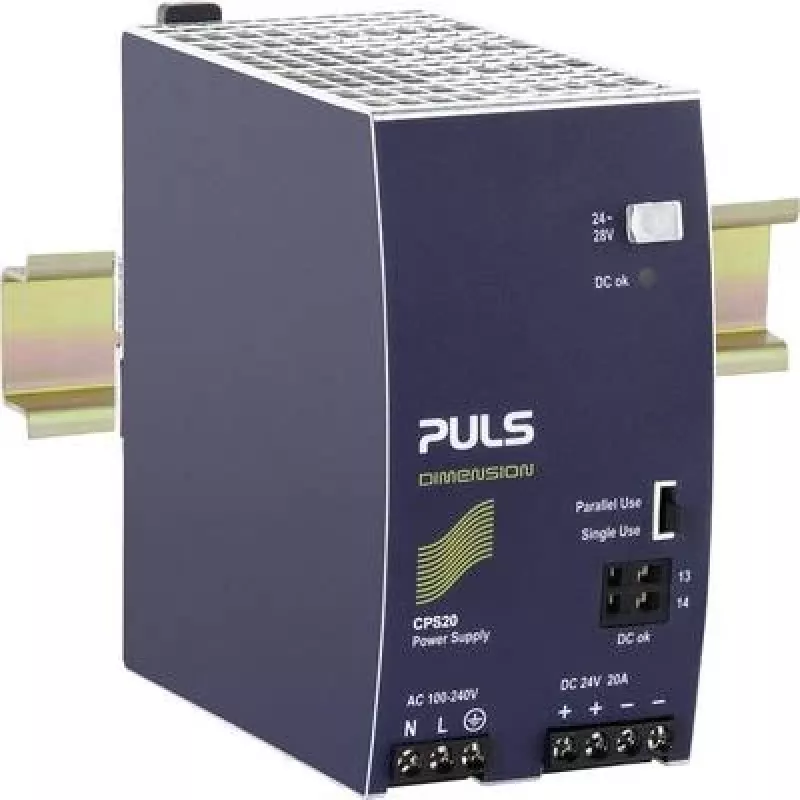

Alimentatore PULS CPS20.241-C1 per guida DIN 24V DC 20A 480W

Industrial DIN-rail power supply delivering 24 V DC at 20 A with 480 W output power. Active PFC and up to 94.3% efficiency ensure reliable operation in demanding automation environments.

Advantages

High efficiency reduces energy costs and heat generation. Active power factor correction improves grid compatibility. Convection cooling eliminates fan noise and maintenance. Wide input voltage range supports global deployment.

Suitable for

• Industrial control systems
• Machine building
• Process automation
• Building technology

Key specifications

• Output: 24 V DC, 20 A, 480 W
• Input: 100-240 V AC (85-276 V AC), 45-65 Hz
• Efficiency: up to 94.3%
• Mounting: DIN-rail TS35/7.5 or TS35/15
• Operating temperature: -25°C to +70°C
• Protection: overload, short-circuit, over-voltage, over-temperature
• Dimensions: 124 mm width, 127 mm height, 127 mm depth
• Weight: 1.2 kg

Recommendations

Verify input voltage and load requirements before installation. Use appropriate wire sizes for screw terminals. Ensure adequate ventilation for convection cooling.
