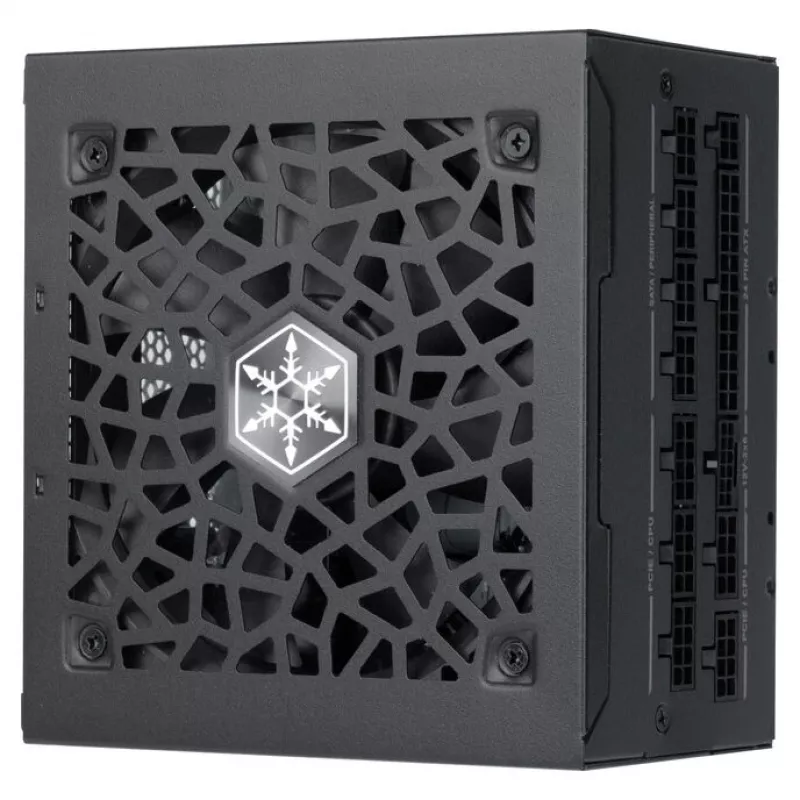

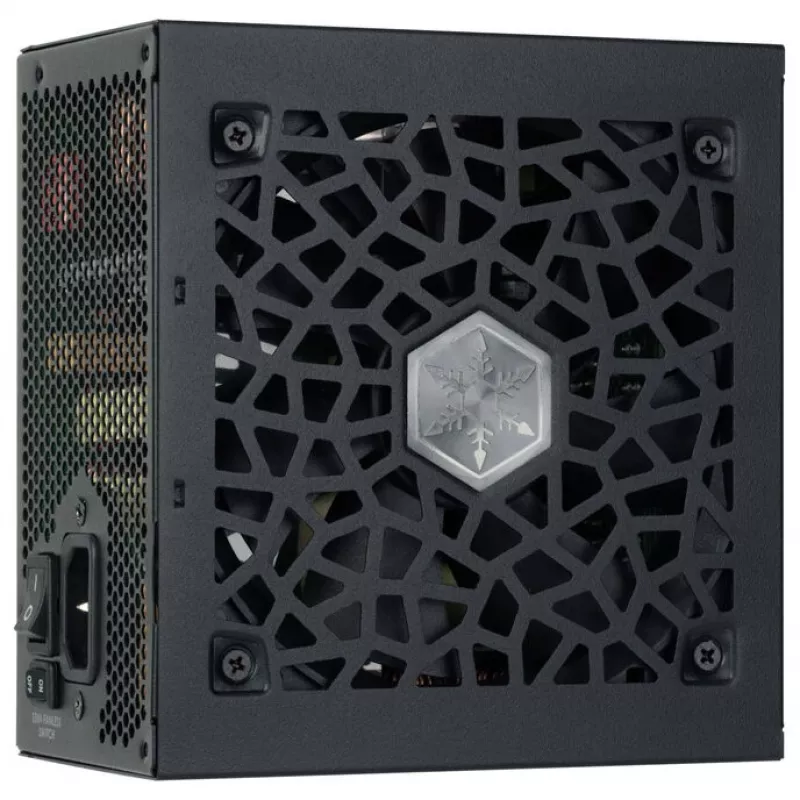

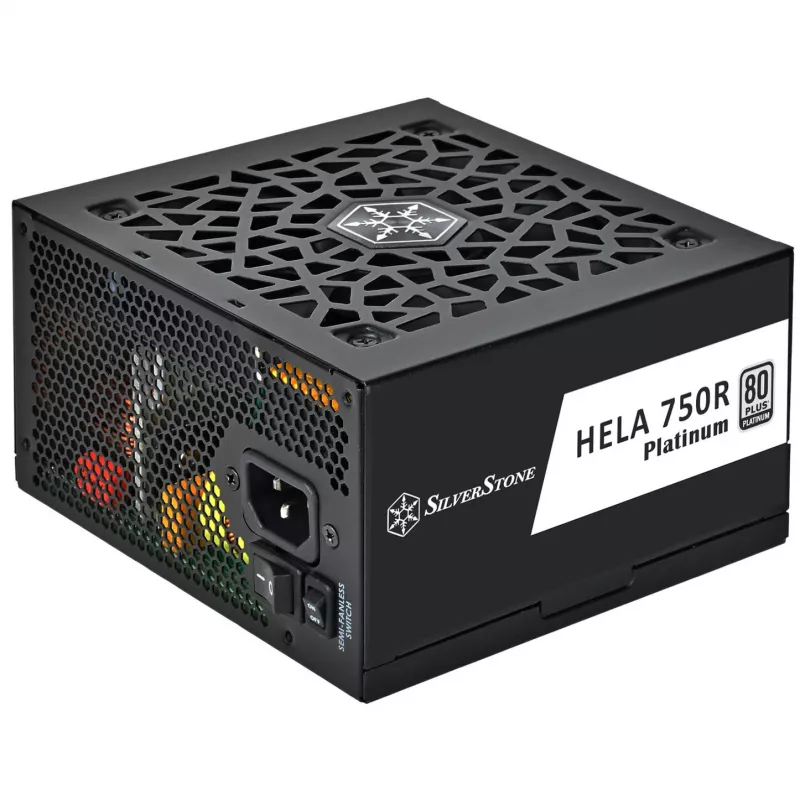

Alimentatore SilverStone HELA 750R 750 Watt

The SilverStone HELA 750R 750 Watt is a high-performance ATX power supply designed for modern desktop systems. It delivers 750 W of continuous power with 80 PLUS Platinum efficiency and ATX 3.1 compatibility. The unit supports PCIe 5.1 power connectors for current-generation graphics cards, and its fully modular cable system enables tidy builds and simplified cable routing. Built with quality components and focused on stable voltage delivery, the HELA 750R targets users who need reliable, efficient power for demanding hardware.

Advantages

The HELA 750R combines high conversion efficiency and ATX 3.1 compliance to reduce energy losses and support advanced motherboard and GPU power requirements. Its fully modular design reduces clutter inside the chassis and improves airflow. Native support for PCIe 5.1 connectors ensures compatibility with the latest graphics cards without adapters. Quality components and multi-rail protections contribute to consistent voltage regulation and system safety.

Suitable for

• Gaming desktops with high-performance GPUs
• Workstations for video editing and 3D rendering
• Systems requiring ATX 3.1 features and PCIe 5.1 power
• Custom builds focused on efficient cooling and cable management

Key specifications

• Output power: 750 Watts continuous
• Efficiency rating: 80 PLUS Platinum
• Form factor: ATX 3.1 compatible
• PCIe support: PCIe 5.1 power connectors

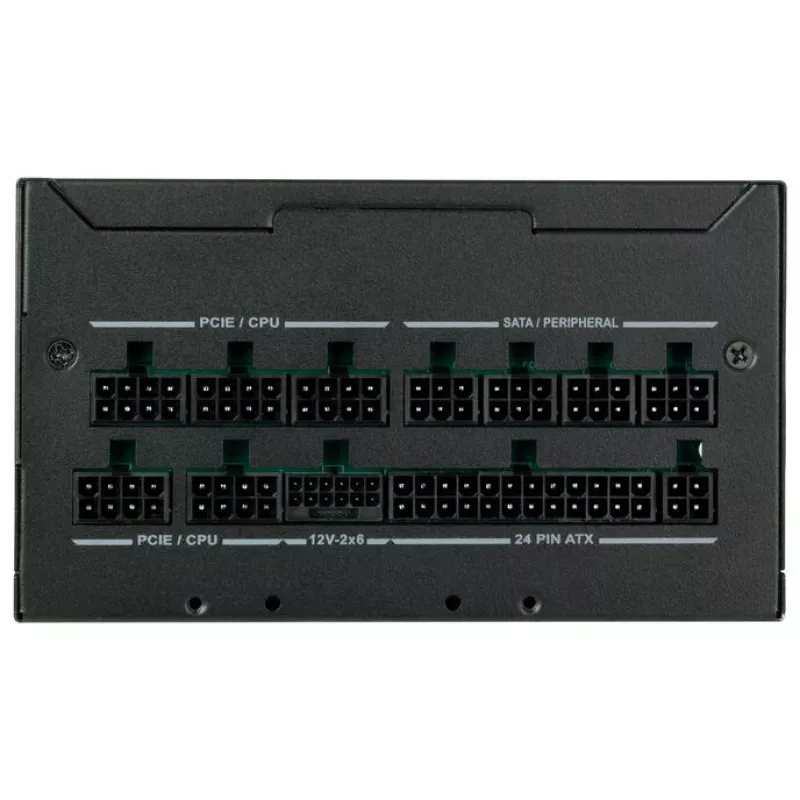

• Cabling: Fully modular cable design
• Cooling: Internal fan with intelligent speed control

How to use

Install the power supply into a compatible ATX chassis following standard mounting procedures. Connect the main 24-pin motherboard cable, require CPU power connector(s), and the necessary PCIe 5.1 GPU cables directly from the modular ports to the graphics card. Use only the included modular cables to ensure proper fit and rated current. Verify that all connectors are fully seated and that the unit is secured before powering the system. Configure fan and power settings via the motherboard BIOS if needed.

Recommendations

Ensure system power requirements do not exceed the 750 W rating and account for peak GPU and CPU draws. Use the native PCIe 5.1 connectors for modern GPUs to maintain electrical and mechanical compatibility. Maintain clear airflow around the PSU intake and periodically check modular cable connections during upgrades.
