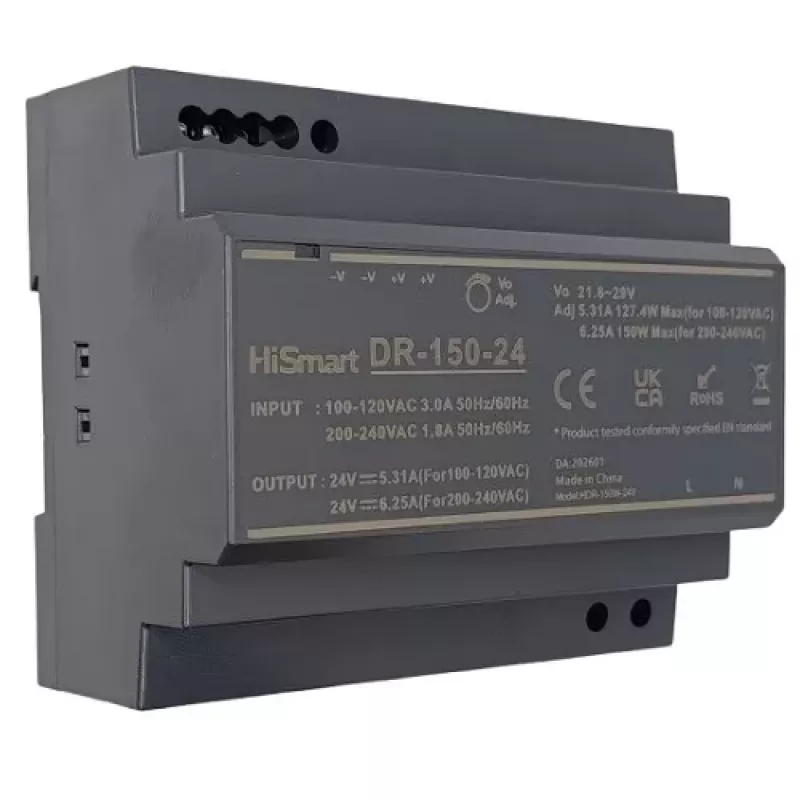

Alimentatore switching per guida DIN HISMART DR-150-24 24V 6,25A 150W

The HISMART DR-150-24 is a high-efficiency DIN rail power supply delivering 24V DC at 6.25A (150W). Designed for industrial automation and control systems, it offers reliable performance with active PFC and comprehensive protection features.

Advantages

Compact metal housing for easy DIN rail mounting, high efficiency >88%, and wide input voltage range (85-264V AC / 120-370V DC). Active PFC ensures low harmonic distortion and compliance with power quality standards.

Suitable for

• Industrial control panels
• PLC and automation systems
• Security and access control systems
• LED lighting and signage
• Telecommunication equipment

Key specifications

• Output: 24V DC, 6.25A, 150W
• Input: 85-264V AC / 120-370V DC, 47-63 Hz
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Efficiency: >88%
• Protection: Overload, Overvoltage, Short Circuit, Overtemperature
• Operating Temperature: -20°C to +70°C
• Ripple & Noise: <150mVp-p
• Output Voltage Adjustment: 22-28V DC
• Isolation: Input-Output 3000V AC, Input-Ground 1500V AC, Output-Ground 500V AC
• MTBF: >250,000 hours
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with appropriate circuit protection and ensure adequate ventilation. The power supply is designed for continuous operation in industrial environments.
