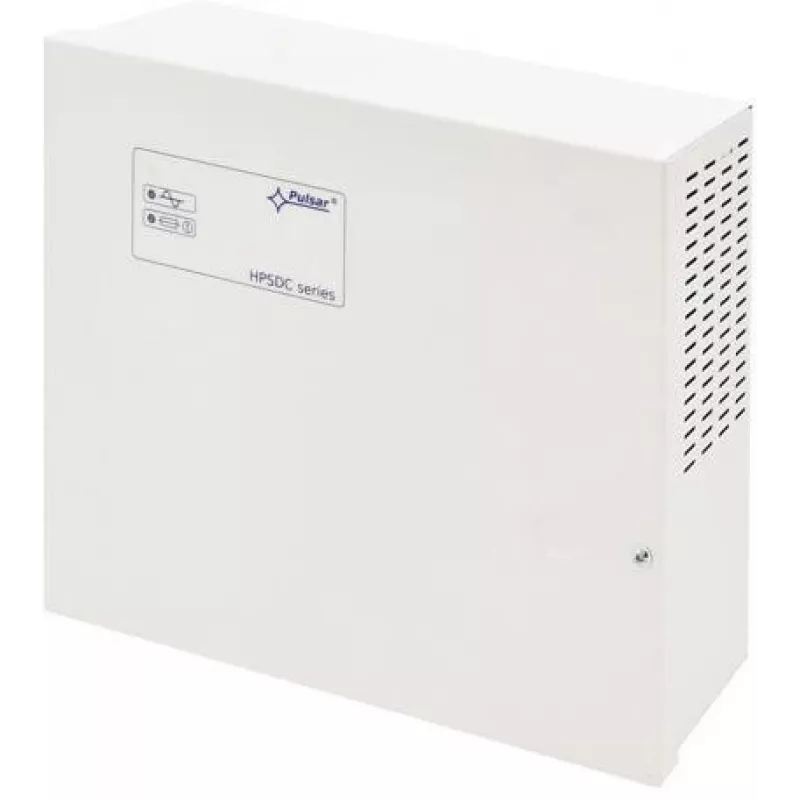

Alimentatore switching stabilizzato Pulsar HPSDC-12V16X1A per 16 telecamere HD 12V/15A/16×1A/TOPIC

The Pulsar HPSDC-12V16X1A is a high-quality switched-mode power supply designed to provide stable and reliable power for up to 16 HD cameras. With a total output current of 15A and individual outputs rated at 1A each, this unit ensures consistent performance for CCTV, access control, and alarm systems. Its metal enclosure and surface-mount design make it suitable for professional installations.

Advantages

This power supply offers multiple protection features including short-circuit, overload, overvoltage, undervoltage, and surge protection, ensuring the safety of connected devices. The LED indicators for AC power and each output provide clear status monitoring. With an efficiency of 80%, it minimizes energy loss and heat generation.

Suitable for

• CCTV systems with up to 16 HD cameras
• Access control systems
• Alarm systems
• Any application requiring a stabilized 12V DC power source with multiple outputs

Key specifications

• Output Voltage: 12V DC
• Total Output Current: 15A
• Number of Outputs: 16
• Current per Output: 1A
• Input Voltage: 230V AC (185V - 265V AC)
• Output Power: 180W
• Efficiency: 80%
• Protection: SCP, OLP, OVP, UVP, Surge Protection
• Operating Temperature: -10°C to +40°C
• Enclosure Material: Metal
• Enclosure Color: RAL9003 (White)
• Mounting: Surface Mounted
• Output Connectors: Screw Terminals
• Indicators: LED for AC power, 16x LED for individual outputs
• Compliance: CE

Recommendations

For optimal performance, ensure proper ventilation and avoid overloading the power supply. Use appropriate gauge wiring for connections. This unit is ideal for professional security installations requiring reliable power distribution.
