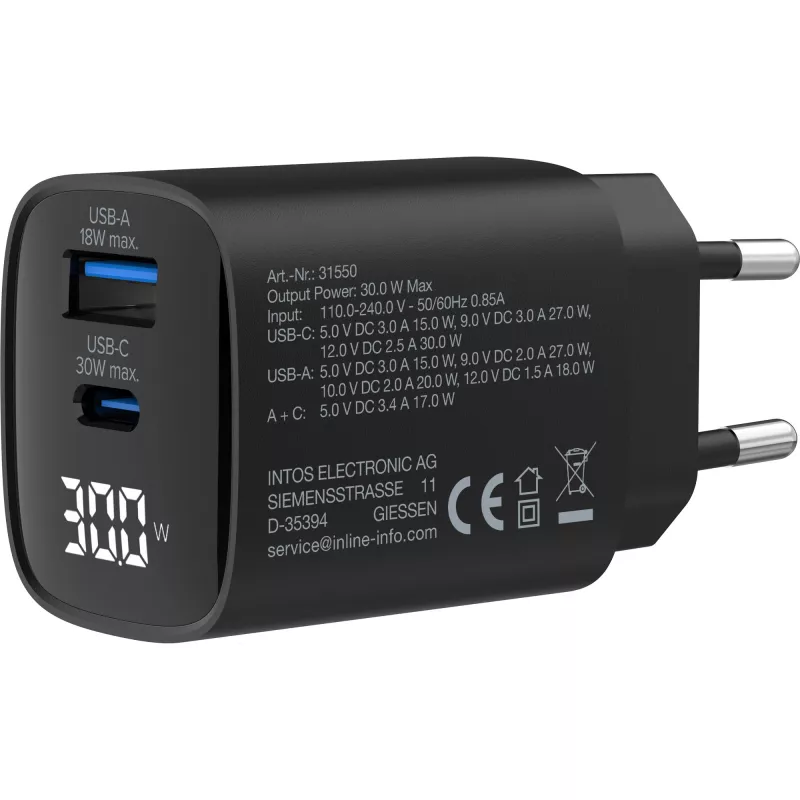

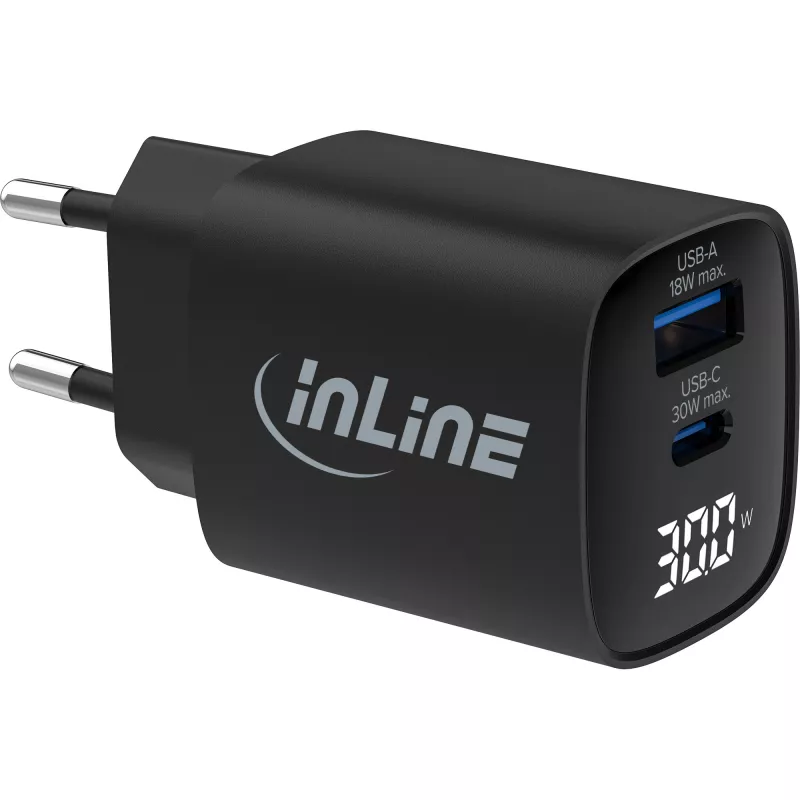

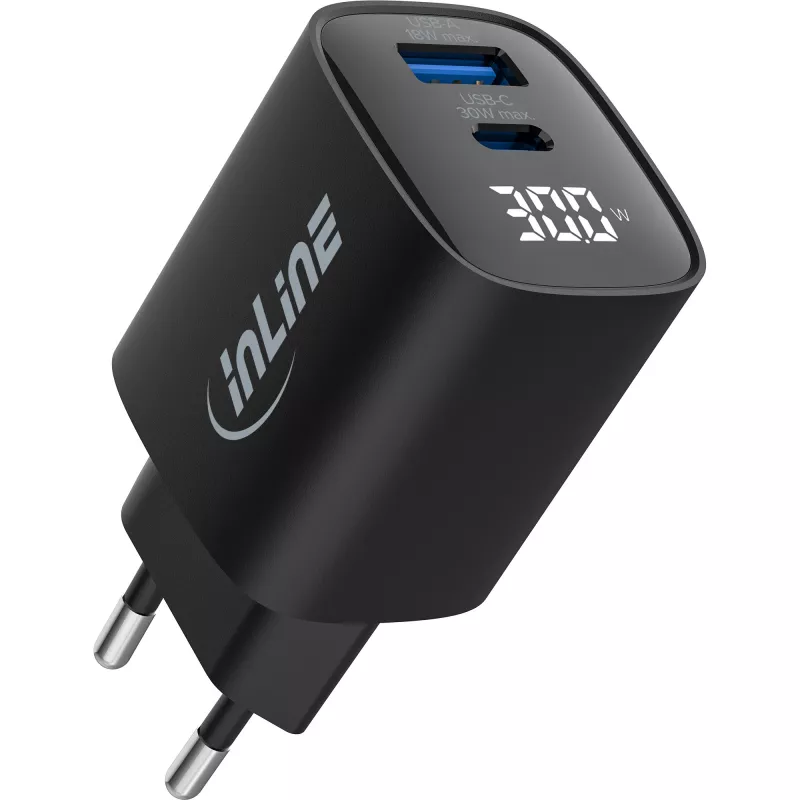

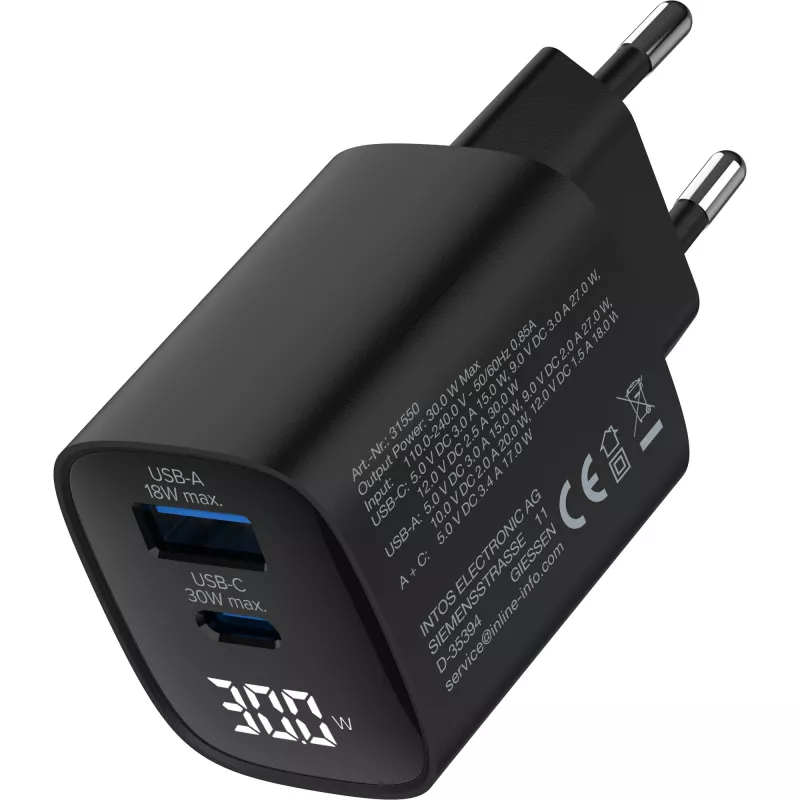

Alimentatore USB PD InLine, caricabatterie GaN, 2 porte, USB-C + USB-A, 30W, con display

This USB power supply from InLine combines state-of-the-art charging technology with a smart consumption indicator. Gain valuable insights into energy consumption while the charger supplies smartphones and other devices with power reliably, quickly and safely. The built-in digital display allows you to keep an eye on the current energy consumption in watts at all times and compare different devices with each other. By displaying the energy consumption, you can monitor the efficiency of your devices, adjust your charging habits and learn to use energy more consciously.

The USB power supply from InLine is equipped with state-of-the-art, environmentally friendly technology to ensure fast and efficient charging performance. With a high output power of 30 watts, you can charge several devices at the same time without sacrificing charging speed.

Gallium nitride (GaN) technology increases durability, reliability, charging efficiency and power density in a more compact and lightweight design. Due to the lower energy consumption during charging, the reduced material consumption during production and the smaller transport volume, the InLine power supply unit is particularly environmentally friendly.

The charger supports Power Delivery 3.0 on the USB-C port and Quick Charge 3.0 on the USB-A port. These fast charging technologies optimise charging performance and speed with minimal energy loss.

Intelligent charge detection adapts the charging speed to the device and the charge level. This shortens the charging time, protects the battery and increases its service life. The USB power supply is excellently insulated and has comprehensive protection against overvoltage, overheating and short circuits. The lightweight, compact design hardly weighs a thing when travelling and fits into any multiple socket strip. Thanks to its variety of connections and technologies, this power adapter can be used universally and is compatible with a wide range of devices, including iOS and Android devices. Enjoy the latest charging technology while keeping an eye on the energy consumption of your devices.

Technical characteristics

USB power adapter/charger
Input voltage: 100-240VAC, 0.85A
Input AC frequency: 50/60Hz
Output voltage/output current/output power:

USB-C output:
5.0VDC/3.0A/15.0W - 9.0VDC/3.0A/27.0W - 12.0VDC/2.5A/30.0W

USB-A output:
5.0VDC/3.0A/15.0W - 9.0VDC/2.0A/18.0W - 12.0VDC/1.5A/18.0W

USB-A + USB-C output:
5.0VDC/3.4A/17.0W

Average operating efficiency:

83.78% (230V, 50Hz, USB-A 5.0V/3.0A)
87.77% (230V, 50Hz, USB-A 12.0V/1.5A)
84.33% (230V, 50Hz, USB-C 5.0V/3.0A)
88.73% (230V, 50Hz, USB-C 12.0V/2.5A)
85.56% (230V, 50Hz, USB-A 5.0V/1.7A + USB-C 5.0V/1.7A)

Efficiency at low load (10%):

78.68% (230V, 50Hz, USB-A 5.0V/3.0A)
75.71% (230V, 50Hz, USB-A 12.0V/1.5A)
78.75% (230V, 50Hz, USB-C 5.0V/3.0A)
82.21% (230V, 50Hz, USB-C, 12.0V/2.5A)
79.47% (230V, 50Hz, USB-A 5.0V/1.7A + USB-C 5.0V/1.7A)

Power consumption at no load: 0.09W
Total output power: max. 30.0W
Overvoltage and short circuit protection
If the power supply temperature is too high, it switches off automatically and automatically continues charging after it has cooled down
Dimensions: 81.8x39x33.5mm (LxWxH)
Weight: Approx. 60g

InLine USB PD power supply, GaN charger, 2-port, USB-C + USB-A, 30W, w/ display. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 12 V. USB Type-C ports quantity: 1, Fast charging, Power protection features: Over voltage, Short circuit. Product colour: Black

How to use

Connect the charger to a mains outlet within the specified input range (100–240 VAC). Plug a device into the USB-C or USB-A port, or both, to begin charging; the charger will detect the connected device and adjust charging speed automatically. Observe the digital display to read the current power consumption in watts. If the charger becomes too hot, it will switch off automatically and resume charging after it has cooled down.

Recommendations

For best results, use appropriate USB cables rated for fast charging and avoid covering the charger during operation to permit cooling. To compare device efficiency, monitor the watt reading on the display while charging different devices under similar conditions.
