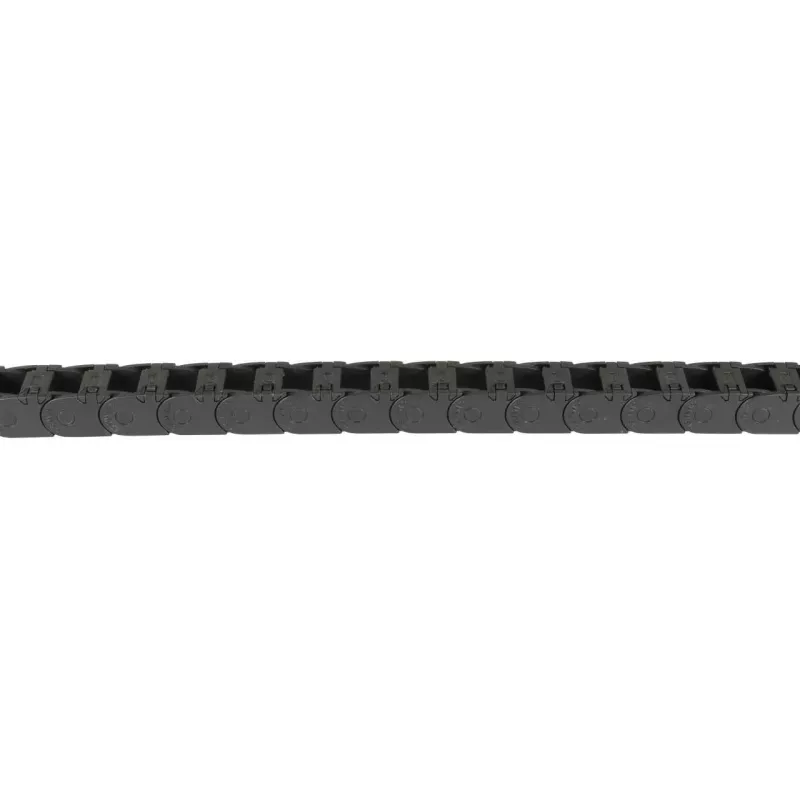

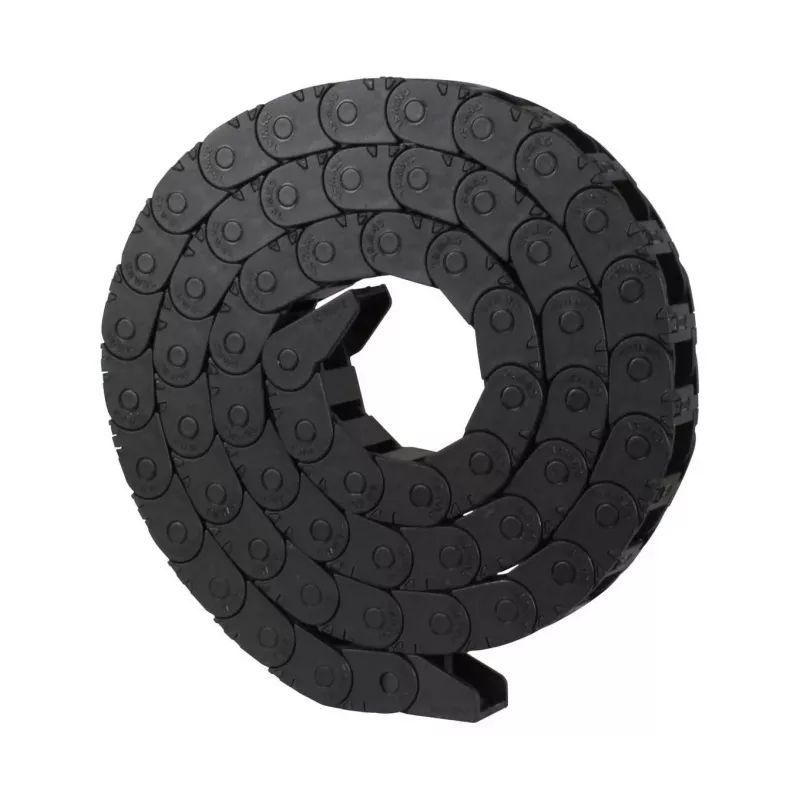

ALLNET 4duino Catena portacavi 3D 10mm x 10mm dimensioni interne, 1m, nero, chiusura rapida (ALLTow12mm)

The ALLNET 4duino 3D Towlines Cable Drag Chain (ALLTow12mm) is a high-quality cable management solution designed for 3D printers, CNC machines, robotics, and automation systems. With an internal height and width of 10 mm, this drag chain provides mechanical protection for cables and hoses, ensuring reliable operation in dynamic applications. The chain features a quick-release snap-on design for easy cable insertion and maintenance.

Advantages

This cable drag chain offers low noise operation, excellent chemical resistance (oil, acid, salt, alkali), and flame retardancy (UL94-V2). Its openable links allow for simple cable insertion and removal, reducing downtime. The PA66 Nylon material ensures durability and long service life in demanding environments.

Suitable for

• 3D Printers
• CNC Machines
• Robotics
• Automation Equipment
• Any application requiring guided cable movement

Key specifications

• Internal Height: 10 mm
• Internal Width: 10 mm
• External Height: 12 mm
• External Width: 17 mm
• Bend Radius: R18
• Material: PA66 Nylon
• Color: Black
• Closure: Quick Release (Snap-on)
• Unit Length: 1 Meter
• Weight per Meter: 120 g
• Operating Temperature: -20°C to +100°C
• Flame Retardancy: UL94-V2

Recommendations

For optimal cable protection and longevity, ensure the chain is properly sized to accommodate all cables with some slack. Regularly inspect for wear and replace if damaged. This drag chain is ideal for applications requiring frequent flexing and movement.
