ALLNET ADQ-USB 3.0-ISO isolatore USB 3.0 SuperSpeed fino a 1 kV, alimentazione esterna

The ALLNET ADQ-USB 3.0-ISO is a high-performance USB 3.0 SuperSpeed isolator providing galvanic isolation up to 1000 V RMS. It effectively eliminates ground loops, reduces noise, and protects connected equipment from surges and voltage spikes. Ideal for industrial automation, medical devices, measurement equipment, and audio systems.

Advantages

Galvanic isolation up to 1 kV ensures safe and reliable data transmission in electrically noisy environments. Plug & Play operation with no driver installation required. Supports USB 3.0 SuperSpeed (5 Gbit/s) and is backward compatible with USB 2.0 and 1.1. External power supply (5V DC, min. 1A) provides up to 900 mA output current to power connected devices.

Suitable for

• Industrial automation and control systems
• Medical devices requiring patient isolation
• Measurement and data acquisition equipment
• Professional audio systems to eliminate hum and noise
• Any application where ground loop elimination and surge protection are critical

Key specifications

• USB Standard: USB 3.0 SuperSpeed (5 Gbit/s)
• Backward Compatibility: USB 2.0, USB 1.1
• Isolation Voltage: 1000 V RMS (1 kV)

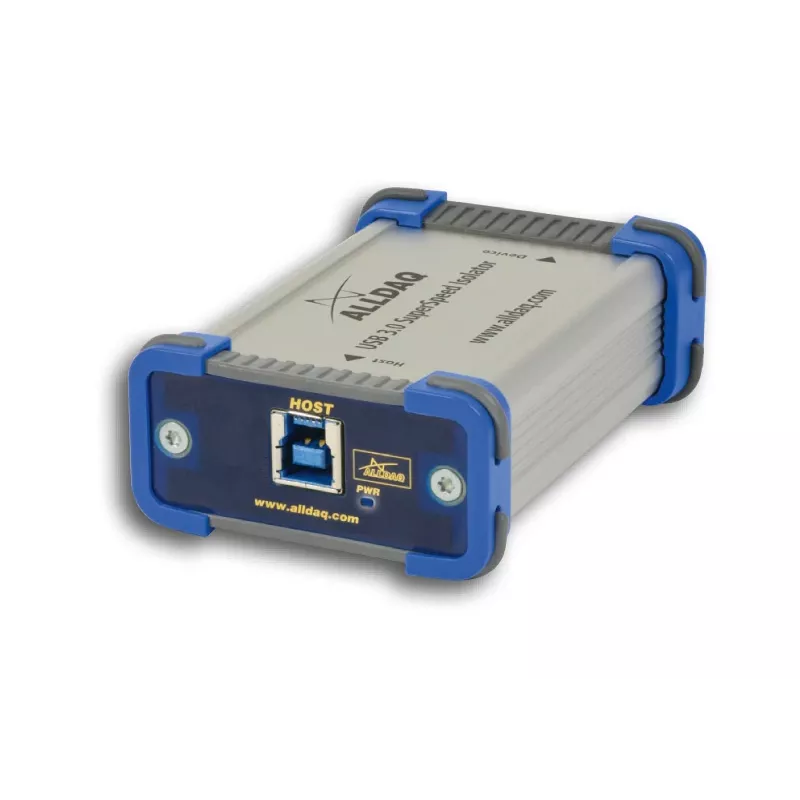

• Input Connector: USB 3.0 Type-B Female

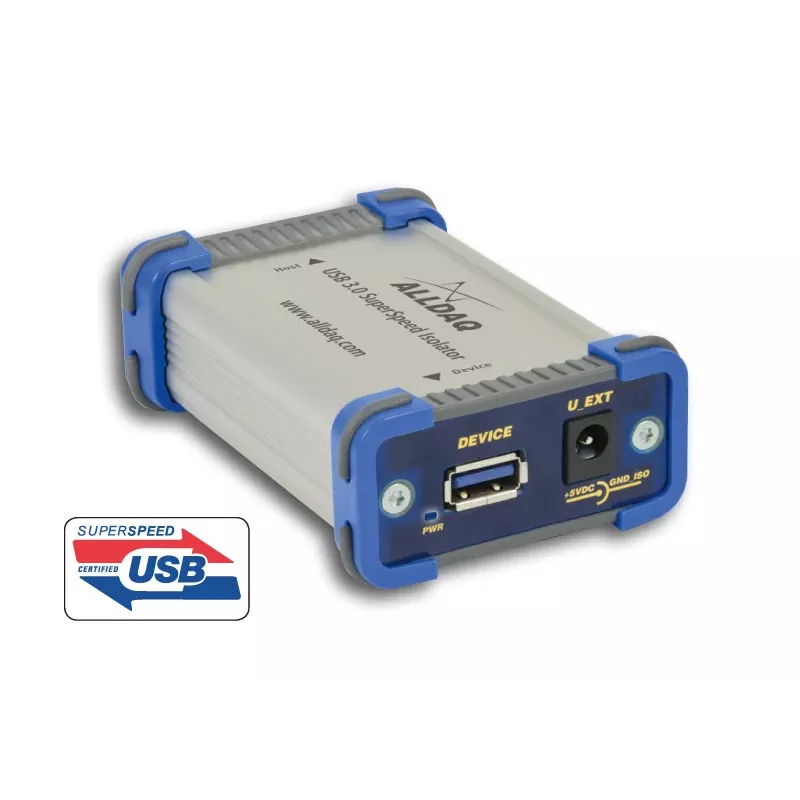

• Output Connector: USB 3.0 Type-A Female
• External Power Input: 5V DC (barrel jack), adapter not included
• Output Current (Isolated): Up to 900 mA (with external power)
• Housing Material: Metal (Aluminum)
• LED Indicators: Power, USB Link/Activity
• Operating Temperature: 0°C to 70°C
• Plug & Play: Yes, no drivers required
• Operating System Support: Windows, macOS, Linux

Recommendations

For optimal performance, use a regulated 5V DC power supply with at least 1A output. The isolator is designed for indoor use only. Ensure proper grounding of connected equipment.
