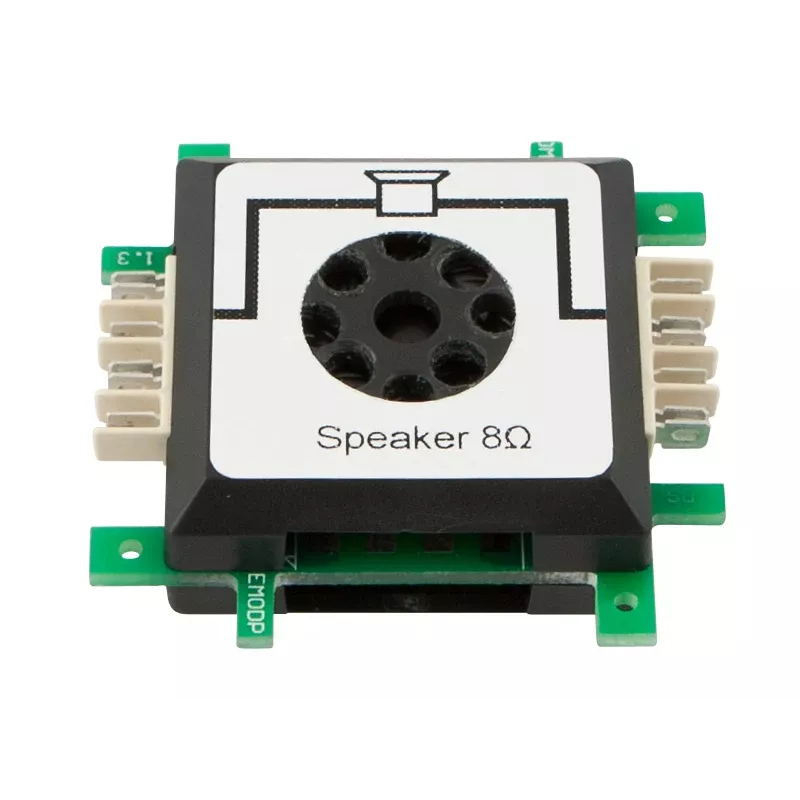

ALLNET ALL-BRICK-0076 modulo altoparlante per schede di sviluppo, 8 Ohm, 0,5 W, passivo

The ALLNET ALL-BRICK-0076 is a passive speaker module designed for embedded systems and development boards. It provides clear audio output for projects requiring sound feedback or simple audio playback. With an 8 Ohm impedance and 0.5 W rated power, this module is ideal for use with external audio amplifiers or driver circuits.

Advantages

Compact and easy to integrate, the ALL-BRICK-0076 features a 36 mm speaker diameter and a JST-PH 2.0mm 2-pin connector for quick wiring. Its four M2-compatible mounting holes ensure secure attachment to enclosures or prototyping boards. The green PCB matches the standard ALL-BRICK series aesthetic.

Suitable for

• Arduino, Raspberry Pi, ESP32, and other microcontroller projects
• Audio output for alarms, notifications, or simple sound effects
• Educational kits and DIY electronics
• IoT devices requiring audible feedback

Key specifications

• Module Type: Speaker Module
• Speaker Type: Passive
• Impedance: 8 Ohm
• Rated Power: 0.5 W
• Connector: JST-PH 2.0mm 2-Pin
• Speaker Diameter: 36 mm
• Number of Channels: Mono
• Mounting Holes: 4 (M2 compatible)
• PCB Color: Green
• Series: ALL-BRICK

Recommendations

For optimal performance, pair this module with an external audio amplifier or a driver circuit. Ensure the driving signal does not exceed the speaker's power rating to avoid damage.
