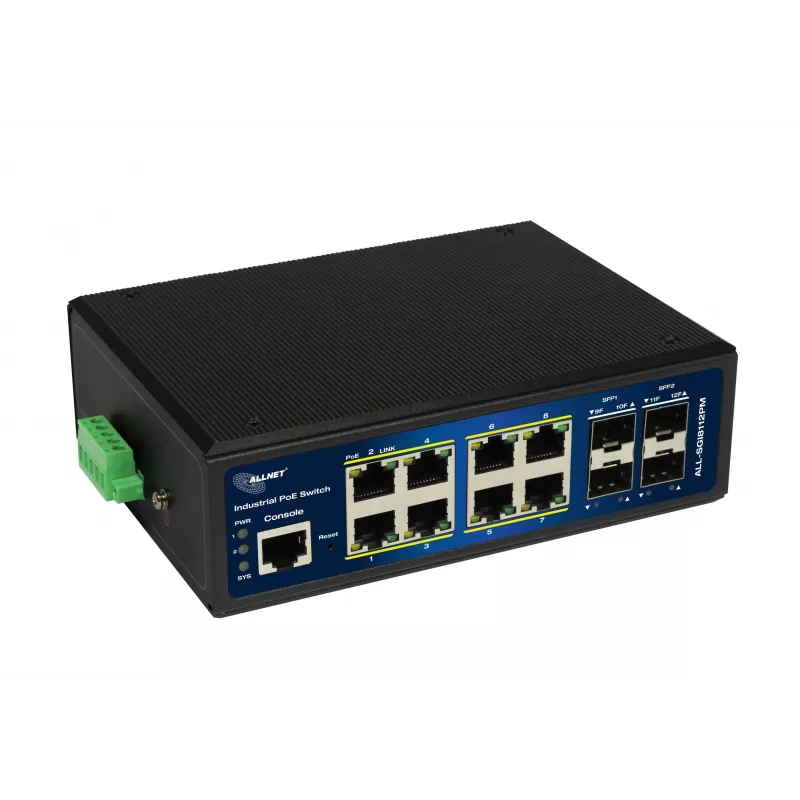

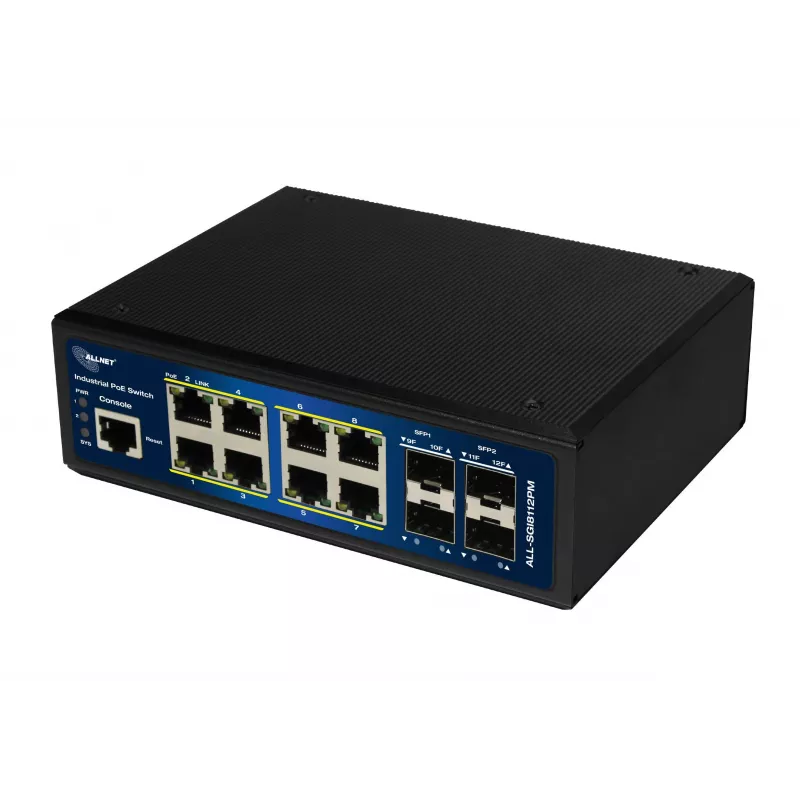

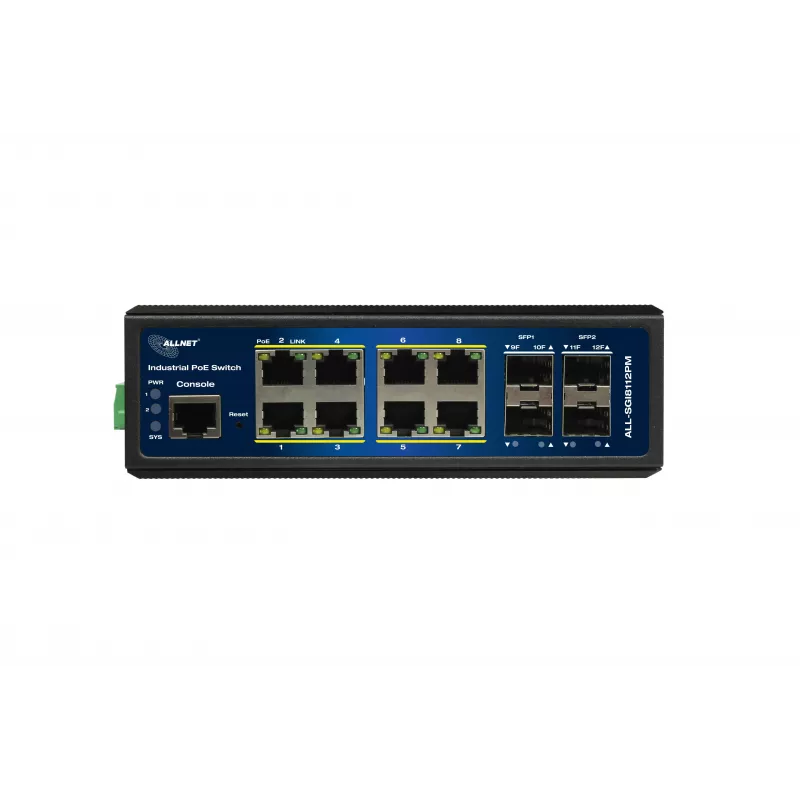

ALLNET ALL-SGI8112PM-BT Switch Ethernet Gigabit PoE++ Industrial Full Managed Layer2+, 12 porte, 8x PoE++ (budget 240W)

The ALLNET ALL-SGI8112PM-BT is a high-performance industrial managed Ethernet switch designed for demanding network environments. With 12 Gigabit ports, including 8 PoE++ (IEEE 802.3bt) ports delivering a total power budget of 240W, this switch provides reliable connectivity and power to PoE devices such as PTZ cameras, wireless access points, and IoT sensors. Its full Layer 2+ management capabilities, including VLAN, QoS, and advanced security features, ensure optimal network control and performance.

Advantages

Robust industrial design with fanless operation and wide temperature range (-40°C to 75°C) ensures reliability in harsh conditions. Dual redundant DC power inputs enhance uptime. The switch supports PoE++ (up to 90W per port) for high-power devices, while backward compatibility with PoE and PoE+ protects existing investments.

Suitable for

• Industrial automation and control systems
• Surveillance networks with high-power PTZ cameras
• Outdoor and extreme temperature environments
• Smart manufacturing and IoT deployments

Key specifications

• 12 Gigabit Ethernet ports (8x PoE++ IEEE 802.3bt, 4x non-PoE)
• Total PoE budget: 240W
• Switching capacity: 24 Gbps
• Forwarding rate: 17.8 Mpps
• Full management: Web GUI, CLI, SNMP
• Layer 2+ support: VLAN, QoS, STP/RSTP/MSTP, LACP, IGMP Snooping
• Security: Port Security, ACLs, 802.1X, DHCP Snooping

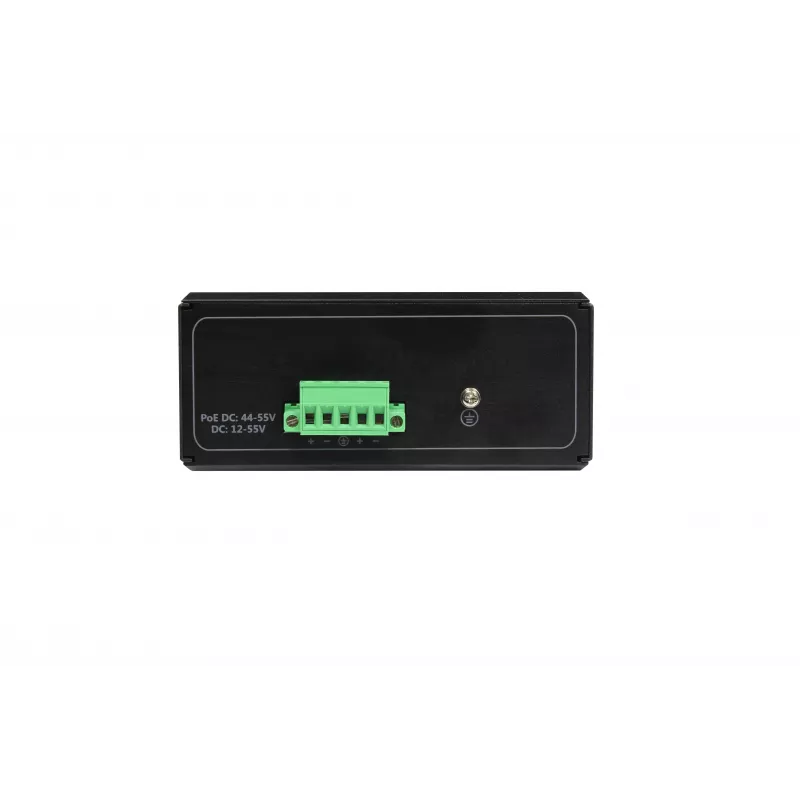

• Dual redundant DC power input (48-57V DC)
• Fanless, IP30 metal housing
• DIN rail and wall mountable

Recommendations

For optimal performance, use with a compatible DC power supply (not included). The switch is ideal for industrial networks requiring high reliability and advanced management features.
