ALLNET Armoury-190 PC panel touch industriale 19 pollici IP67 acciaio inox, Intel Celeron J4125, 4GB RAM, 128GB SSD, Windows 10 Pro

Built for harsh industrial environments, the ALLNET Armoury-190 is a 19-inch panel PC with a fully sealed IP67 stainless steel enclosure, making it ideal for food processing, pharmaceutical, and outdoor applications where washdowns and dust are constant challenges. Its fanless design and wide 9-36V DC input ensure reliable operation in demanding conditions.

Key specifications

• 19" SXGA (1280 x 1024) 5-wire resistive touchscreen, 350 cd/m² brightness
• Intel Celeron J4125 quad-core processor (2.0 GHz, up to 2.7 GHz burst)
• 4GB DDR4 RAM and 128GB M.2 SATA SSD
• Windows 10 Pro (64-bit) pre-installed
• IP67-rated SUS304 stainless steel housing, front and rear
• Fanless cooling for silent, maintenance-free operation

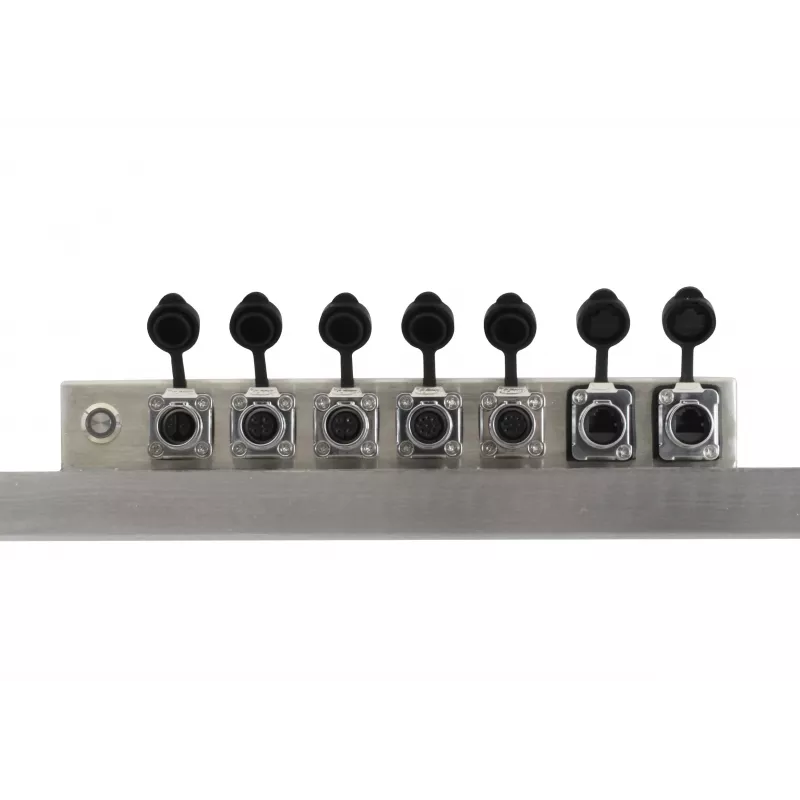

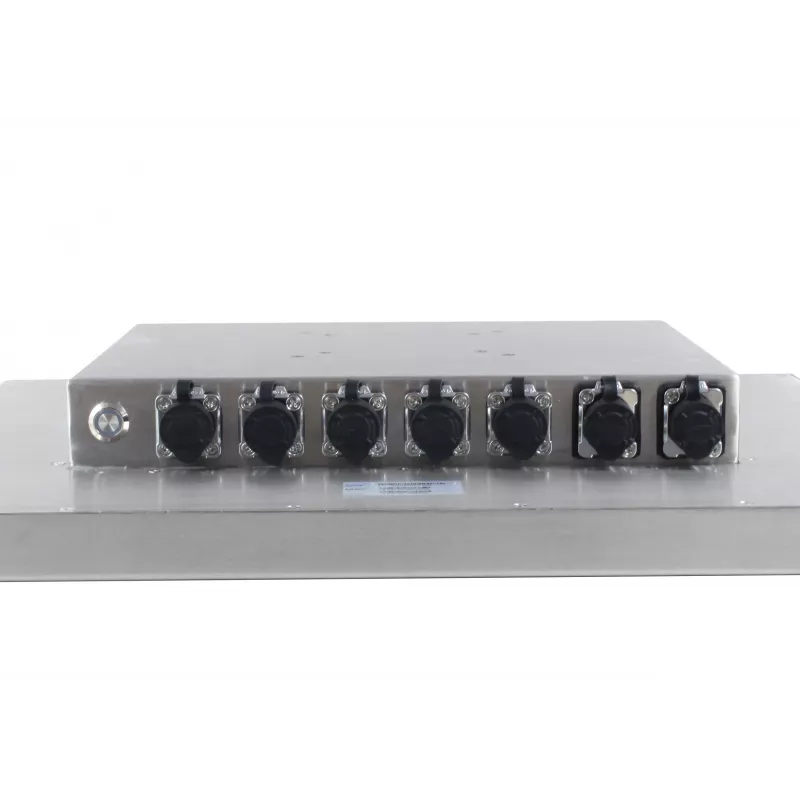

• 2x USB 3.0, 2x USB 2.0, 2x Gigabit LAN, 2x RS-232/422/485, 1x HDMI, 1x line-out – all via M12 connectors
• Wide 9-36V DC power input via M12 connector

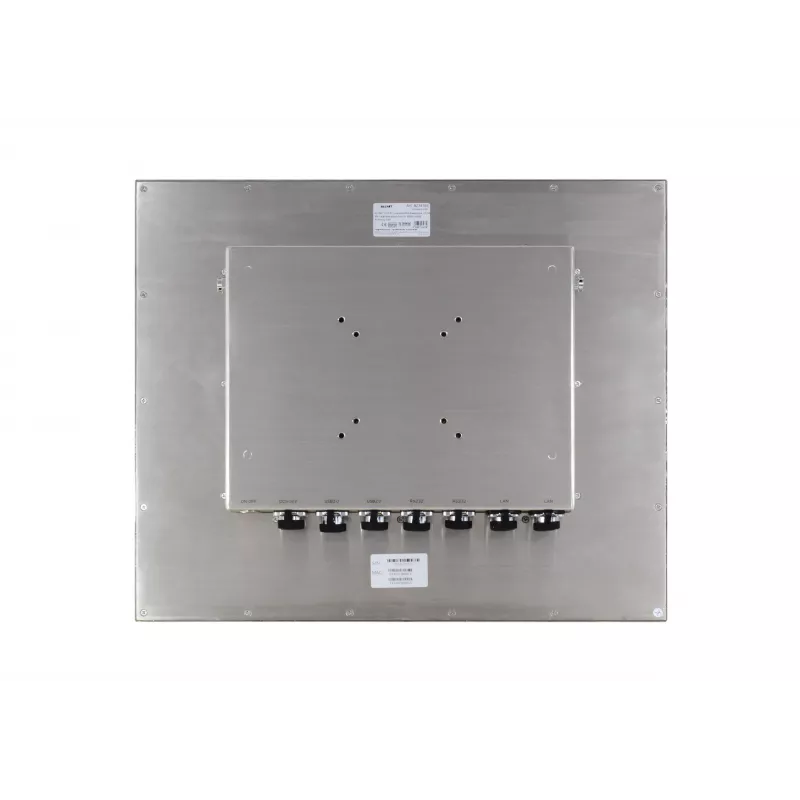

• Panel mount or VESA 100x100mm mounting options
• Operating temperature range: -10°C to 60°C

Why choose it

The Armoury-190 eliminates the need for additional protective enclosures, saving space and cost. Its M12 connectors provide secure, vibration-resistant connections, and the stainless steel body withstands aggressive cleaning agents. With a fanless design, there are no moving parts to fail, ensuring long-term reliability.

Ideal use cases

• Human-machine interface (HMI) in food and beverage production lines
• Cleanroom control panels in pharmaceutical manufacturing
• Outdoor kiosks or terminals exposed to weather
• Marine or offshore installations requiring corrosion resistance

Good to know

The touchscreen is a 5-wire resistive type, which works with gloved hands and is resistant to surface contaminants. The wide power input range allows direct connection to industrial DC supplies without additional converters.
