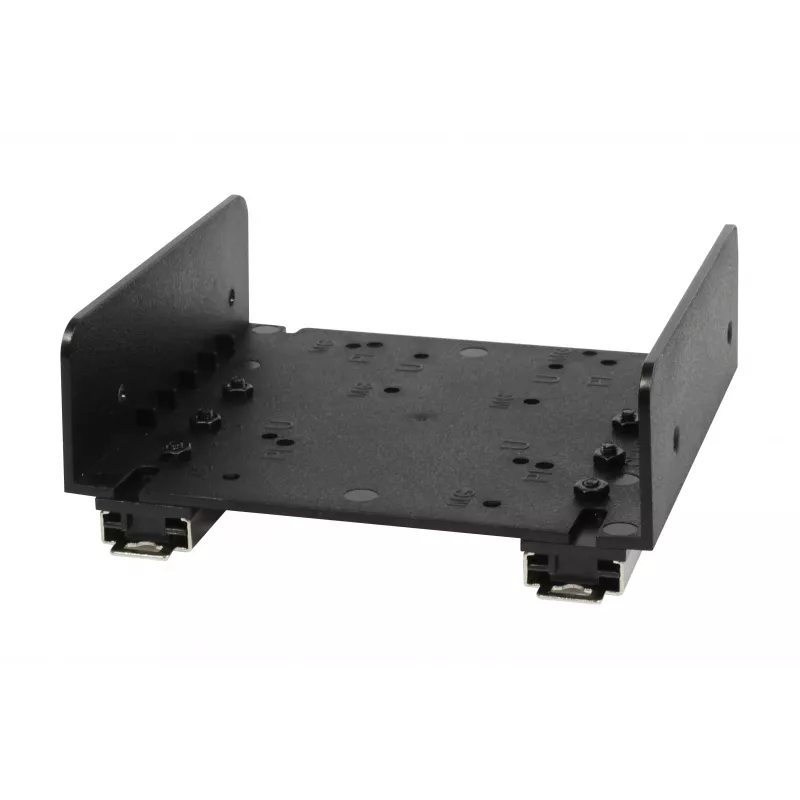

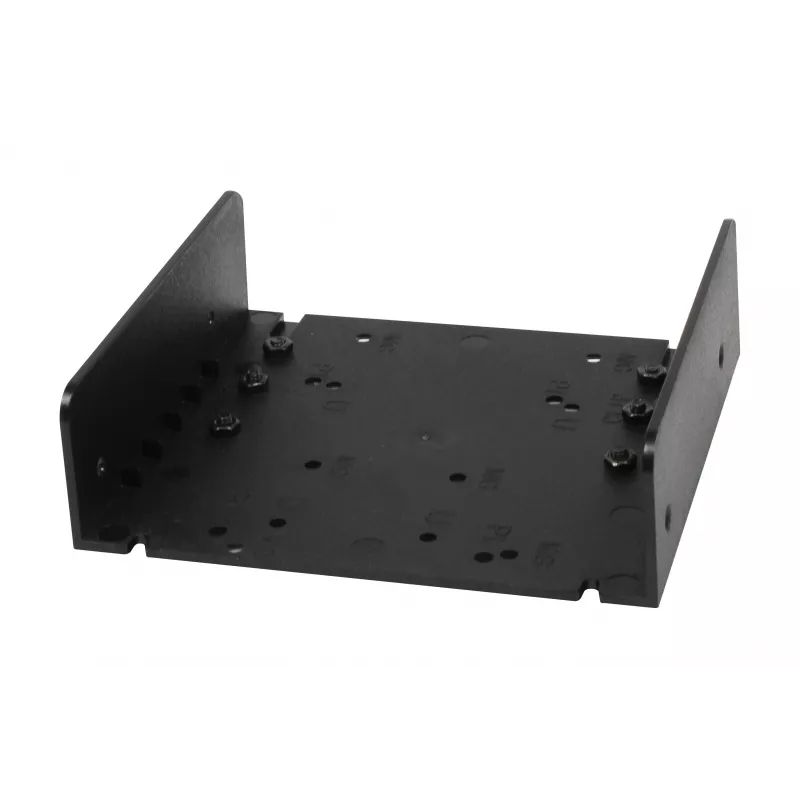

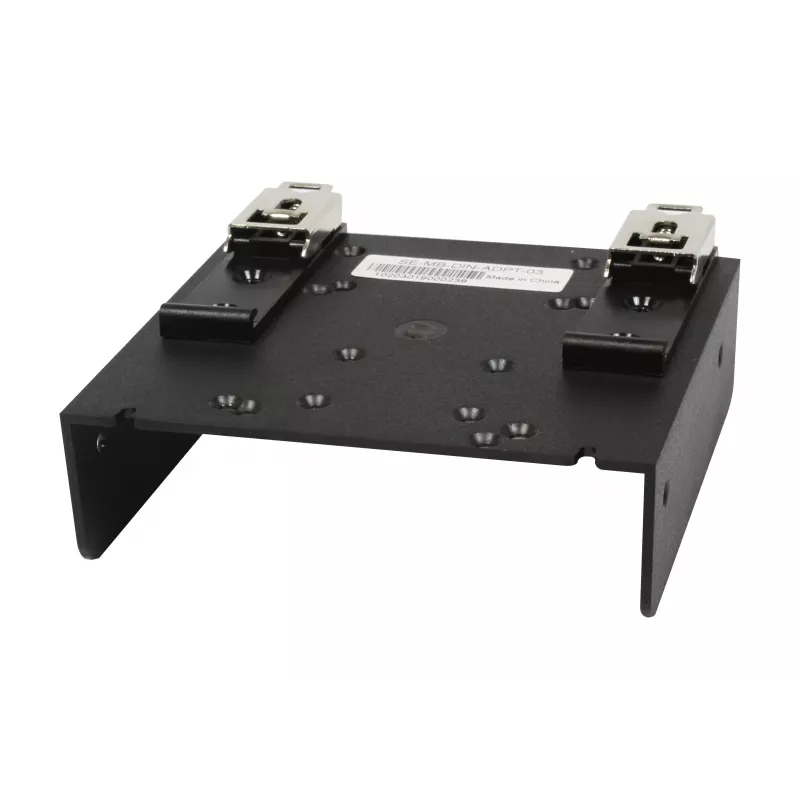

ALLNET RB supporto per guida DIN per Raspberry Pi 2B/3B/3B+/4B e Rock Pi

The ALLNET RB Hutschienenhalter is a high-quality DIN rail mount designed for single board computers like Raspberry Pi 2B, 3B, 3B+, 4B, and Rock Pi. It enables secure and tool-free mounting on standard 35mm DIN rails (EN 60715), making it ideal for industrial control, home automation, IoT, and server rack applications.

Advantages

Tool-free snap-on mechanism for quick installation on DIN rails. Open frame design ensures optimal airflow and passive cooling. Unrestricted access to all SBC ports including USB, Ethernet, HDMI, and GPIO. Robust ABS plastic construction for long-term durability in demanding environments.

Suitable for

• Raspberry Pi 2B, 3B, 3B+, 4B
• Rock Pi and other SBCs with compatible 4-point mounting pattern
• Industrial control cabinets
• Home automation systems
• IoT prototyping and server racks

Key specifications

• Product Type: DIN Rail Mount
• Compatible SBCs: Raspberry Pi 2B, 3B, 3B+, 4B, Rock Pi
• DIN Rail Standard: 35mm (EN 60715)
• Material: High-quality ABS Plastic
• Color: Black
• Mounting Method (DIN Rail): Tool-free snap-on
• Mounting Method (SBC): Secure screw-on (4 screws)
• Included Hardware: 4x M2.5 screws
• Port Access: Unrestricted
• Design: Open frame for cooling
• Number of Devices Supported: 1 SBC per mount
• Manufacturer Series: RB-Series

Recommendations

For optimal performance, ensure your SBC has a compatible 4-point mounting pattern. This mount is perfect for creating a professional and organized setup in control panels or server racks.
