ALLNET Rock Pi 4 adattatore eMMC a USB 3.0 (RockPi_EMMC2USB3.0)

Turn any standard eMMC module into a high-speed USB 3.0 drive with the ALLNET Rock Pi 4 eMMC to USB 3.0 Adapter. While typical adapters are limited to USB 2.0 speeds, this compact stick leverages SuperSpeed USB 3.0 for transfer rates up to 5 Gbps, dramatically reducing flashing and backup times. It is fully bus-powered and plug-and-play, requiring no drivers or external power, and works seamlessly with Radxa Rock Pi eMMC modules as well as standard eMMC modules. The built-in LED indicator provides clear power and activity status, while the 11-pin eMMC socket ensures a secure, reliable connection.

Highlights

• USB 3.0 (USB 3.2 Gen 1) host interface with Type-A male connector
• Supports standard 11-pin eMMC modules, including Radxa Rock Pi eMMC
• SuperSpeed data transfer up to 5 Gbps
• Bus-powered – no external power supply needed
• Plug and play – no drivers required, OS independent
• LED indicator for power and activity
• Hot-swappable USB connection
• Compact USB stick style design

In daily use

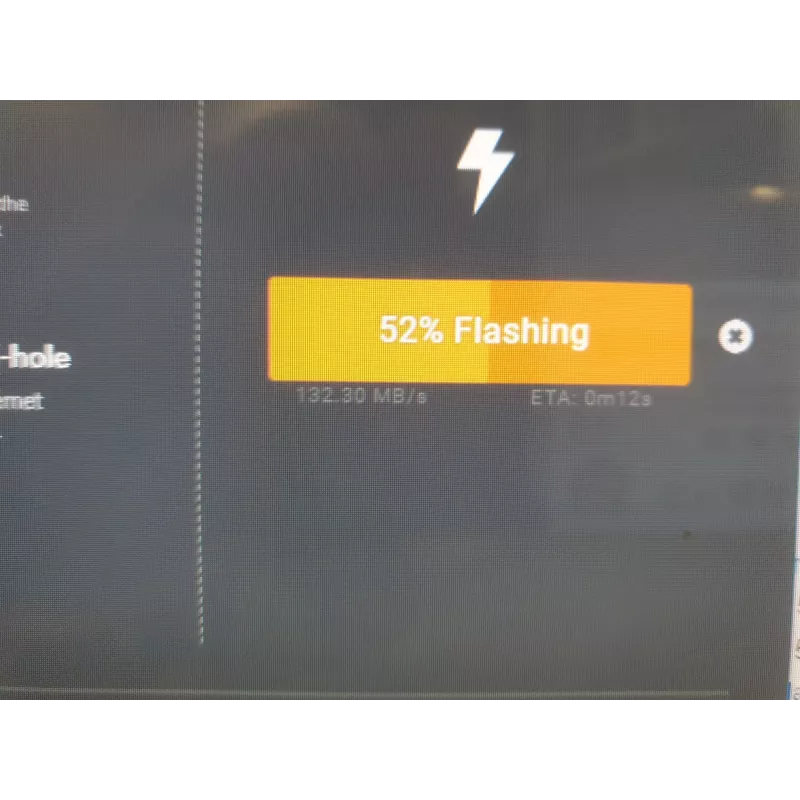

Connect the adapter to any USB 3.0 port on your computer, insert an eMMC module into the socket, and it appears as a standard USB mass storage device. You can flash OS images, clone modules, or run read/write diagnostics with ease. Whether you are preparing a Rock Pi 4 for deployment, recovering data from an eMMC module, or testing modules without a dedicated reader, this adapter delivers professional-grade performance in a pocket-sized form factor.

Full specifications

• Adapter Type: eMMC to USB 3.0
• Host Interface: USB 3.0 Type-A Male
• Device Interface: eMMC Socket (Standard)
• USB Standard: USB 3.0 (USB 3.2 Gen 1)
• Max Data Transfer Rate: Up to 5 Gbps (SuperSpeed)
• Power Source: USB Bus Powered
• Compatibility: Radxa Rock Pi eMMC Modules, Standard eMMC Modules
• Function: Read, Write, and Flash eMMC Modules
• Operating System Support: OS Independent (Plug & Play)
• LED Indicator: Yes (Power/Activity)
• Hot-Swappable: Yes (USB connection)
• Material: PCB, Plastic, Metal
• Color: Green (PCB)
• Application: OS Flashing, Data Backup, eMMC Module Testing
• Input Voltage: 5V DC (via USB)
• Output Voltage (eMMC): 3.3V DC
• eMMC Connector Type: 11-pin eMMC socket
• Driver Requirement: None (Standard USB Mass Storage Device)
• Form Factor: Compact USB Stick Style

Final note

Professional eMMC management in your pocket – flash, back up, and test with USB 3.0 speed.
