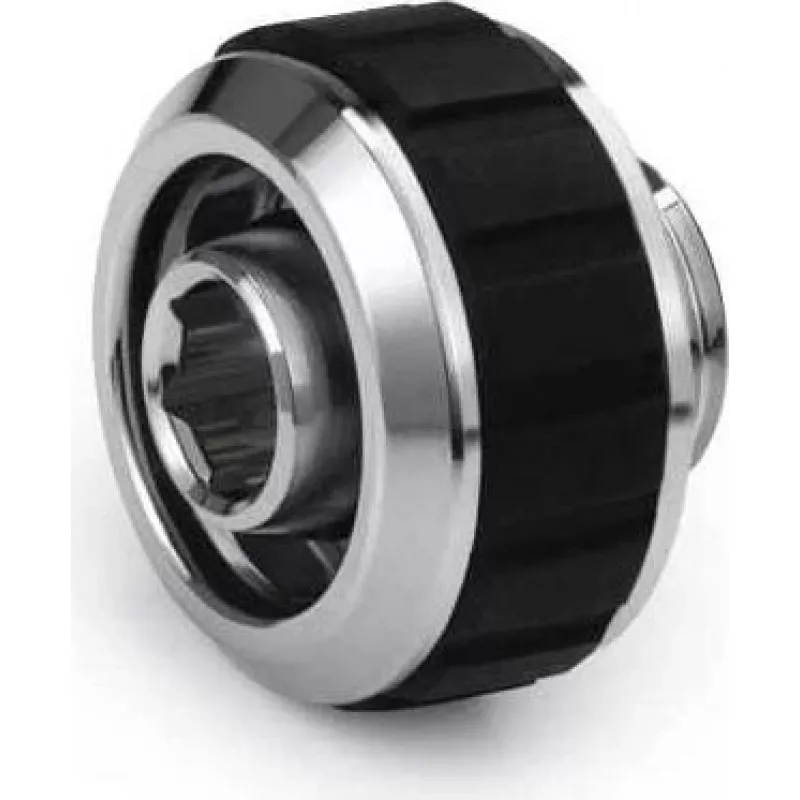

Alphacool Apex Grip raccordo a compressione 16/10mm G1/4 cromato 14882

Leaking tubing connections are the most common failure point in custom water cooling loops. The Alphacool Apex Grip compression fitting eliminates that risk with a secure, tool-free grip on 16/10mm soft tubing and a reliable G1/4 thread. Its chrome-plated brass body delivers both durability and a clean, professional look.

Who is it for

PC enthusiasts and system builders who demand leak-free performance from their water cooling loop. Ideal for anyone using 16/10mm soft tubing (PVC, TPV, silicone, or EPDM) and needing a straight, non-rotary connection with a standard G1/4 port.

Main features

• Compression fitting for 16mm outer diameter, 10mm inner diameter soft tubing
• Standard G1/4" thread fits radiators, blocks, pumps, and reservoirs
• Solid brass construction with chrome plating for corrosion resistance
• NBR O-rings ensure a tight, reliable seal
• Hand-tighten installation – no special tools required
• Straight, non-rotary design for compact, clean routing

Specifications

• Fitting type: Compression fitting
• Tube compatibility: 16mm OD / 10mm ID soft tubing
• Thread size: G1/4"
• Material: Brass, chrome plated
• Color: Chrome
• Angle: Straight
• Rotary function: No
• Seal material: NBR O-rings
• Thread length: 5 mm
• Overall height: 22 mm
• Max diameter: 23 mm
• Recommended tubing material: PVC, TPV, Silicone, EPDM
• Pressure tested: Yes
• Quantity per pack: 1

Tips

For a perfect seal, cut the tubing end square and push it fully onto the barb before tightening the compression ring. Hand-tighten firmly; do not use pliers as this may damage the fitting or O-ring. Always leak-test your loop for at least 24 hours before powering on the system.
