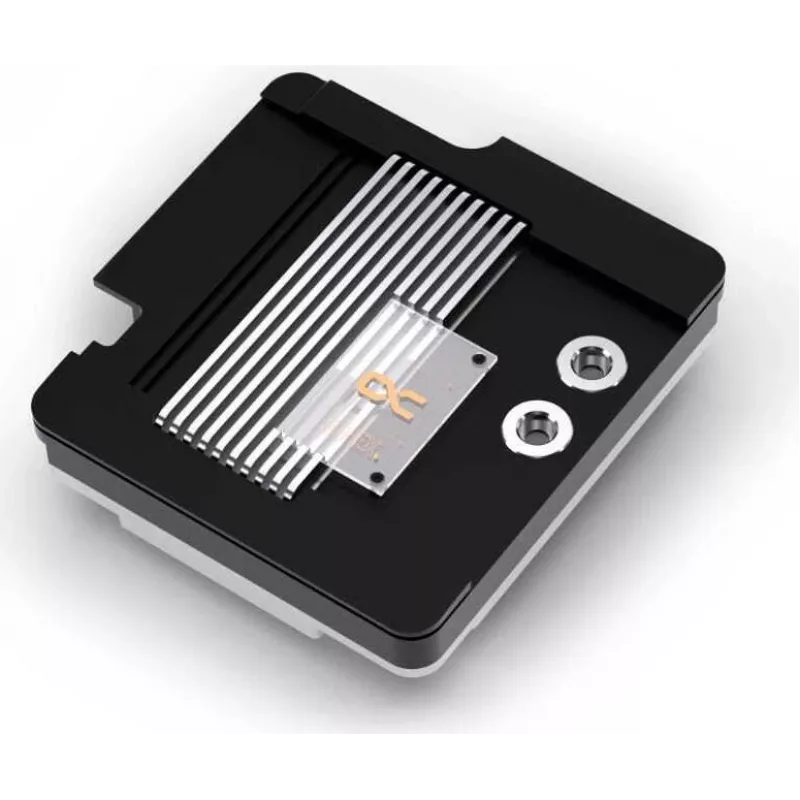

Alphacool Apex Monoblock ASUS ProArt X870E-Creator WiFi AM5 dissipatore ad acqua CPU/VRM/M.2

The Alphacool Apex Monoblock for the ASUS ProArt X870E-Creator WiFi takes a different path from generic CPU blocks by integrating the entire motherboard cooling chain into a single precision-machined unit. Instead of juggling separate blocks for the processor, voltage regulators, and M.2 drives, this monoblock routes coolant across all three heat sources simultaneously, simplifying loop design while boosting thermal headroom for sustained workloads.

Highlights

• One-piece cooling for AMD AM5 CPU, VRM, and two M.2 SSDs
• Nickel-plated copper base with optimized microfin structure for high flow and heat transfer
• High-quality acrylic top and acetal terminal with four G1/4" ports
• Digital RGB lighting via 3-pin JST connector (5V)
• Includes aluminum backplate, thermal paste, thermal pads, and mounting hardware

In daily use

This monoblock shines in compact ATX builds where a clean, uncluttered loop matters as much as raw cooling. The parallel flow design keeps the CPU and VRM temperatures balanced, while the two M.2 slots stay well below throttling thresholds even under heavy NVMe traffic. The acrylic top gives a clear view of coolant movement, and the aRGB lighting can be synced with your motherboard or controller for a cohesive look.

Full specifications

• Motherboard compatibility: ASUS ProArt X870E-Creator WiFi
• CPU socket: AMD AM5
• Cooling coverage: CPU, VRM, 2x M.2 SSDs
• Base plate material: Nickel-plated copper
• Top material: High-quality acrylic
• Terminal material: Acetal
• Connection threads: 4x G1/4"
• RGB lighting: Digital RGB (aRGB), 3-pin JST connector, 5V
• Microfin structure: Optimized for high flow and heat transfer
• Backplate: Included, aluminum
• Thermal paste and pads: Included
• Mounting hardware: Included
• Flow path design: Optimized parallel flow
• Dimensions (L x W x H): 290 x 140 x 30 mm

Final note

For builders who want maximum cooling coverage with minimal loop complexity, the Alphacool Apex Monoblock is a compelling choice — it replaces three separate blocks and keeps your ProArt X870E-Creator WiFi running cool under pressure.
