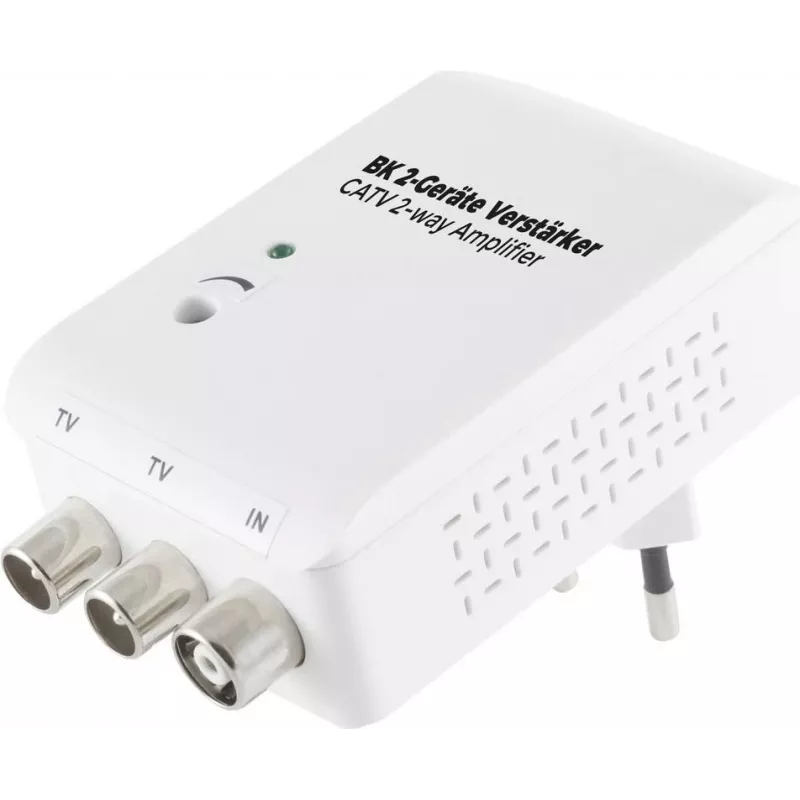

Amplificatore a doppia antenna SHIVERPEAKS S/CONN Maximum Connectivity, 20 dB, IEC (15-15002)

For homes where a single antenna feed must serve multiple receivers without signal loss, the SHIVERPEAKS S/CONN maximum connectivity dual antenna amplifier delivers a clean 20 dB boost across two IEC outputs. Unlike passive splitters that halve the signal, this active unit maintains full strength on both lines, making it a practical fix for DVB-T/T2, DVB-C, and FM radio distribution in flats, houses, or small offices. The adjustable gain lets you fine-tune reception to match your local conditions, while the metal housing and high shielding factor keep interference out of the signal path.

Highlights

• Dual IEC outputs with 20 dB adjustable gain for stable multi-room TV and radio reception
• Wide frequency range 47–862 MHz covers VHF, UHF, DVB-T/T2, DVB-C, and FM
• Low noise figure below 4 dB preserves weak signals without adding hiss
• High shielding factor >85 dB and return loss >10 dB ensure clean, reflection-free amplification
• Wall-mountable metal housing with integrated 230 V AC power supply for tidy installation

In daily use

Connect your rooftop or indoor antenna to the F-socket input, then run two coaxial cables to separate TVs or set-top boxes. The amplifier automatically compensates for cable and splitter losses, so both rooms get a strong, stable picture even in fringe reception areas. The gain control allows you to reduce amplification if the signal is already strong, preventing overloading of tuners. A power LED shows the unit is active, and the compact metal case can be screwed to a wall behind a TV or in a distribution cabinet.

Full specifications

• Product type: Antenna amplifier
• Gain: 20 dB (adjustable)
• Frequency range: 47–862 MHz
• Number of outputs: 2
• Input connector: 1x F-socket
• Output connectors: 2x IEC male (plug)
• Impedance: 75 Ohm
• Power supply: 230 V AC, 50 Hz
• Power consumption: 3 W
• Noise figure: < 4 dB
• Max output level: 100 dBµV
• Shielding factor: > 85 dB
• Return loss: > 10 dB
• Application: DVB-T/T2, DVB-C, FM Radio
• Mounting type: Wall mountable
• Housing material: Metal
• LED indicators: Power
• Manual: Yes

Final note

The SHIVERPEAKS 15-15002 is a straightforward, reliable solution for splitting one antenna signal to two receivers without compromise. Its robust build and adjustable gain make it a long-term fix for poor reception in multi-room setups.
