Amplificatore audio Omnitronic 80709719 Performance/Palco nero

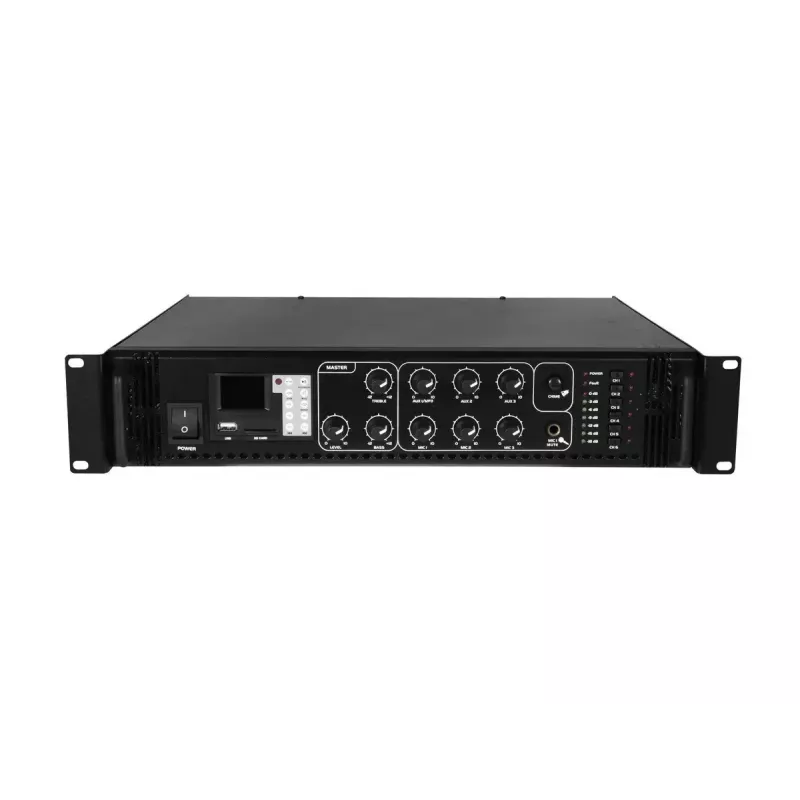

The Omnitronic MPZ-120.6P ELA mixer amplifier is a 19" rack-mount unit designed for electronic low‑voltage (ELA) public address and background-music systems. It provides outputs for 70 V and 100 V transformer‑coupled ELA loudspeakers as well as for 4–16 Ω low impedance speakers, supports six mixable inputs (up to 3 microphones and 3 line‑level sources) and includes an integrated MP3 player with USB and SD card slots and an infrared remote control.

Advantages

The MPZ-120.6P combines flexible zone control with multiple input options: six mixable channels and six switchable zone outputs on the front panel allow independent routing to different speaker areas. The wide output compatibility (70 V, 100 V and 4–16 Ω) covers both transformer‑coupled ELA loudspeakers and low‑impedance speakers. Integrated USB/SD MP3 playback with a blue backlit LCD and remote control enables convenient media playback without extra external players.

Suitable for

Key specifications

How to use

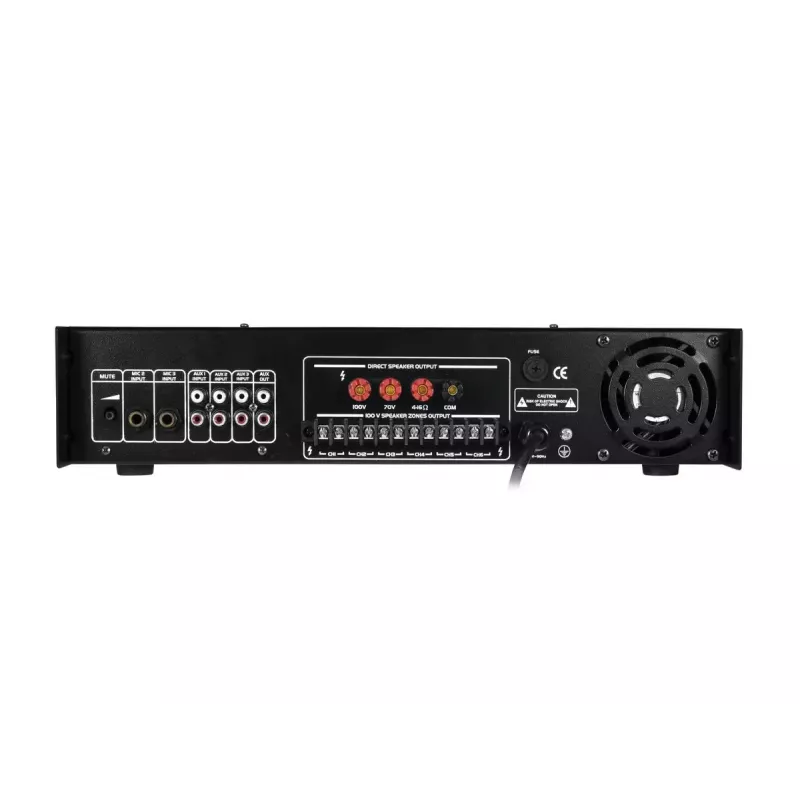

Install the MPZ-120.6P in a 19" rack or place it on a flat surface. Connect microphones and line sources to the input channels and route each channel as required. Use the front-panel switches to activate or mute any of the six zone outputs for independent distribution to different speaker groups. Connect speakers to the appropriate output type (70 V/100 V transformer outputs for ELA speakers or 4–16 Ω output for low‑impedance speakers). Use the USB port or SD slot and the included infrared remote to play MP3 files displayed on the blue backlit LCD.

Recommendations

For reliable operation and to match speaker load, verify total line impedance or transformer tap settings before powering the amplifier. Use quality shielded microphone and line cables to reduce interference and place the unit in a ventilated rack space to ensure adequate cooling.
