Amplificatore audio Texas Instruments OPA541AP, 125 W, monocanale, 20,3×4,62×17,6 mm

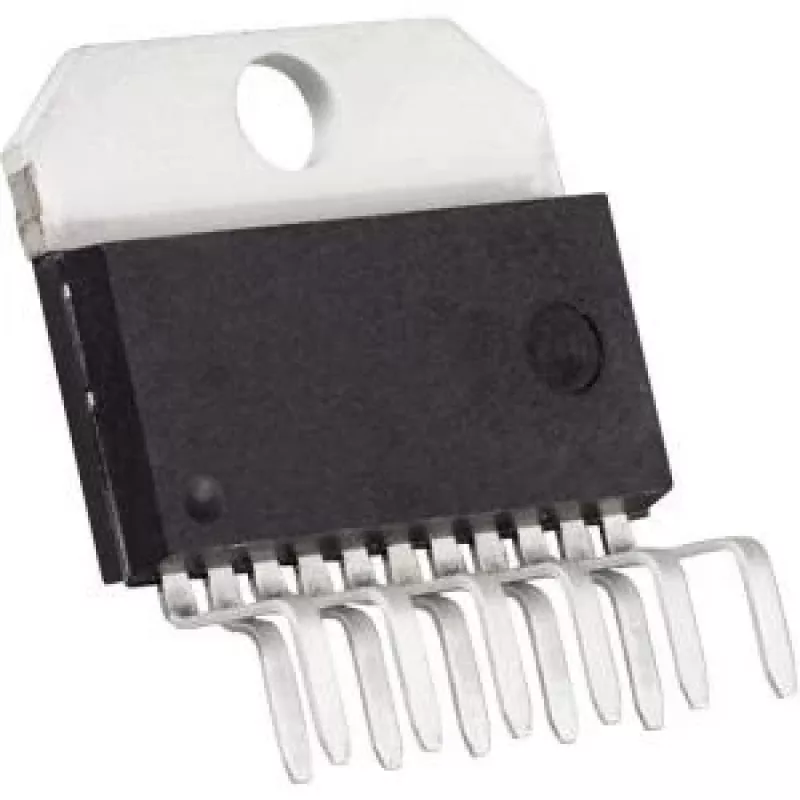

Texas Instruments OPA541AP is a single-channel power operational amplifier rated for high-power audio applications with a maximum output power of 125 W. The device is supplied in a compact power plastic package with nominal dimensions 20.3 × 4.62 × 17.6 mm and is designed to drive speakers and loads that require continuous high current. The amplifier supports supply rails up to ±40 V and can deliver continuous output currents up to 5 A. Internal protection and a user-programmable current-limit function allow reliable operation in demanding audio and industrial environments.

Advantages

The OPA541AP integrates a single current-limit resistor topology which sets both positive and negative current limits, simplifying design and eliminating the need for separate limit resistors in hybrid amplifier replacements. The device combines bipolar and FET process technology for robust output stage performance and stable operation under heavy loads. The power plastic package features a copper-lead frame to improve heat transfer for better thermal management, while an alternate industry-standard TO-3 hermetic package option provides isolated mounting to a heatsink when required.

Suitable for

• Professional audio power stages and single-channel amplifiers
• Speaker drivers and active monitor modules
• Power conditioning stages in audio equipment and instrumentation
• Replacement of hybrid power amplifiers requiring a single current-limit setting

Key specifications

• Output power rating: 125 W (single-channel applications)
• Supply voltage range: up to ±40 V
• Continuous output current: up to 5 A
• Package dimensions: 20.3 × 4.62 × 17.6 mm (power plastic package)
• Internal user-programmable current-limit via single external resistor
• Process technology: proprietary bipolar and FET fabrication
• Thermal features: copper-lead frame for improved heat transfer; TO-3 option allows isolated heatsink mounting

How to use

Install the OPA541AP following standard amplifier PCB layout guidelines to ensure adequate thermal dissipation and to minimize parasitic inductance and resistance in output paths. Configure the supply rails up to ±40 V as required by your application, observing absolute maximum ratings. Set the desired current limit by selecting a single external resistor connected to the current-limit pin, which programs both positive and negative current limits simultaneously. Provide appropriate decoupling capacitors close to the supply pins and follow datasheet recommendations for input compensation and stability with reactive speaker loads.

Recommendations

Use a heatsink or ensure sufficient copper area on the PCB for thermal dissipation when operating near the device's current and power limits. Verify the programmed current-limit resistor value on a prototype under expected load conditions to prevent false triggering or insufficient protection. For installations requiring direct heatsink mounting, consider the TO-3 hermetic package option to avoid additional insulating hardware.
