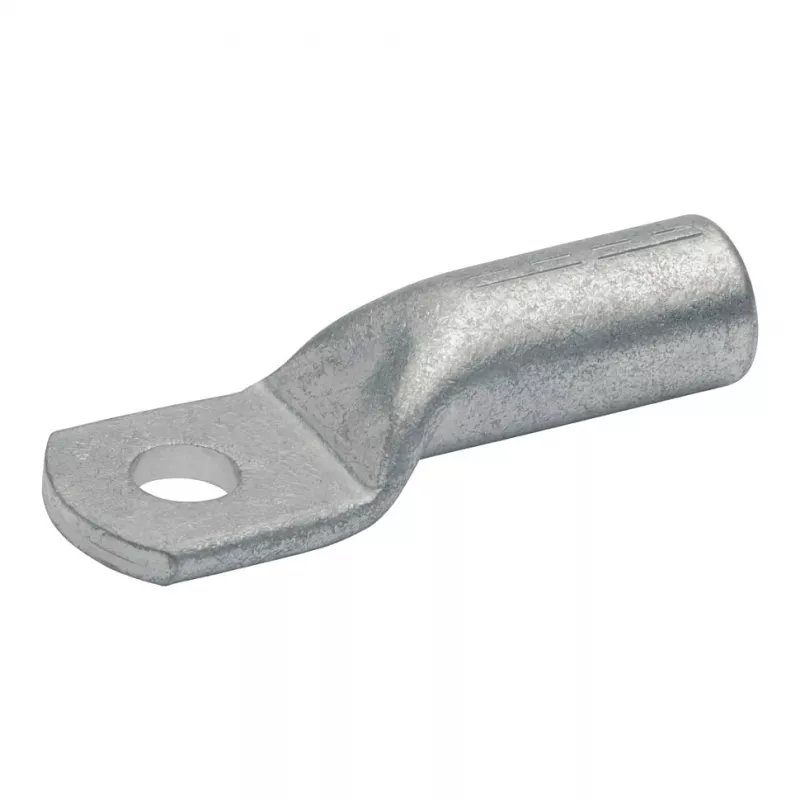

Gustav Klauke 108R8 Capocorda a compressione 95mm² rame stagnato elettroliticamente DIN 46235

This compression cable lug from Gustav Klauke provides a robust, low-resistance termination for 95 mm² copper conductors. The electro-tinned surface guarantees lasting corrosion resistance and excellent electrical conductivity, making it a dependable choice for permanent crimped connections.

Advantages

Engineered from seamless electrolytic copper tube and galvanically tinned, this lug offers superior protection against oxidation while ensuring a secure, gas-tight crimp. Its funnel-shaped entry simplifies conductor insertion, reducing installation time and error.

Suitable for

• Power distribution systems
• Industrial wiring and control panels
• Switchgear and transformer connections
• Earthing and bonding applications

Key specifications

• Cable cross-section: 95 mm²
• Bolt hole diameter: M8
• Material: Electrolytic copper (E-Cu)
• Surface: Electro-tinned
• Standard: DIN 46235
• Non-insulated, seamless tube construction
• Temperature range: -55°C to +150°C

Recommendations

Use with a calibrated crimping tool matched to the lug barrel size. Ensure the conductor is fully inserted and the crimp die is correct for 95 mm². Inspect the crimp visually to confirm a consistent indentation.
