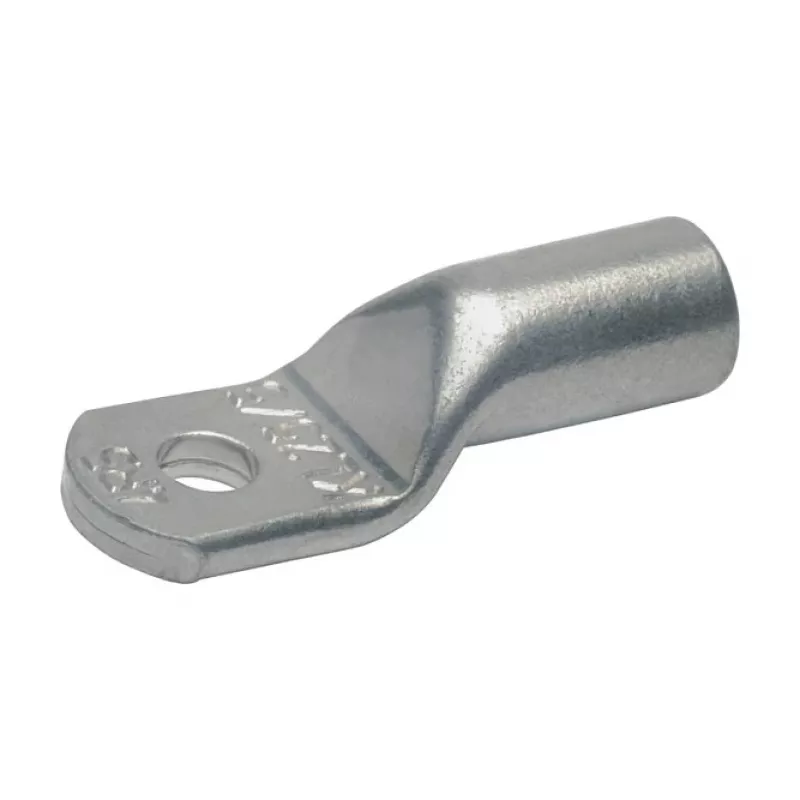

Gustav Klauke 11R12 Capocorda in rame con intaglio, 185 mm², M12

Engineered for high-conductivity connections, the Gustav Klauke 11R12 is a copper crimp cable lug that delivers reliable performance for 185 mm² conductors. With a 13 mm bolt hole compatible with M12 hardware, this lug ensures a secure and durable electrical connection in demanding industrial environments.

Overview

The Klauke 11R12 is a notched barrel cable lug manufactured from high-purity electrolytic copper (E-Cu). It is designed for stranded conductors of Class 2, 5, and 6, providing flexibility for various wiring applications. The untreated bare copper surface guarantees optimal electrical conductivity, while the notched barrel design enhances crimping grip and mechanical strength after hexagonal crimping.

What stands out

• Electrolytic copper construction for excellent conductivity
• Notched barrel design improves crimp reliability
• M12 bolt size compatibility with a 13 mm hole diameter
• Suitable for 185 mm² stranded conductors
• Operates reliably from -40 °C to +150 °C
• RoHS compliant for environmental safety

Technical details

• Product Type: Crimp Cable Lug
• Material: Electrolytic Copper (E-Cu)
• Conductor Cross-Section: 185 mm²
• Bolt Hole Diameter: 13 mm
• Bolt Size Compatibility: M12
• Conductor Material: Copper
• Conductor Type Compatibility: Stranded (Class 2, 5, 6)
• Surface Finish: Untreated / Bare Copper
• Barrel Design: Standard, Notched
• Crimping Recommendation: Hexagonal crimping
• Operating Temperature Range: -40 °C to +150 °C
• Inspection Hole: No
• Manufacturer Series: Klauke 11R Series
• Standards Compliance: RoHS Compliant
• Application: Electrical connections in industrial and commercial settings

Our verdict

The Klauke 11R12 combines high-purity materials with a proven notched barrel design, making it a dependable choice for professionals who require secure, long-lasting cable terminations.
