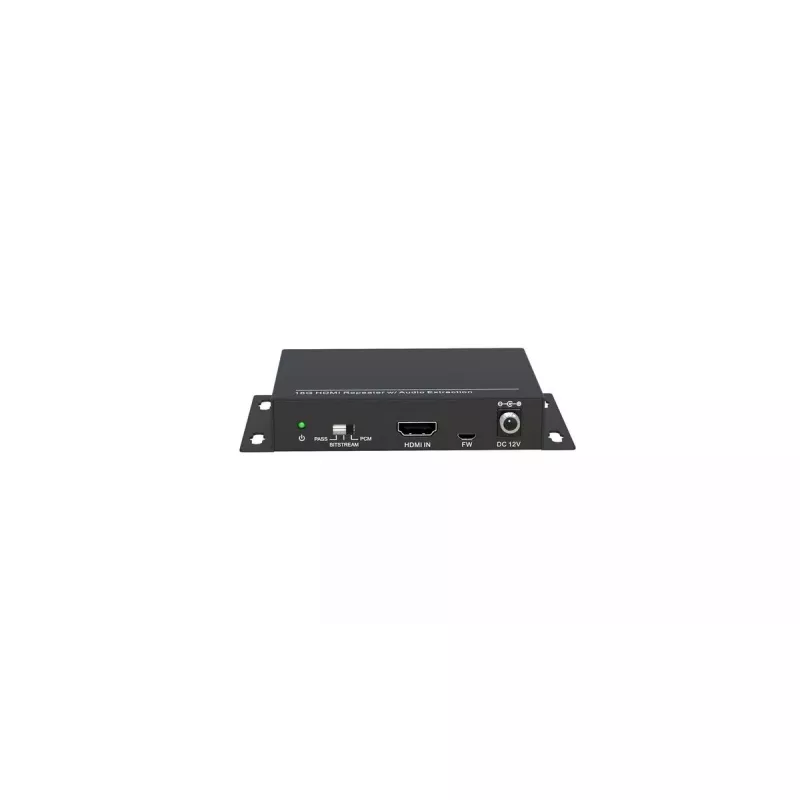

Amplificatore di linea video Vivolink VL120008 nero

The Vivolink VL120008 video line amplifier separates audio from an HDMI 18G signal while amplifying and passing the video. It provides HDMI repeater functionality with audio output options including unbalanced RCA, balanced audio, and coaxial output. The compact unit is intended for installations where video is routed to a monitor and audio is sent separately to an audio system or active speakers.

Advantages

The VL120008 boosts HDMI video to maintain signal integrity over longer cable runs and includes built-in audio extraction to feed external audio equipment. It supports high-bandwidth HDMI 18G signals, offers multiple audio output formats (RCA, balanced audio, coax), and is energy efficient with a typical power consumption of 3 W. Its small footprint allows placement near source devices or in AV racks.

Suitable for

• Separating sound from HDMI to feed an AV receiver or active speakers
• Sending video to a monitor while routing audio to a separate audio system
• Applications requiring HDMI signal regeneration over extended cable runs

Key specifications

• Model: Vivolink VL120008
• HDMI: HDMI 18G repeater with audio extraction

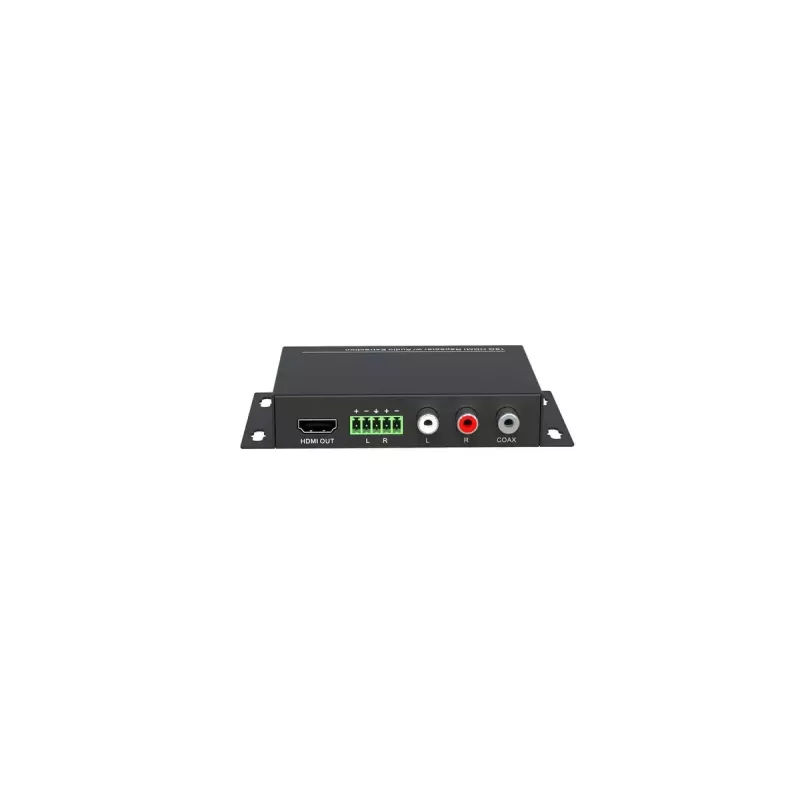

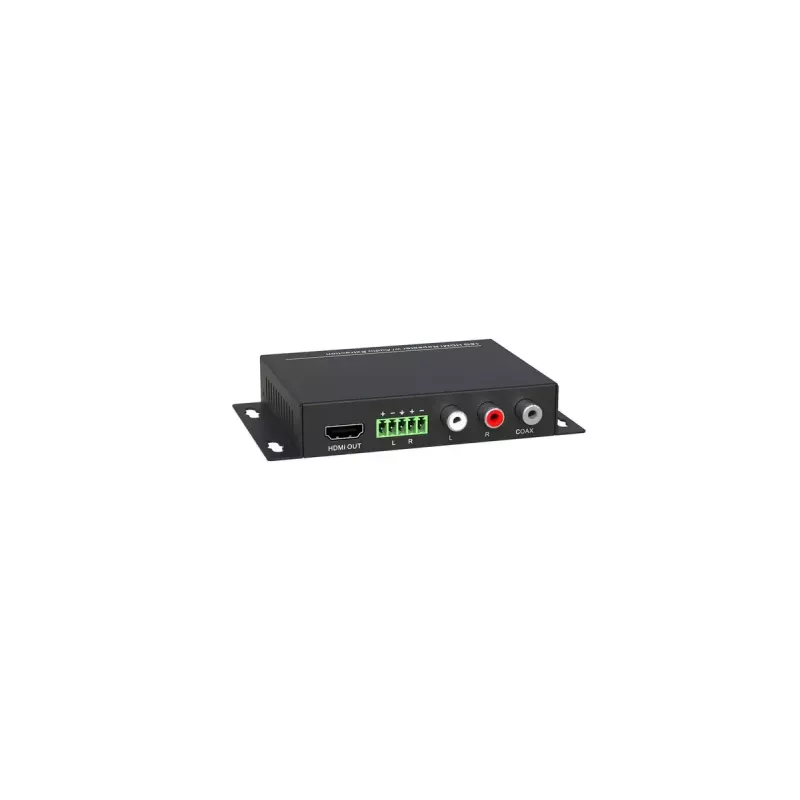

• Audio outputs: RCA (unbalanced), balanced audio, coaxial
• Dimensions: 197 x 148 x 68 mm (W × D × H)
• Power: AC 100–240 V, 50/60 Hz; typical power consumption 3 W
• Brand: VivoLink; MPN: VL120008; EAN: 5712505764879

How to use

Connect the HDMI source to the VL120008 input and connect the HDMI output to the display. Use the RCA, balanced, or coaxial audio outputs to feed your audio system or active speakers. Ensure the unit is powered from an appropriate AC outlet (100–240 V, 50/60 Hz). The device will pass video to the HDMI out while providing separate audio outputs.

Recommendations

Place the VL120008 close to the source device when possible to maximize HDMI signal quality, and use quality audio cables for the chosen audio output to avoid interference. Verify compatibility of audio formats with your receiving equipment.
