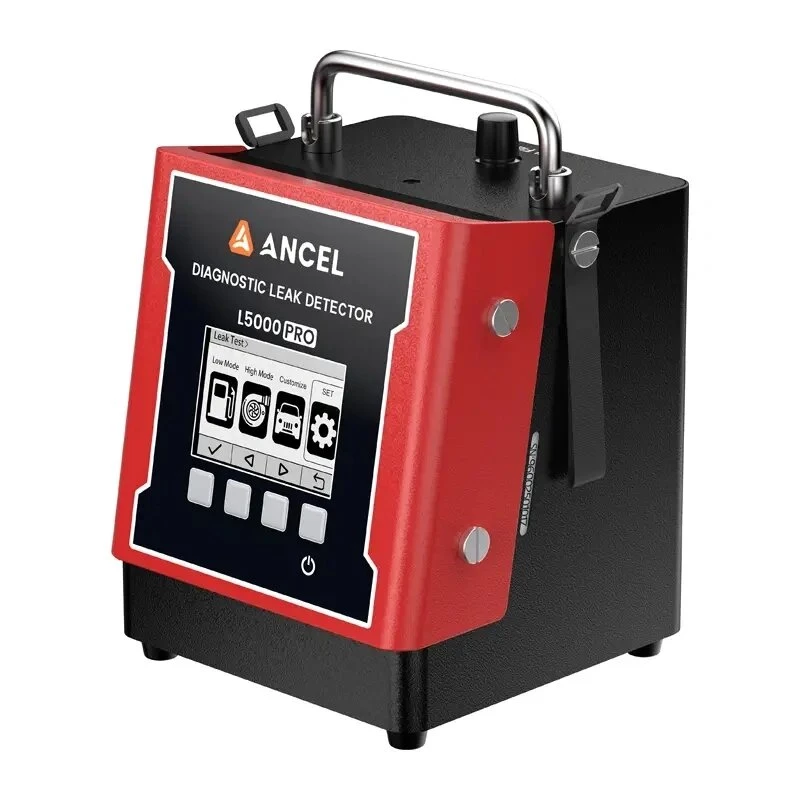

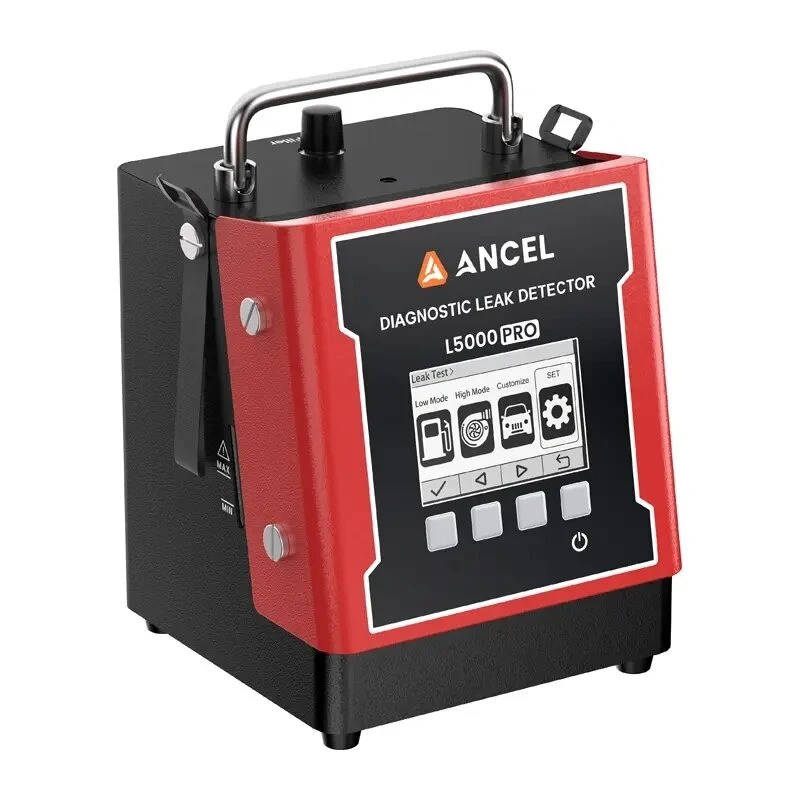

ANCEL L5000 PRO rilevatore di perdite diagnostico per sistemi auto - tester di perdite EVAP a fumo e pressione

In a busy workshop, a technician connects the ANCEL L5000 PRO to a vehicle's battery, presses one button, and within seconds smoke flows through the EVAP system to reveal the smallest leak. This diagnostic leak detector uses smoke and pressure to pinpoint leaks in EVAP, intake, exhaust, turbo, cooling, vacuum, fuel tank, crankcase, and various pipe fittings. With its built-in air pump and 0.5 PSI output, it delivers consistent smoke at 6 L/min, making even hard-to-find leaks visible. The compact ABS housing and metal components ensure durability, while the single-button operation and indicator lights keep the process straightforward.

Key specifications

• Leak detection method: Smoke & pressure
• Output pressure: 0.5 PSI (0.034 bar)
• Output flow rate: 6 L/min
• Power supply: DC 12V from vehicle battery
• Smoke fluid capacity: 20 ml
• Smoke generation time: < 30 seconds
• Smoke hose length: 2.5 meters
• Operating temperature: -10°C to 40°C
• Safety protections: Overheat, low oil, anti-frost
• Certifications: CE, FCC, RoHS

Why choose it

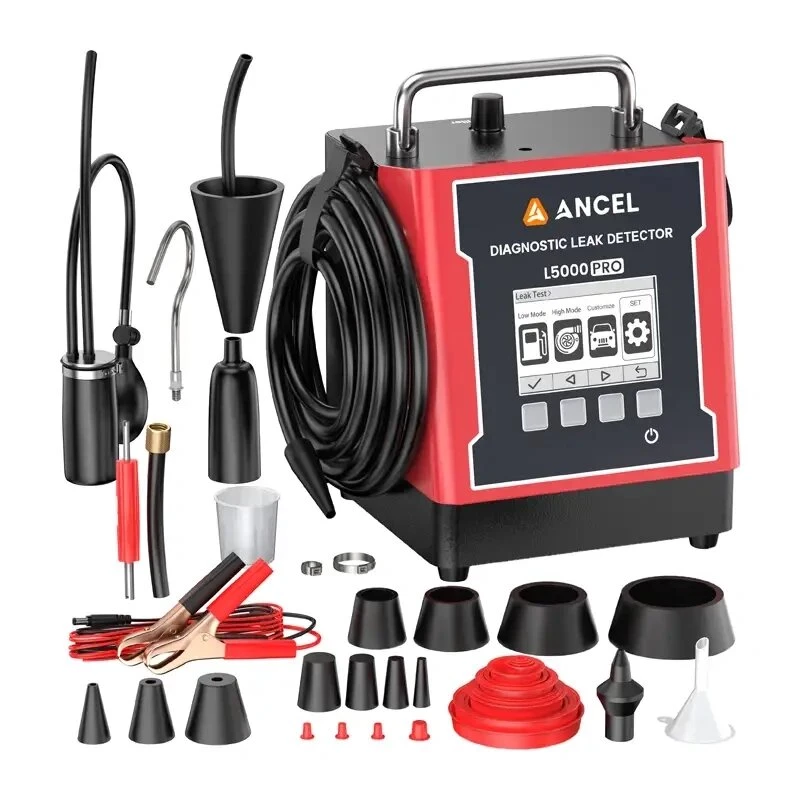

The ANCEL L5000 PRO stands out with its built-in air pump, so no external compressed air is needed. It works with common smoke fluids like mineral oil or baby oil, and the included accessories—power clamp cable, smoke delivery hose, rubber adapters, hard rubber cone adapter, EVAP special connector, and funnel—mean you can start testing right away. The quick connect adapter and 2.5-meter hose allow access to hard-to-reach areas, while the overheat, low oil, and anti-frost protections ensure safe operation.

Ideal use cases

• Detecting EVAP system leaks in passenger cars and light trucks
• Testing intake, exhaust, turbo, and cooling systems for leaks
• Checking vacuum lines, fuel tanks, and crankcase ventilation
• Professional workshops and DIY enthusiasts needing reliable leak diagnosis

Good to know

The L5000 PRO uses a 12V vehicle battery for power and reaches operating readiness in under 30 seconds. Its high-strength ABS housing withstands workshop conditions, and the included adapters cover a wide range of vehicle fittings. Always use approved smoke fluid and follow the manual for optimal results.
