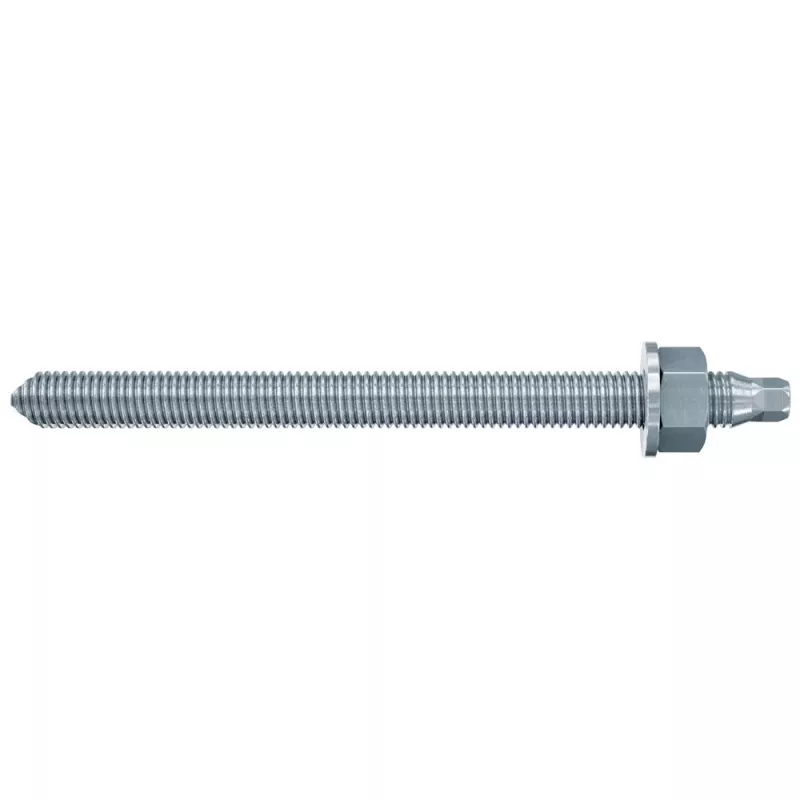

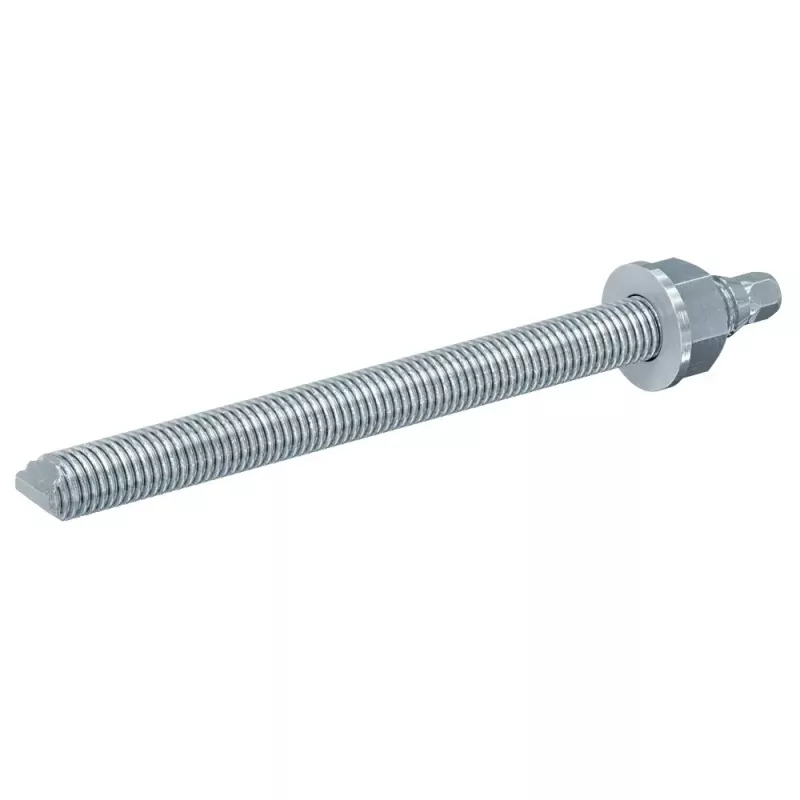

Ancorante filettato Fischer RG M 10 pz.

The fischer threaded anchor RG M is a zinc-plated steel anchor rod (grade 5.8) designed for use with fischer mortar capsules and injection mortars in concrete and similar substrates. Supplied in a pack of 10, the RG M anchor rod is intended for secure, single-point fixings where a mechanical anchor combined with adhesive mortar provides reliable load transfer. The product is compatible with pre-portioned resin capsules and with bulk injection mortar systems and is suitable for internal applications such as machine fixings and steelwork supports.

Advantages

The zinc-plated steel (grade 5.8) construction offers corrosion resistance appropriate for many internal applications. The anchor rod is a system component specifically made to work with fischer resin capsules and injection mortars, enabling controlled activation of the mortar during setting. Using pre-portioned capsules keeps consumption predictable and can be more economical for single fixings. The product pack contains 10 rods to cover small to medium projects.

Suitable for

• Fixing machines and equipment to concrete
• Fastening steelwork constructions and supporting feet
• Point-fixings where adhesive mortar is required
• Internal applications where zinc-plated anchors are acceptable

Key specifications

• Brand: FISCHER
• Model: RG M (anchor rod)
• Material: Zinc-plated steel, grade 5.8
• Pack quantity: 10 pieces
• Drill hole diameter (recommended): 18 mm (1.8 cm) — as per product information
• MPN: 50287
• EAN: 4006209502877

How to use

When using pre-portioned fischer resin capsules, drill the hole to the recommended diameter and depth, insert the capsule, then place the RG M anchor rod into the hole. Set the rod by rotating and applying light blows with a hammer drill so the capsule breaks and the resin mixes and activates. When using injection mortar, drill the hole, inject the mortar according to the mortar manufacturer's instructions, then push the anchor rod into the hole while lightly rotating it to ensure full contact with the adhesive compound. Allow the specified curing time for the chosen mortar before applying loads.

Recommendations

Use the RG M anchor rods with the fischer mortar capsules or injection mortars recommended by the manufacturer. Ensure drill hole size and embedment depth match the mortar and anchor specifications. For external or highly corrosive environments, select an anchor with appropriate corrosion protection. Follow all safety and installation instructions supplied with the adhesive mortar.
