Fischer SX Plus Green 8x40 S K Tassello a espansione con vite, 10 pezzi (567864)

The fischer SX Plus Green 8 x 40 S K is a blister card holding 10 expansion plugs and 10 matching screws - everything needed to put up a shelf, a light fitting or a curtain rail, without hunting for the right screw. The plug body is made of at least 50 % renewable raw materials, which is what the Green in the product name stands for.

Advantages

The plug expands in four directions, so the load is transferred evenly into the building material and the holding values stay high in both solid and perforated substrates. Fixing blades grip the screw before it is driven in, leaving both hands free during installation. The expansion-free plug neck keeps expansion pressure away from the surface, which helps protect tiles and plaster.

Package contents

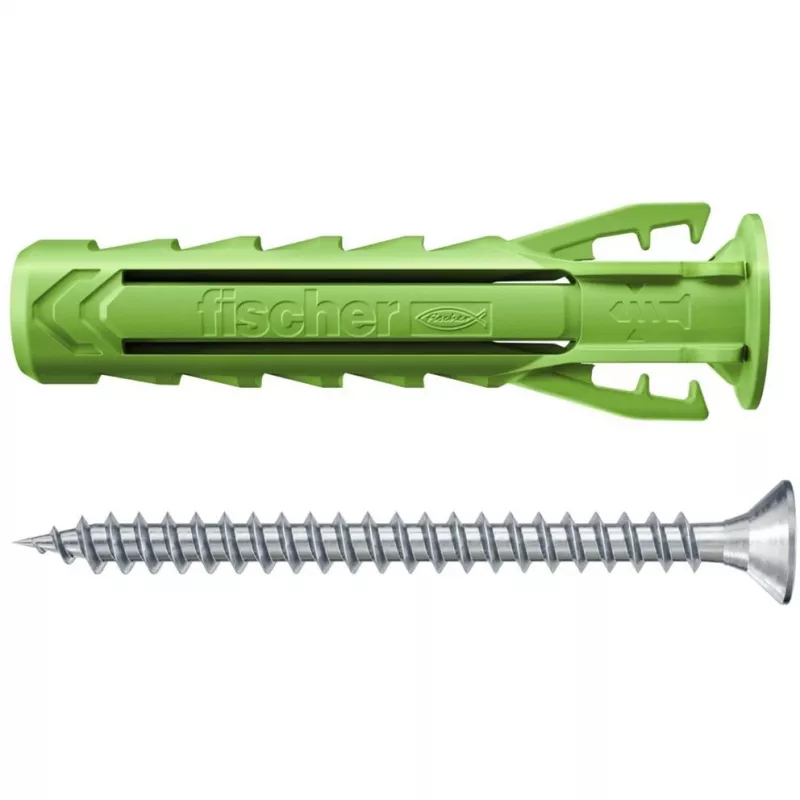

• 10 x expansion plug SX Plus Green 8 x 40 mm (green)
• 10 x chipboard screw 5.0 x 55 mm, countersunk head, PZ2 drive, zinc-plated steel

Key specifications

• Manufacturer article number: 567864
• Plug diameter / length: 8 x 40 mm
• Drill hole diameter: 8 mm
• Minimum drill hole depth: 60 mm
• Minimum anchoring depth: 45 mm
• Max. fixture thickness: 10 mm
• Screw: 5.0 x 55 mm chipboard screw, PZ2
• Pack quantity: 10 plugs + 10 screws (blister card)
• Plug material: nylon with at least 50 % renewable raw materials
• Max. load as printed on the pack: 31 / 25 / 17 / 3 kg depending on the base material
• Made in Germany

Suitable base materials

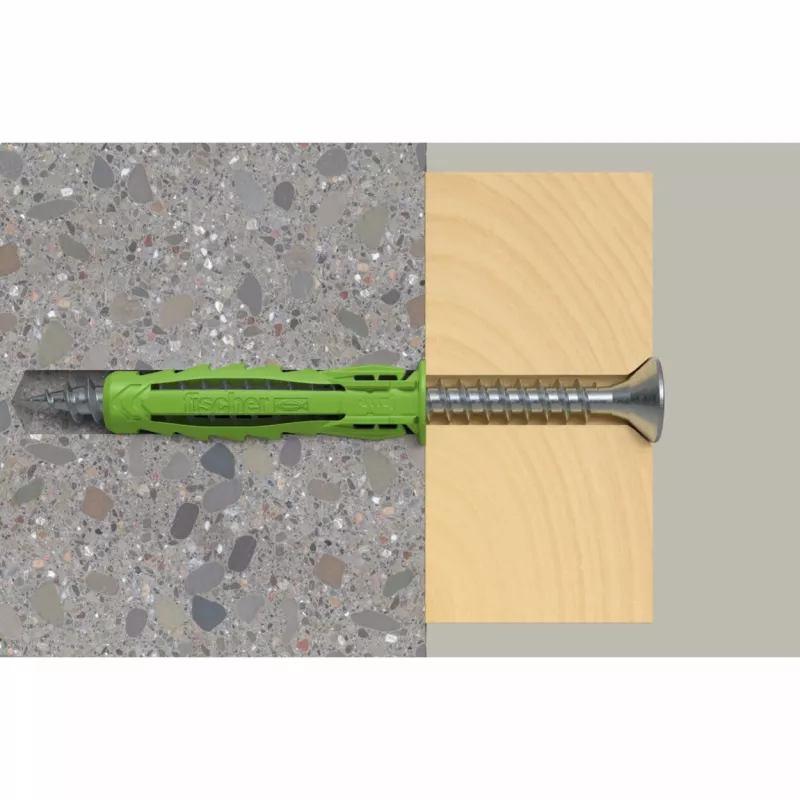

• Concrete
• Solid brick
• Solid sand-lime brick

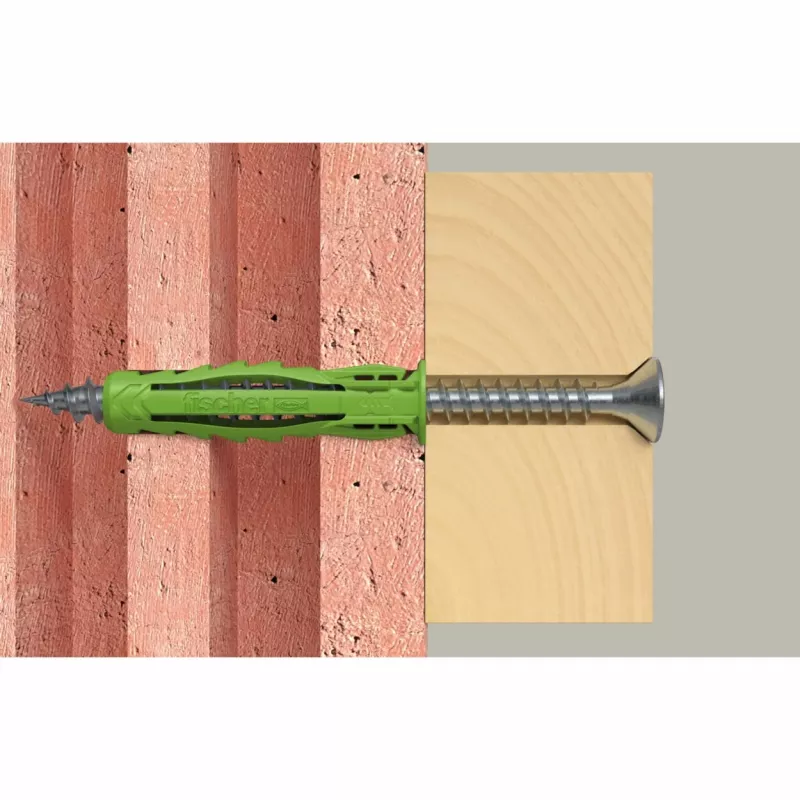

• Vertically perforated brick
• Perforated sand-lime brick
• Aerated concrete
• Plasterboard
