Anker SOLIX V1 Versione a presa Caricatore EV smart 11 kW 16 A Type 2

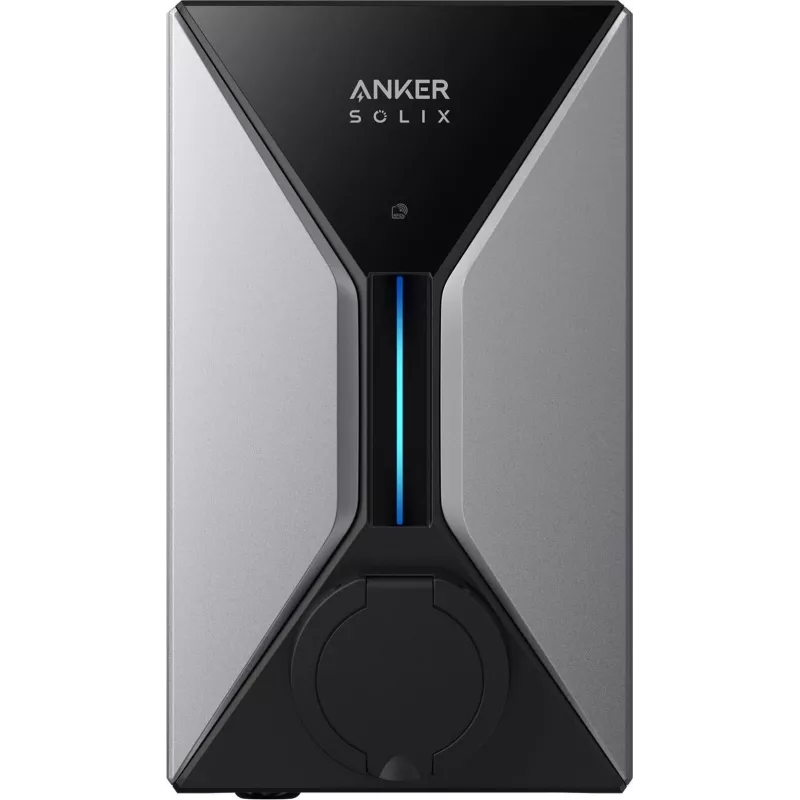

The Anker SOLIX V1 Socket Version is a smart electric vehicle charging station designed for residential and commercial use. With 11 kW charging power and 16 A current, it supports 3-phase 400 V AC input and features a Type 2 socket connector (IEC 62196-2). The charger is wall-mounted, IP55 rated, and IK10 impact resistant, ensuring durability in various environments.

Advantages

Smart connectivity via Wi-Fi, Bluetooth, and Ethernet allows control through the Anker App. Integrated dynamic load management and solar overload charging optimize energy usage. The built-in 6 mA DC fault current detection enhances safety. Energy metering and scheduling features provide detailed usage insights.

Suitable for

• Home EV charging with smart scheduling
• Commercial parking lots requiring robust, weather-resistant chargers
• Integration with solar systems for green energy charging

Key specifications

• Charging Power: 11 kW (3-phase)
• Max Charging Current: 16 A
• Connector: Type 2 Socket (IEC 62196-2)
• Input Voltage: 400 V AC
• Frequency: 50 Hz
• Protection Rating: IP55
• Impact Resistance: IK10
• Connectivity: Wi-Fi (2.4 GHz), Bluetooth, Ethernet
• Smart Features: Anker App Control, Dynamic Load Management, Solar Overload Charging, Scheduling
• DC Fault Current Detection: 6 mA
• Mounting: Wall-mounted
• Operating Temperature: -30°C to +50°C
• Energy Metering: Integrated
• Authentication: Anker App

Recommendations

For optimal performance, ensure a 3-phase 400 V AC supply. Use the Anker App for setup and monitoring. Suitable for outdoor installation due to IP55 rating.
