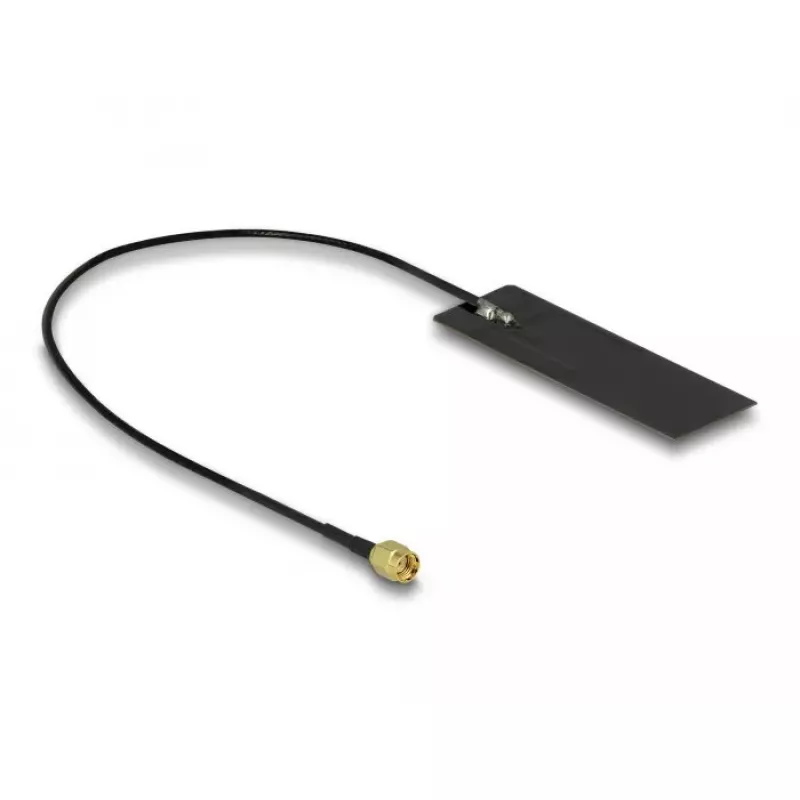

Antenna DeLOCK 12649 RP-SMA 4 dBi 2,4 5 GHz 50 Ω

The DeLOCK 12649 is a compact indoor WLAN antenna that supports both 2.4 GHz and 5 GHz frequency bands. It has a fixed gain of 4 dBi, an RP-SMA connector and a characteristic impedance of 50 Ω; the antenna is supplied with a short 0.15 m cable and is finished in black. With dimensions of 14 mm width and 44.5 mm depth, it is intended for use with compatible wireless devices that accept RP-SMA antenna connections.

Advantages

The DeLOCK 12649 provides dual-band coverage for 2.4 GHz and 5 GHz networks in a compact housing. Its RP-SMA connector enables straightforward connection to routers, access points or wireless adapters that use RP-SMA interfaces. The 4 dBi gain offers a modest signal improvement for indoor networking scenarios while the 50 Ω impedance matches standard WLAN equipment.

Suitable for

• Extending or replacing external antennas on routers and access points with RP-SMA female sockets
• Use with wireless USB adapters or PCIe wireless cards that accept RP-SMA
• Indoor WLAN setups operating on 2.4 GHz and 5 GHz bands

Key specifications

• Gain: 4 dBi
• Frequency bands: 2.4 GHz, 5 GHz
• Connector type: RP-SMA
• Impedance: 50 Ω
• Cable length: 0.15 m
• Colour: Black
• Dimensions (W × D): 14 mm × 44.5 mm

How to use

Connect the antenna to a device with a matching RP-SMA male connector, ensuring the connector is compatible (RP-SMA). Position the antenna vertically for general indoor coverage and place it clear of large metal objects to reduce signal obstruction. Adjust the device location and antenna orientation to achieve the best signal reception for your network.

Recommendations

Use the antenna indoors only and verify compatibility with your wireless device’s connector type and impedance. For optimal performance, mount it where there is minimal obstruction and avoid placing it directly behind large metal surfaces or dense objects.
