Antenna DeLOCK 86136

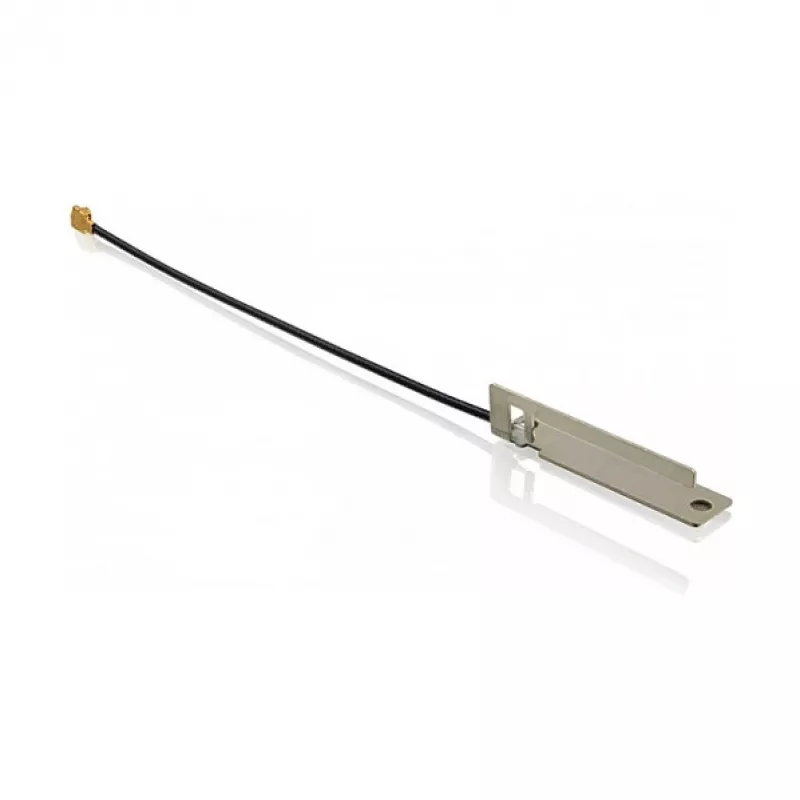

The DeLOCK 86136 wireless LAN antenna connects to WLAN devices with an I-PEX interface to receive and improve wireless signals. It is compact (25 mm × 6 mm × 6.3 mm), operates in the 2.4–2.5 GHz band and includes a 0.06 m cable. The antenna has a specified gain level of -5 dBi, suitable for short-range signal reception and small devices where space is limited.

Advantages

The antenna's small form factor makes it easy to integrate into compact equipment. Its I-PEX connector provides compatibility with devices that use this interface standard. The included short cable allows flexible placement within enclosures or near device antenna ports while the design targets reliable reception in the 2.4–2.5 GHz Wi‑Fi band.

Suitable for (tasks / use cases)

• Embedded WLAN modules with I-PEX connectors
• Small routers, IoT devices and single-board computers requiring compact external antennas
• Short-range signal reception in the 2.4–2.5 GHz band

Key specifications

• Model: DeLOCK 86136
• Frequency range: 2.4 - 2.5 GHz
• Antenna gain (max): -5 dBi
• Dimensions: 25 mm × 6 mm × 6.3 mm
• Cable length: 0.06 m
• Connector: I-PEX (for WLAN devices)
• Brand: DELOCK
• MPN: 86136
• EAN: 4043619861361

How to use

Connect the antenna's I-PEX connector to the matching port on your WLAN device. Position the antenna inside the device enclosure or close to the device port using the supplied 0.06 m cable. Ensure the antenna is oriented for optimal reception and that the device's antenna port is compatible with I-PEX. Power on the WLAN device and verify signal reception through the device's wireless diagnostics or network settings.

Recommendations

Use this antenna for short-range 2.4 GHz Wi‑Fi applications and in installations where space is limited. Avoid placing the antenna near large metal surfaces or sources of interference to maintain best possible reception.
