Antenna di rete DeLOCK 89619

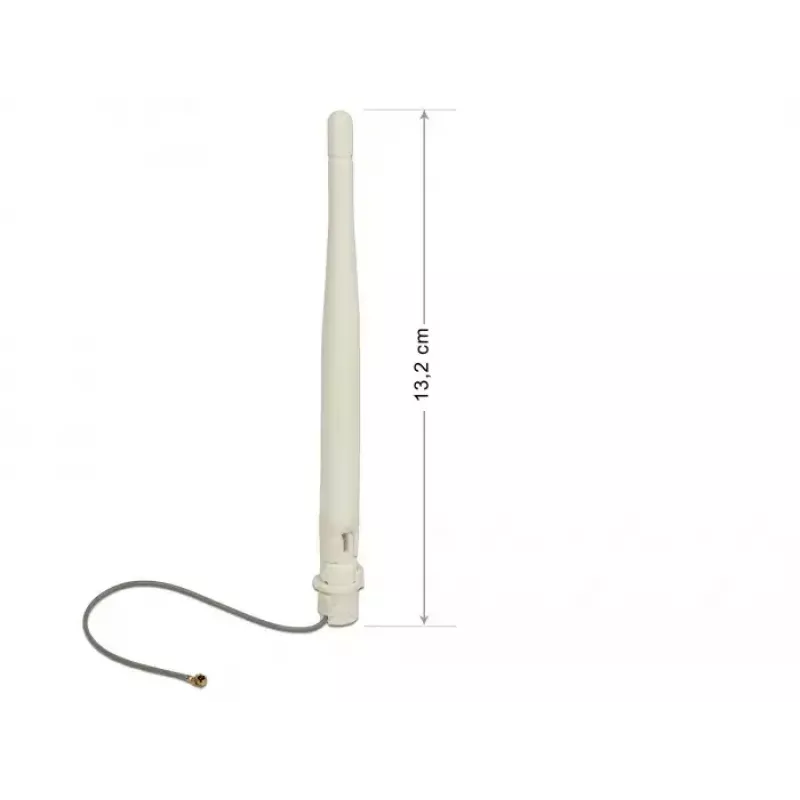

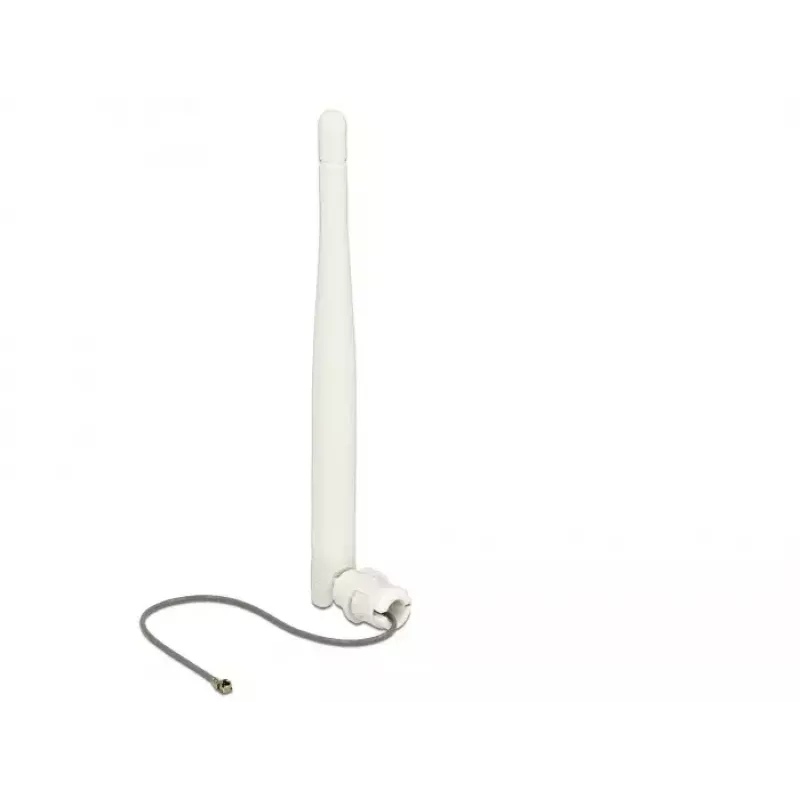

The DeLOCK 89619 network antenna operates in the 2.4–2.5 GHz band and provides a 3 dBi gain to improve wireless signal coverage. Designed for indoor and outdoor use, the antenna has a 50 Ω impedance, linear polarization and an MHF male connector. It measures 132 mm in height and is supplied as a single unit in a polybag, suitable for extending or stabilizing connections for Bluetooth, WLAN (2.4 GHz), ZigBee and other 2.4 GHz ISM applications.

Advantages

The antenna offers a compact 132 mm form factor with a 3 dBi gain that helps increase signal reach without requiring a large installation footprint. Its 50 Ω impedance and MHF male connector ensure compatibility with many wireless modules and devices operating in the 2.4 GHz band. The white finish provides a discreet appearance for indoor or outdoor placement.

Suitable for

Key specifications

How to use

Install the MHF male connector into the corresponding MHF female socket on the target device or extension cable, ensuring a secure and properly aligned connection. Position the antenna vertically for standard linear polarization and optimal omnidirectional coverage in typical installations. Verify device settings and test signal strength after installation to confirm improved coverage.

Recommendations

Place the antenna away from large metal objects and sources of electromagnetic interference for best performance; for outdoor use ensure any mating connectors and device ports are adequately protected from moisture and weather.
