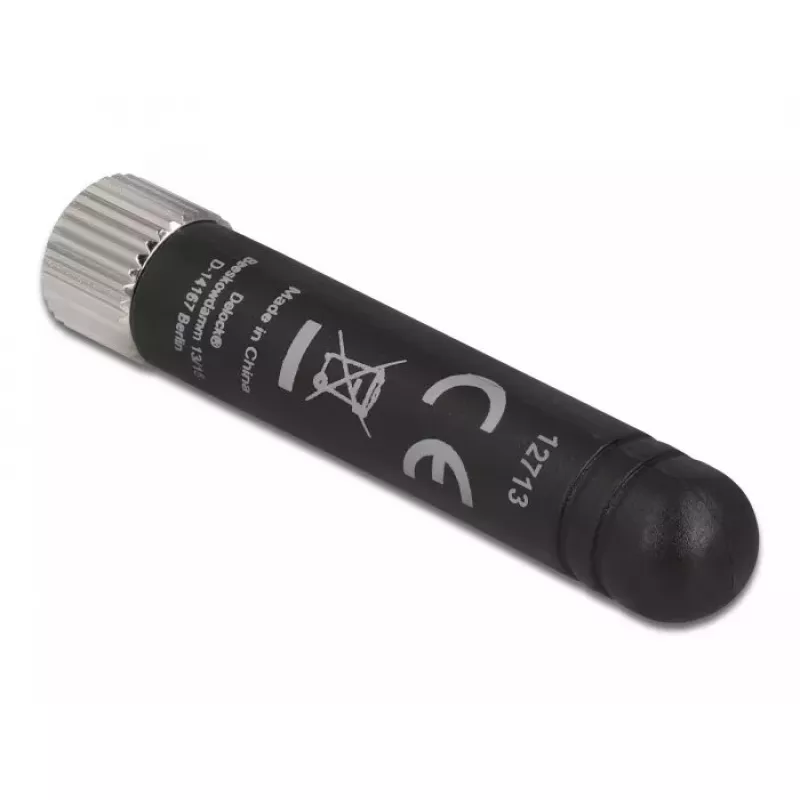

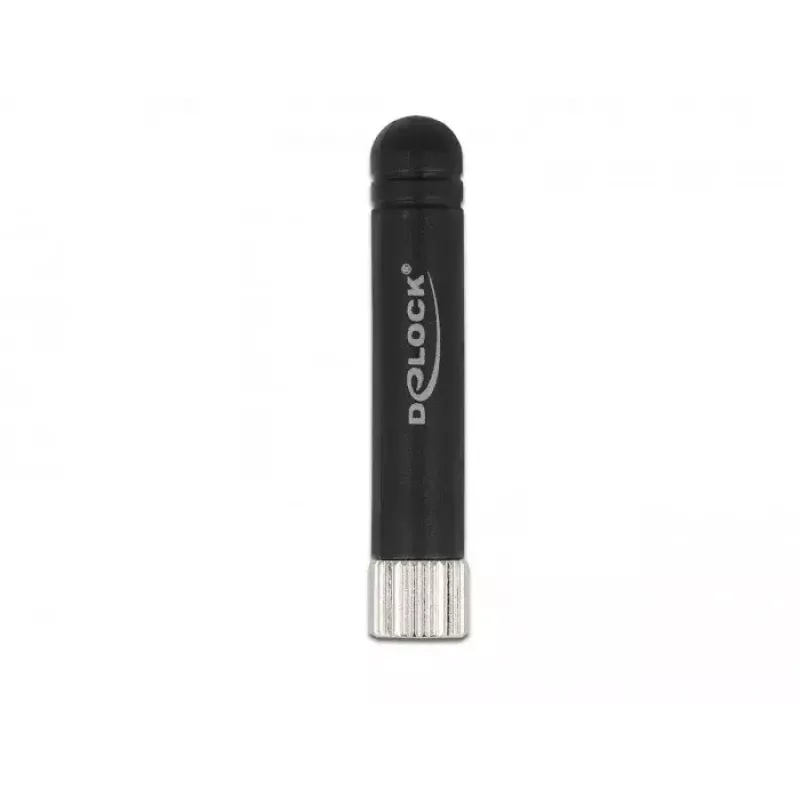

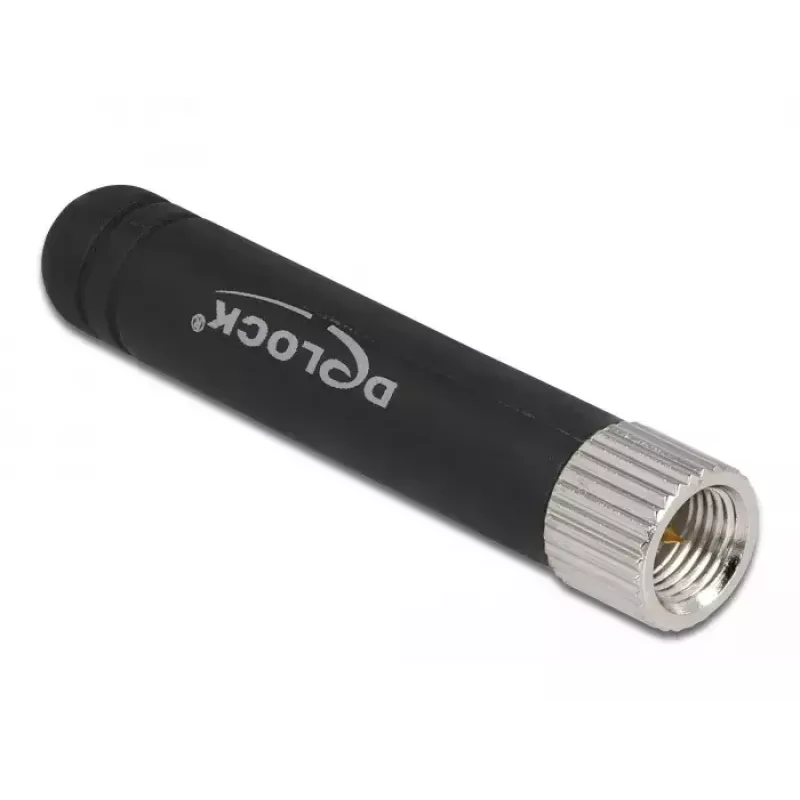

Antenna omnidirezionale DeLOCK 12713

The DeLOCK 12713 omni-directional antenna operates in the 868 MHz band (0.86–0.87 GHz) and provides an antenna gain of 1.6 dBi with 50 Ω impedance. Fitted with a female SMA connector and finished in black, it is suitable for enhancing reception and transmission for compatible devices in both indoor and outdoor environments.

Advantages

The antenna offers omnidirectional coverage to improve signal stability in multiple directions, a compact gain of 1.6 dBi for modest range extension, and a standard 50 Ω impedance for broad device compatibility. The female SMA connector enables straightforward connection to equipment with a matching male SMA interface.

Suitable for

• IoT devices and sensors operating in the 868 MHz band
• Wireless modems and gateways requiring external antennas
• Indoor and outdoor installations where omnidirectional coverage is needed

Key specifications

• Frequency band: 0.86 - 0.87 GHz
• Antenna gain (max): 1.6 dBi
• Impedance: 50 Ω
• Connector: female SMA
• Colour: Black

How to use

Attach the antenna to a device with a male SMA connector by screwing the female SMA connector onto the device’s antenna port. Position the antenna vertically for typical omnidirectional coverage. For outdoor use, ensure the connector and device are suitably protected from moisture according to the device manufacturer’s guidelines.

Recommendations

Place the antenna away from large metal objects and sources of interference to maintain optimal reception. If permanent outdoor installation is required, use appropriate weatherproofing measures around the connector and mounting point.
