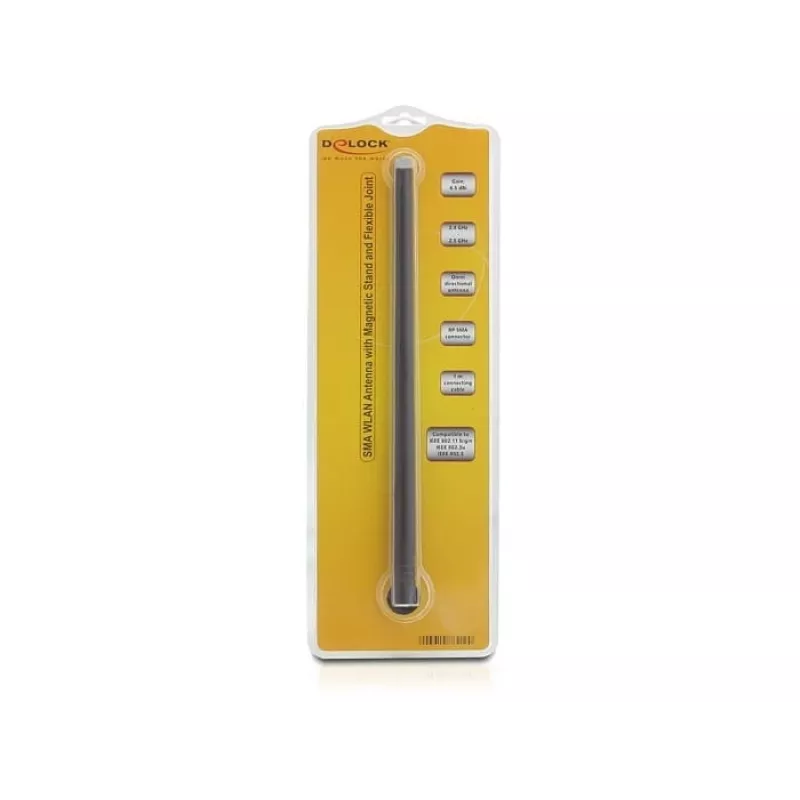

Antenna omnidirezionale DeLOCK 88410

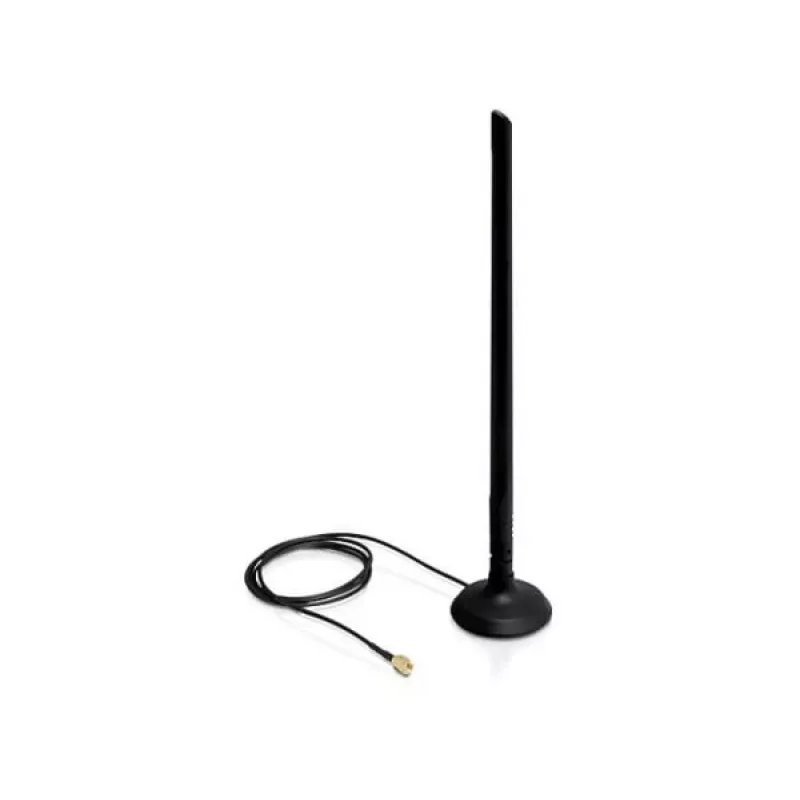

The DeLOCK 88410 omni-directional antenna is designed to improve wireless LAN signal transmission and reception for devices with an SMA interface. Operating on the 2.4 GHz and 5 GHz bands with a maximum gain of 6.5 dBi, the antenna includes an RP-SMA connector and a 1 m cable. Its 298 mm height, flexible three-stage tilt and magnetic stand allow adaptable placement to optimise coverage.

Advantages

The antenna supports IEEE 802.11b/g/n and IEEE 802.3 standards, offering compatibility with common Wi‑Fi equipment. The 6.5 dBi gain increases signal reach compared with standard rubber‑duck antennas, while the RP‑SMA connector and 1 m cable provide simple connection and flexible positioning. The magnetic base and adjustable tilt enable stable mounting on metal surfaces and directional adjustment without tools.

Suitable for

• Extending Wi‑Fi coverage for routers, access points and wireless adapters with an SMA/RP‑SMA interface
• Small office and home networking where improved 2.4/5 GHz reception is needed
• Temporary setups or test environments requiring movable antenna placement

Key specifications

• Antenna type: omni‑directional
• Gain (max): 6.5 dBi
• Frequency bands: 2.4 / 5 GHz
• Connector: RP‑SMA
• Cable length: 1 m
• Height: 298 mm
• Colour: black
• Stand: magnetic with three‑stage flexible tilt

How to use

Attach the RP‑SMA connector to the SMA/RP‑SMA port on your router, access point or wireless adapter. Position the magnetic base on a clean metal surface or place it on a non‑metal surface using the base as support. Adjust the antenna angle using the three flexible tilt stages to find the best reception. Ensure the cable routing does not place strain on the connector.

Recommendations

For optimal performance, place the antenna as high and free from obstructions as possible, and test different tilt angles to identify the best orientation for your environment. Keep the cable away from power cables and large metal objects that can cause interference.
