Antenna omnidirezionale Panorama Antennas DMM4-6-60 5 dBi SMA

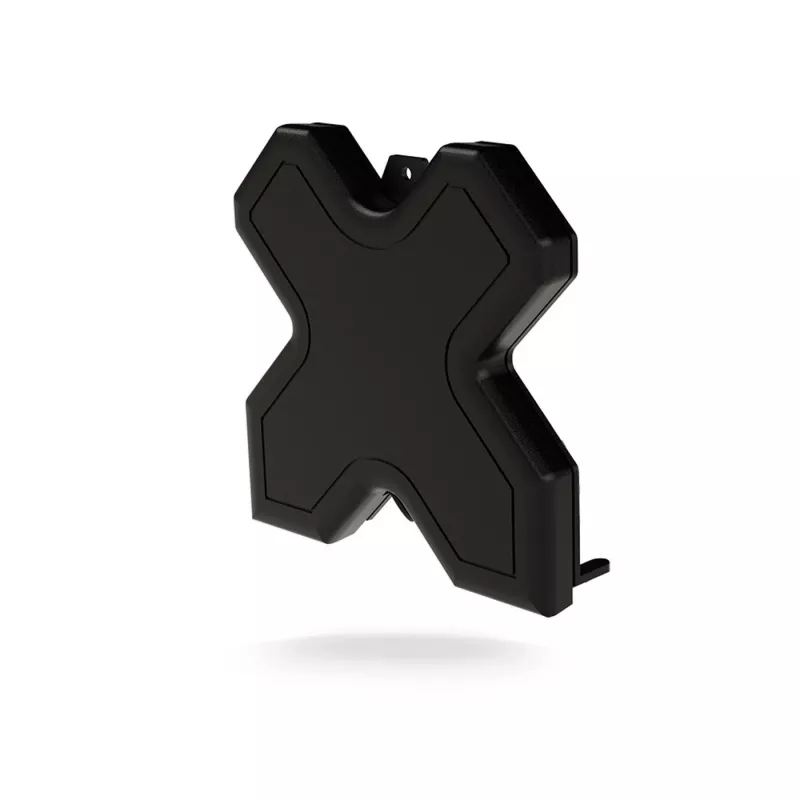

The Panorama Antennas DMM4-6-60 is a portable omni-directional antenna providing 4x4 MiMo support for 4G and 5G with fallback to 3G/2G. It integrates four individually fed ultra-wideband elements covering 0.617–0.96 GHz and 1.71–6.0 GHz in a single housing, making it suitable for Cat 18/20 4G and 5G devices. The antenna is supplied with two twinned 2 m coaxial cables and is available with SMA, TS9 or FAKRA D connectors.

Advantages

The DMM4-6-60 offers 4x4 MiMo capability in a compact, portable form factor and supports dual 2x2 MiMo operation for routers with dual modems. It features fold-out desk feet, a suction window mount for quick repositioning, and options for screw or adhesive pad mounting for more permanent installation. With a nominal gain of 5 dBi and a rugged black enclosure, the antenna provides improved data rates and a stable link for subscribers.

Suitable for

• Portable 4G/5G routers and customer-premises equipment requiring 4x4 MiMo
• Routers with dual modems needing two independent 2x2 MiMo systems
• Temporary or mobile installations using window suction or desk mounting
• Fixed installations where screw or adhesive mounting is preferred

Key specifications

• Frequency bands: 0.617–0.96 GHz and 1.71–6.0 GHz
• Antenna gain (max): 5 dBi
• Connector options: SMA (male), TS9, FAKRA D
• Supplied cables: two twinned 2 m coaxial cables
• Maximum power: 2 W
• Dimensions (W×D×H): 184 × 53 × 185 mm
• Colour: Black

How to use

Unfold the desk mount feet or attach the suction window mount to a clean glass surface to optimise signal reception. Connect the supplied twinned coaxial cables to the corresponding antenna ports on your router or modem using the selected connector type (SMA, TS9 or FAKRA D). For semi-permanent or permanent installation, use the provided screw holes or adhesive pad. Position the antenna vertically and adjust location until the desired signal quality is achieved.

Recommendations

Place the antenna near a window or elevated position away from large metal objects to maximise performance. Use the suction mount for temporary testing and switch to screw or adhesive mounting for long-term stability. Verify connector type compatibility with your device before installation.
