Antenna omnidirezionale QuWireless QuSpot

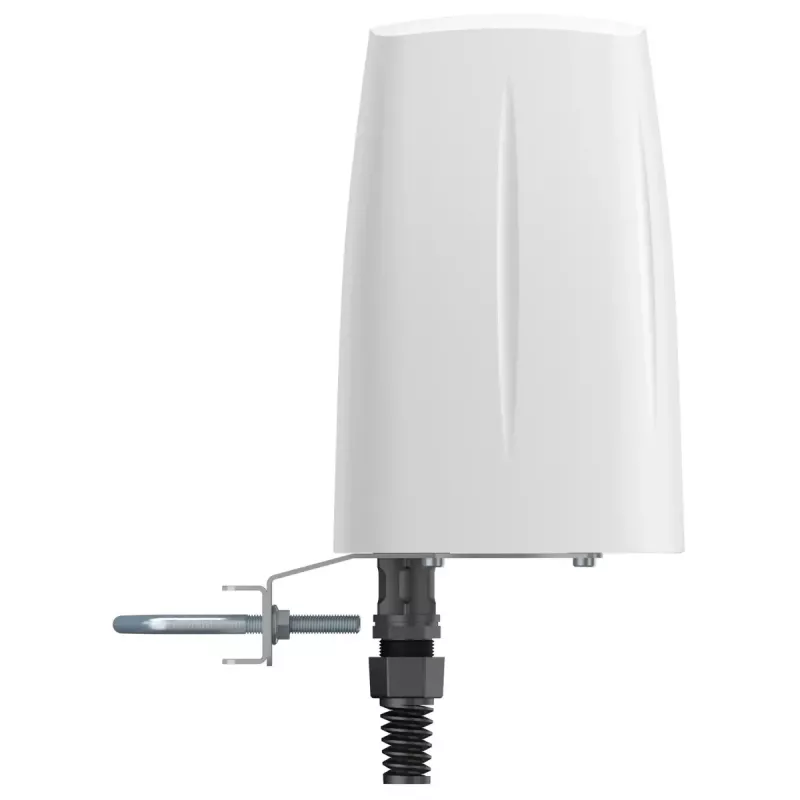

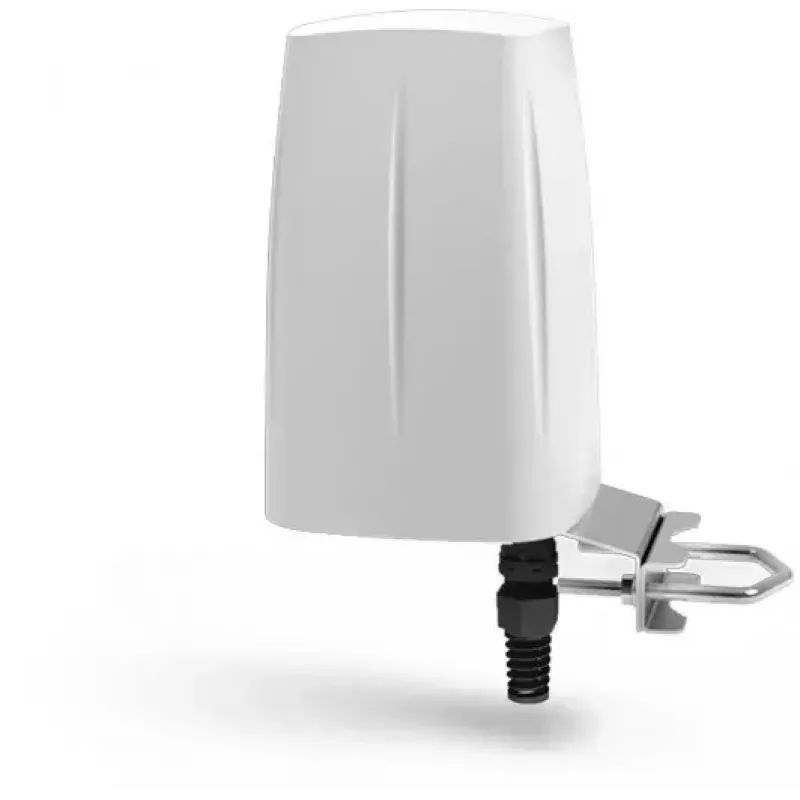

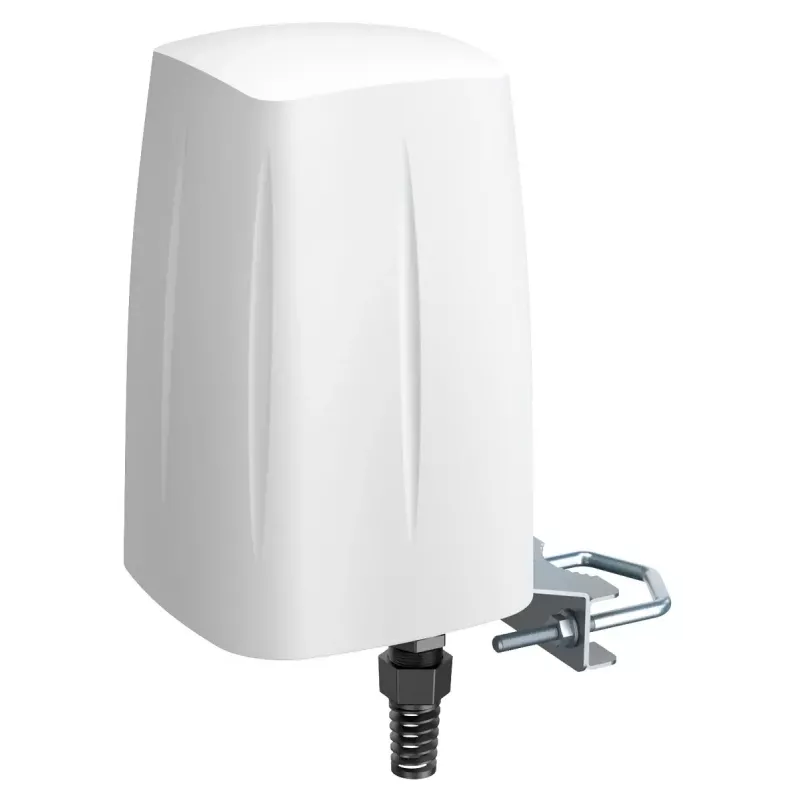

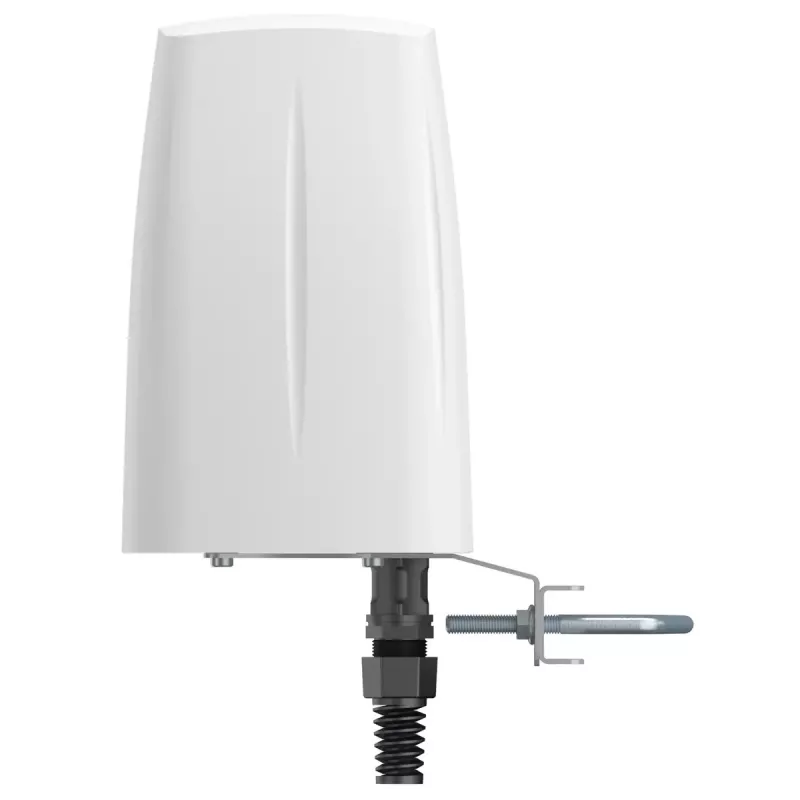

Omni-directional antenna QuWireless QuSpot is an integrated outdoor unit combining multi-band LTE and omnidirectional Wi‑Fi antennas with a mounting space for Teltonika RUT260/ RUT241/ RUT240/ RUT230/ RUT200 series routers. The QuSpot supports a broad frequency range from 0.694 to 6 GHz, provides up to 4 dBi gain, uses vertical polarization and includes a PoE/LAN connector. Its compact dimensions (160 × 160 × 240 mm) and weather-resistant enclosed design make it suitable for mobile and fixed installations such as CCTV, public hotspots, industrial sites, campervans and vessels.

Advantages

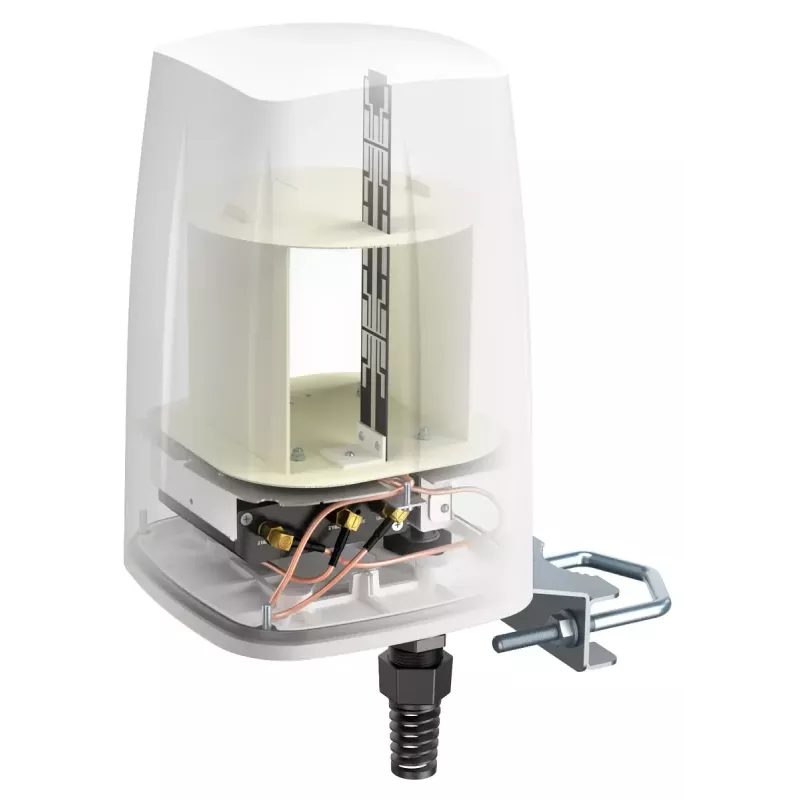

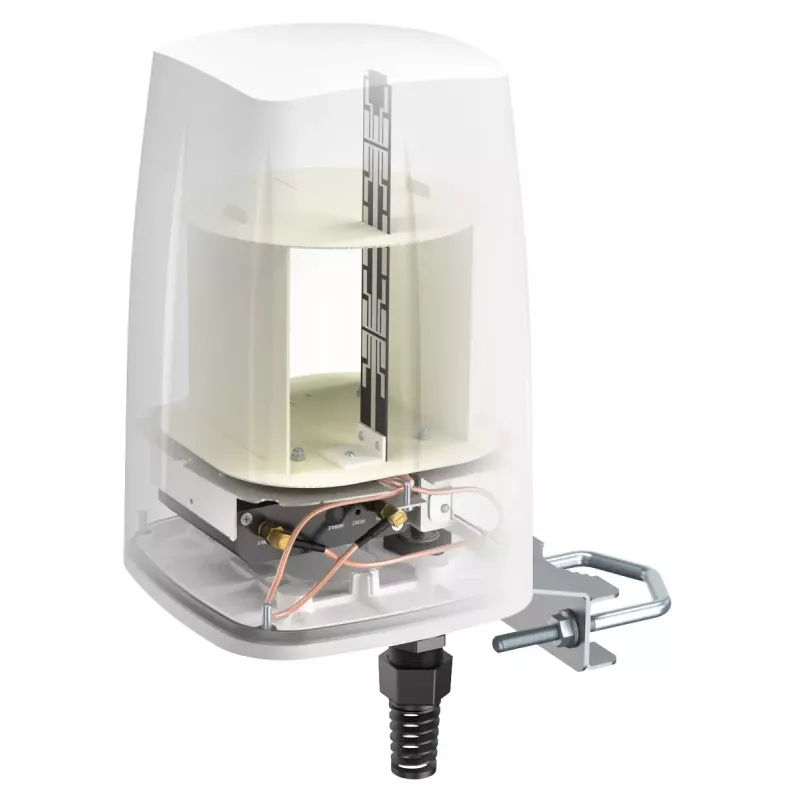

The QuWireless QuSpot integrates multi‑band LTE and Wi‑Fi antennas into a single enclosure with a prepared installation space for compatible Teltonika RUT2xx/ RUT200 routers, reducing the need for external cabling and separate antenna mounts. Its wide frequency coverage (0.694–6 GHz) supports many cellular and Wi‑Fi bands, and the 4 dBi gain provides balanced omnidirectional coverage for outdoor deployments. The unit is compact and includes a PoE/LAN connector for simplified power and data delivery.

Suitable for

• Outdoor CCTV and remote surveillance installations
• Public Wi‑Fi hotspots and temporary event networks
• Industrial IoT and telemetry sites
• Mobile installations: campervans, boats and service vehicles

Key specifications

• Frequency band: 0.694–0.96 / 1.7–2.2 / 2.2–2.7; 2.4–2.5 / 4.7–6 GHz
• Antenna gain (max): 4 dBi
• Polarization: vertical
• Connector: PoE/LAN (integrated)
• Dimensions: 160 × 160 × 240 mm
• Weight: 1.5 kg
• Colour: white
• Compatible routers: Teltonika RUT260, RUT241, RUT240, RUT230, RUT200

How to use

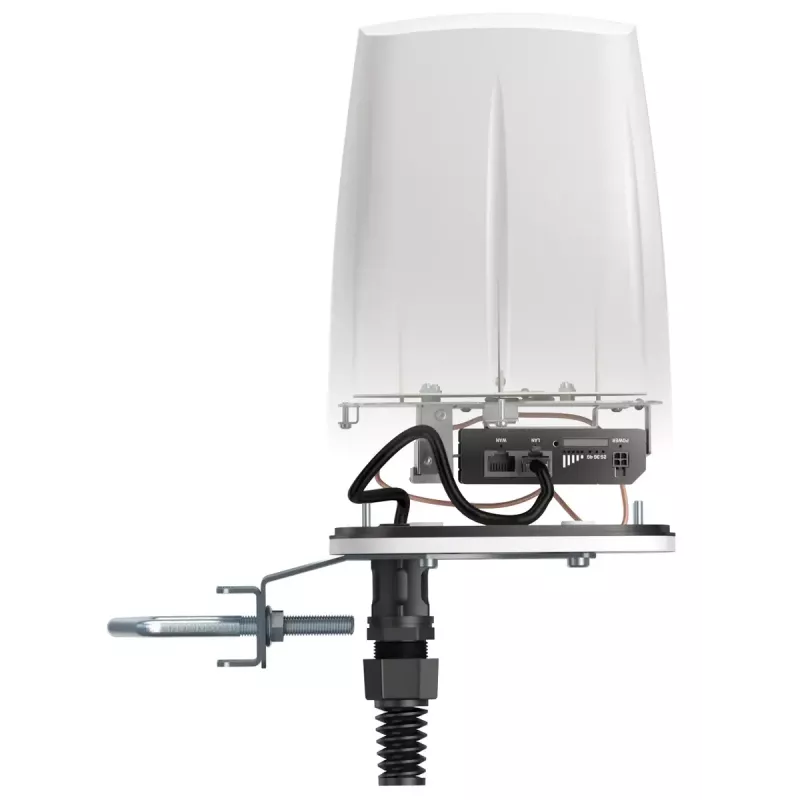

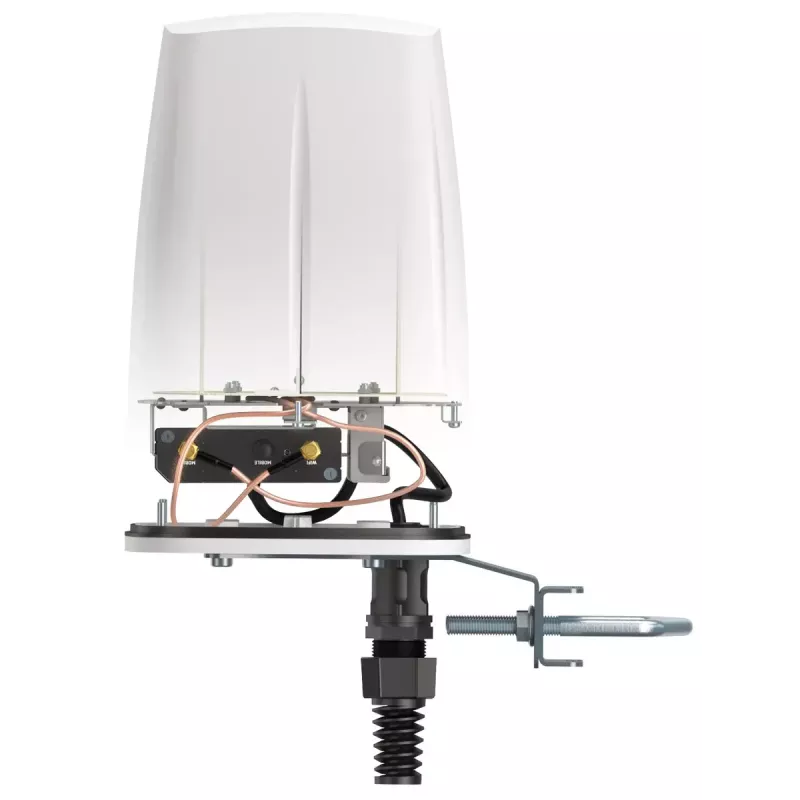

Mount the QuSpot on a suitable outdoor pole or flat surface following the manufacturer's mechanical instructions and ensure the internal space is prepared to accept the compatible Teltonika router model. Connect the router to the QuSpot internal antenna ports as specified, and use the PoE/LAN connector for power and network feed. Position the unit with clear line-of-sight where possible to maximize omnidirectional reception and secure all cable entries to maintain weather protection.

Recommendations

Install the QuSpot at least 2–3 meters above local obstructions, verify band compatibility with your cellular provider, and use weatherproof cable glands for all external connections. For mobile installations, confirm the router model fits the internal mounting space before finalizing installation.
