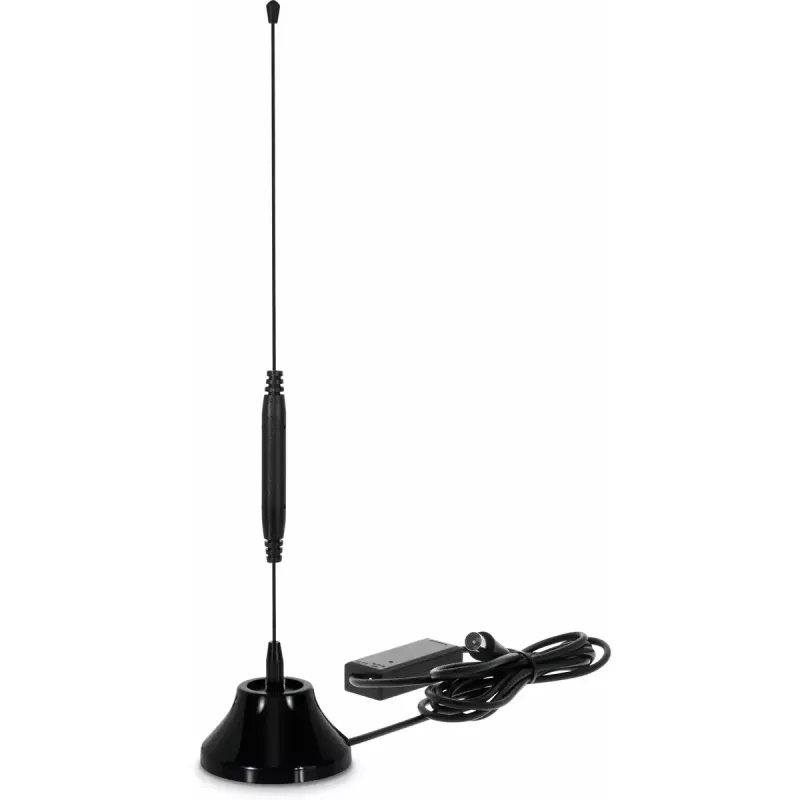

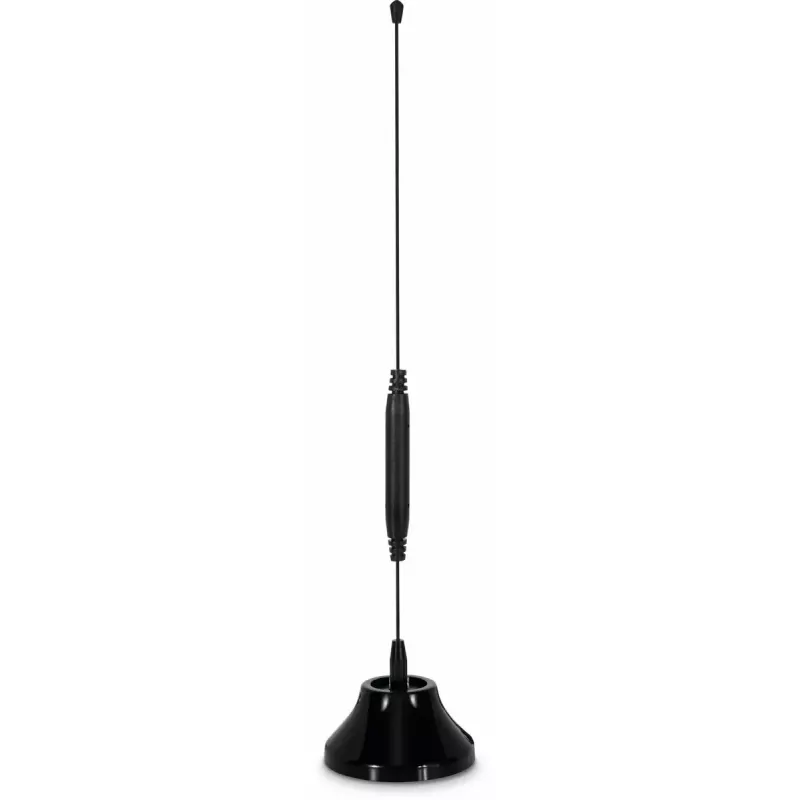

Antenna per interni TechniSat DigiFlex TT5

The compact indoor antenna TechniSat DigiFlex TT5 receives digital television broadcasts via DVB-T2 and can often provide good reception without an external antenna. It also supports DAB+ digital radio reception. The antenna includes an integrated 26 dB signal amplifier powered by 5 V (40 mA) from the connected receiver and a built-in LTE filter to reduce mobile phone interference. A magnet in the base helps secure placement. Note that DAB+ receivers must supply the required 5 V antenna power at their antenna socket for amplifier operation.

Advantages

Compact design suitable for indoor placement and simple installation by connecting to the antenna socket of a DVB-T2 or DAB+ receiver. Built-in 26 dB amplifier improves weak signals and is powered directly from the receiver. Integrated LTE filter reduces interference from mobile networks, and the magnetic base provides a stable mounting option.

Suitable for

• Receiving DVB-T2 terrestrial digital TV broadcasts (including DVB-T2 HD where available)
• Receiving DAB+ digital radio stations
• Indoor use in apartments, offices, or rooms with limited space for an external antenna

Key specifications

• Product: Indoor antenna TechniSat DigiFlex TT5
• Reception standards: DVB-T2 (DVB-T2 HD compatible), DAB+
• Amplifier gain: 26 dB
• Supply voltage: 5 V via connected receiver (40 mA)
• Filter: Integrated LTE filter
• Dimensions (approx.): 70 mm × 70 mm × 345 mm
• Weight (approx.): 0.23 kg
• Colour: Black
• MPN: 0000/6025
• EAN: 4019588060258

How to use

Connect the DigiFlex TT5 to the antenna socket of your DVB-T2 or DAB+ receiver. Ensure the receiver provides the required 5 V supply voltage at the antenna output so the integrated amplifier receives power. Place the antenna on a suitable indoor surface; use the magnetic base to secure it to a metal surface if available. Perform a channel scan on your receiver to detect available TV and radio stations and adjust the antenna position for best reception.

Recommendations

For reliable DAB+ reception, confirm that your DAB+ receiver supplies 5 V at the antenna connection. If reception is poor, try relocating the antenna near a window or higher position and repeat the channel scan. Avoid placing the antenna close to large metal objects or sources of RF interference.
