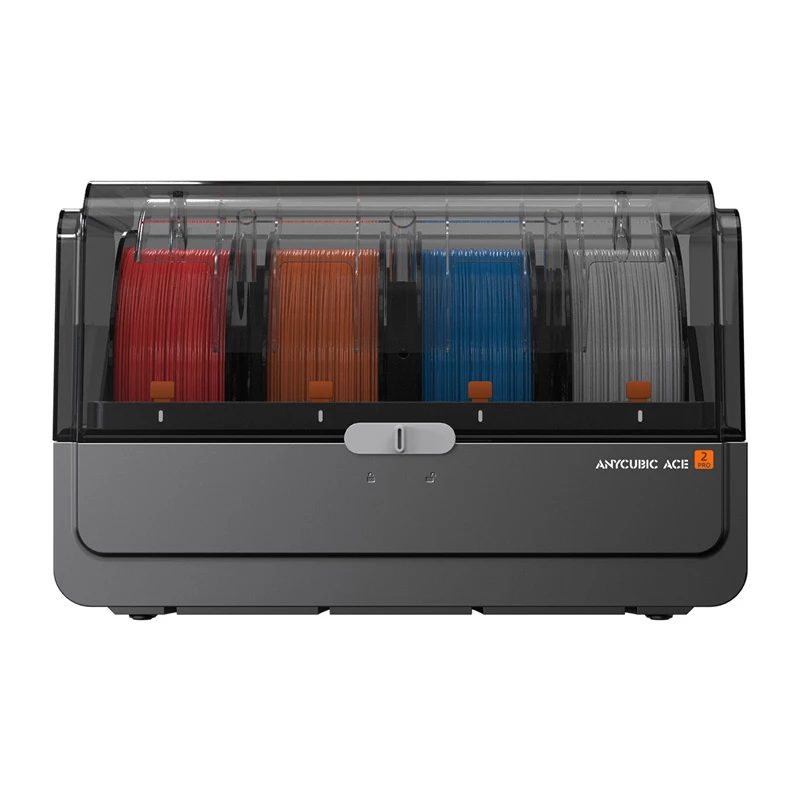

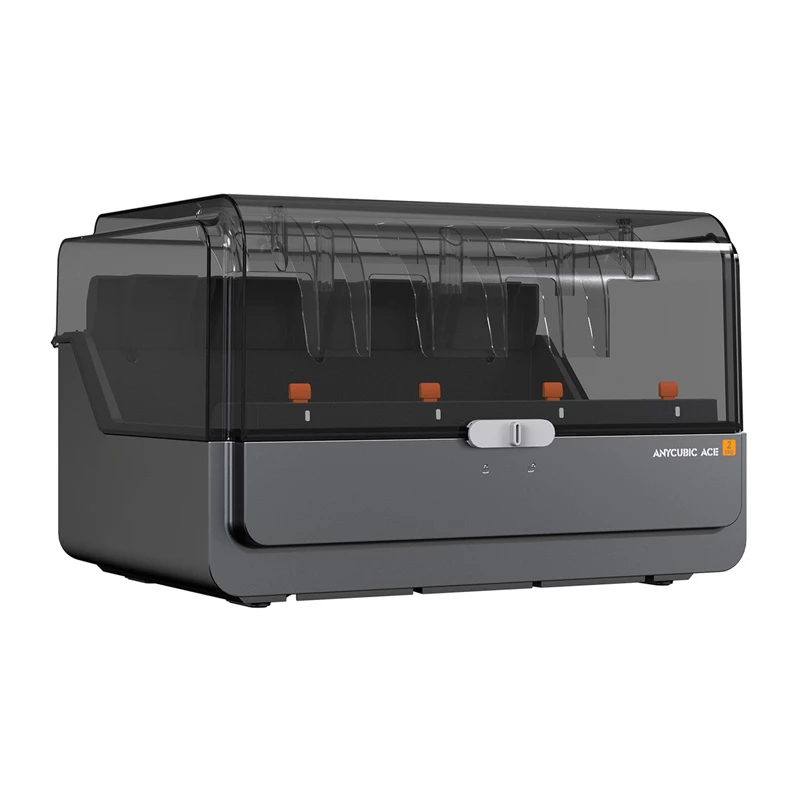

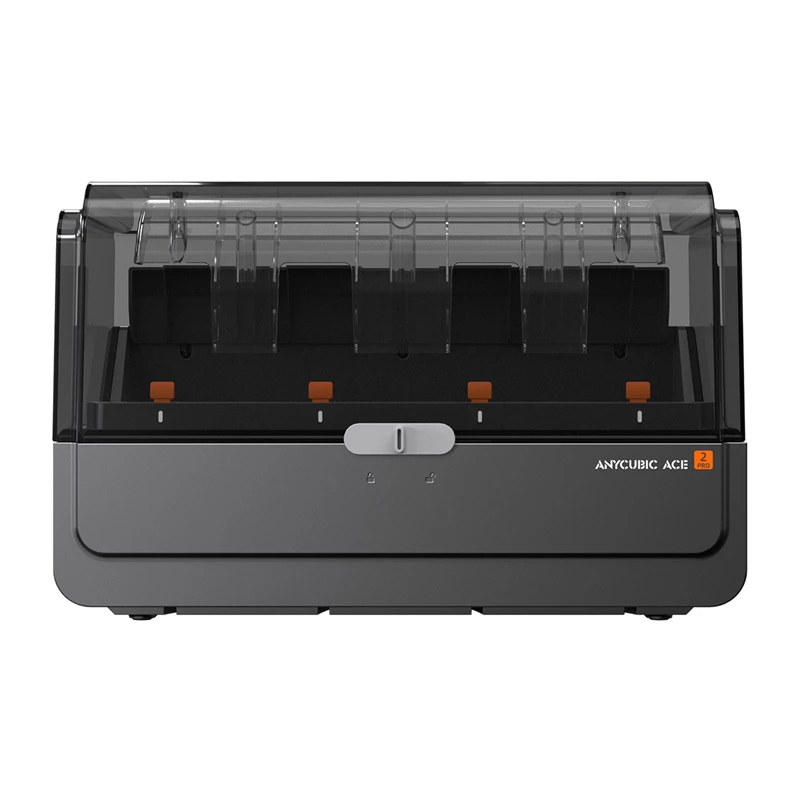

Anycubic ACE 2 Pro Multi-Filament System per Kobra S1, S1 Plus, S1 Max

The Anycubic ACE 2 Pro Multi-Filament System is a high-performance filament switching unit designed to enhance the capabilities of your Anycubic Kobra S1 series 3D printer. With support for up to two filaments, it enables seamless multi-color and multi-material printing, expanding your creative possibilities. The system features cold-end filament switching for rapid color changes, automatic filament loading, and integrated runout and jam detection for reliable operation. Compatible with a wide range of materials including PLA, PETG, ABS, TPU, ASA, HIPS, and Wood, the ACE 2 Pro is built with high-strength ABS plastic and connects via a dedicated multi-pin cable for easy integration. The package includes a mounting bracket, connection cables, PTFE tubing, and a user manual.

Advantages

Enables multi-color and multi-material printing with up to two filaments, reducing manual intervention and increasing productivity. The cold-end switching mechanism minimizes waste and speeds up color changes. Automatic filament loading and runout detection ensure uninterrupted printing, while jam detection prevents print failures. The compact design integrates seamlessly with the Kobra S1 series, and the included accessories simplify setup.

Suitable for

• 3D printing enthusiasts and professionals seeking multi-color or multi-material prints
• Users of Anycubic Kobra S1, S1 Plus, and S1 Max printers
• Applications requiring rapid filament switching, such as prototypes, models, and artistic creations

Key specifications

• Filament Input Capacity: 2 Filaments
• Compatible Filament Diameter: 1.75 mm
• Supported Materials: PLA, PETG, ABS, TPU, ASA, HIPS, Wood, etc.
• Printer Compatibility: Anycubic Kobra S1, S1 Plus, S1 Max
• Switching Principle: Cold-end filament switching
• Filament Loading: Automatic
• Filament Runout Detection: Yes
• Filament Jam Detection: Yes
• Control Method: G-code commands via printer firmware
• Power Input: DC 24V (typically from printer)
• Connectivity: Dedicated multi-pin cable
• Housing Material: High-strength ABS plastic
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20% to 80% RH
• Included Accessories: Mounting bracket, connection cables, PTFE tubing, user manual

Recommendations

For optimal performance, ensure your printer firmware is updated to support multi-material printing. Use high-quality filaments of 1.75 mm diameter. The ACE 2 Pro is designed for indoor use within specified temperature and humidity ranges.
