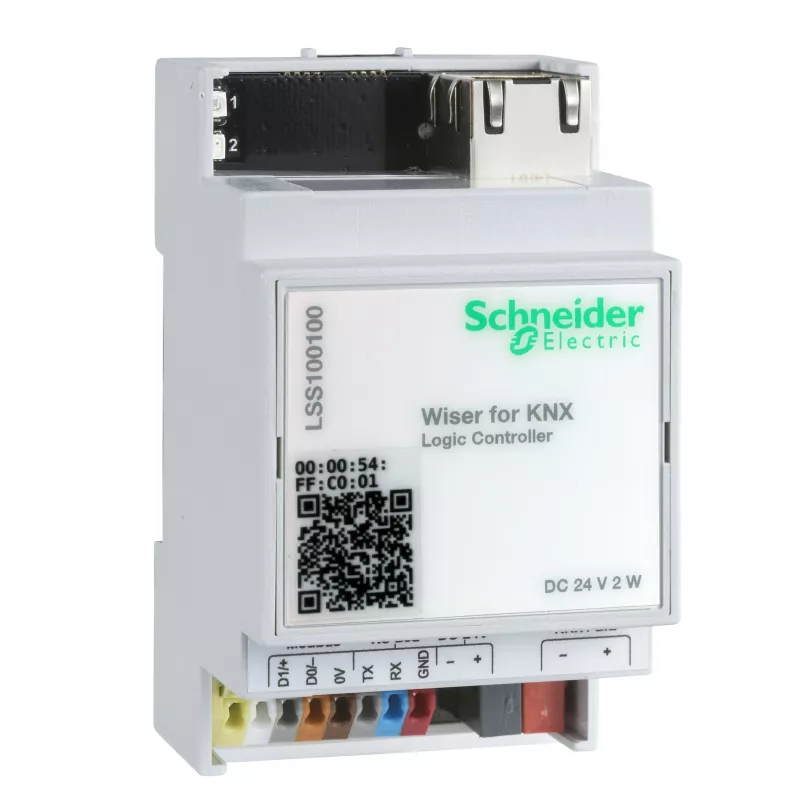

APC Logic Controller LSS100100

The APC Logic Controller LSS100100 is a high-performance DIN rail mounted controller designed for building automation, data center, and industrial control applications. It offers flexible I/O configuration and supports multiple communication protocols for seamless integration.

Advantages

Reliable and scalable control with 8 universal inputs and 4 relay outputs. Supports Modbus, BACnet, and SNMP protocols for easy integration into existing systems. Real-time clock with battery backup ensures accurate time-stamping and event logging.

Suitable for

• Data center monitoring and control
• Building automation systems
• Industrial control applications

Key specifications

• Product Type: Logic Controller
• Mounting Type: DIN Rail
• Input Voltage: 24 V AC/DC
• Power Consumption (Max): 5 W
• Ethernet Ports: 1 x RJ45 (10/100 Mbps)
• Serial Ports: 1 x RS-485
• USB Ports: 1 x USB Type-B (for service)
• Universal Inputs (UI): 8 (Configurable for voltage, current, resistance, dry contact)
• Digital Outputs (DO): 4 (Relay outputs, 24V AC/DC, 0.5A)
• Supported Protocols: Modbus TCP/IP, Modbus RTU, BACnet/IP, BACnet MS/TP, SNMP
• Operating Temperature: 0 to 50 °C (32 to 122 °F)
• Storage Temperature: -20 to 70 °C (-4 to 158 °F)
• Relative Humidity: 5 to 95% non-condensing
• Enclosure Rating: IP20
• Real-time Clock: Yes, with battery backup
• Software Integration: EcoStruxure Building Operation, StruxureWare Data Center Expert
• Certifications: CE, UL, FCC, RoHS

Recommendations

Ideal for professionals seeking a compact and versatile controller for monitoring and managing critical infrastructure. Ensure proper DIN rail mounting and adequate ventilation for optimal performance.
