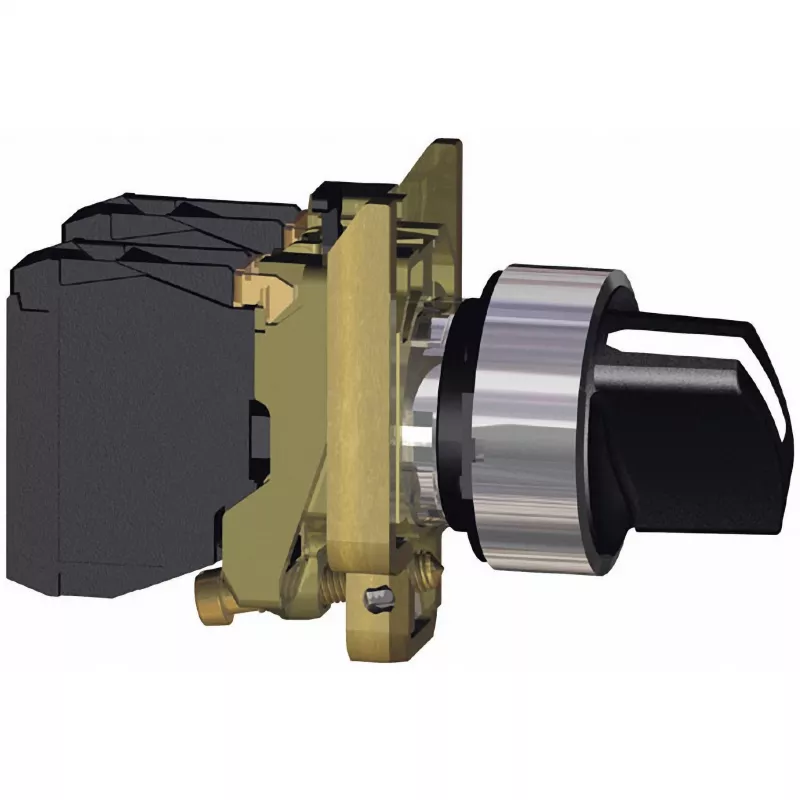

APC Schneider Electric XB4BD33 manopola selettore, nero

The APC Schneider Electric XB4BD33 is a robust selector switch handle designed for industrial control applications. Part of the Harmony XB4 series, this black handle offers reliable performance and durability in demanding environments.

Advantages

This selector switch handle provides a secure grip and clear visual indication of switch position. Its chromium-plated metal bezel ensures corrosion resistance and long-lasting operation. With a high mechanical durability of 1,000,000 cycles, it is built for frequent use.

Suitable for

• Industrial control panels
• Machine control systems
• Automation equipment
• Process control applications

Key specifications

• Product Type: Selector Switch Head
• Mounting Diameter: 22 mm
• Bezel Material: Chromium Plated Metal
• Operator Profile: Black Standard Handle
• Number of Positions: 3 Positions
• Operating Angle: +/- 45°
• Return Type: Spring Return to 0
• IP Protection Rating: IP66, IP67, IP69, IP69K
• NEMA Protection Rating: NEMA 13, NEMA 4X
• IK Protection Rating: IK06
• Mechanical Durability: 1,000,000 cycles
• Operating Temperature: -40 to 70 °C
• Storage Temperature: -40 to 70 °C
• Standards: IEC 60947-5-1, UL 508, CSA C22.2 No 14
• Environmental Compliance: RoHS, REACH
• Compatibility: ZB4BZ009 (fixing collar)

Recommendations

For optimal performance, pair this selector switch handle with the compatible ZB4BZ009 fixing collar. Ensure proper installation according to manufacturer guidelines to achieve the rated IP protection levels.
