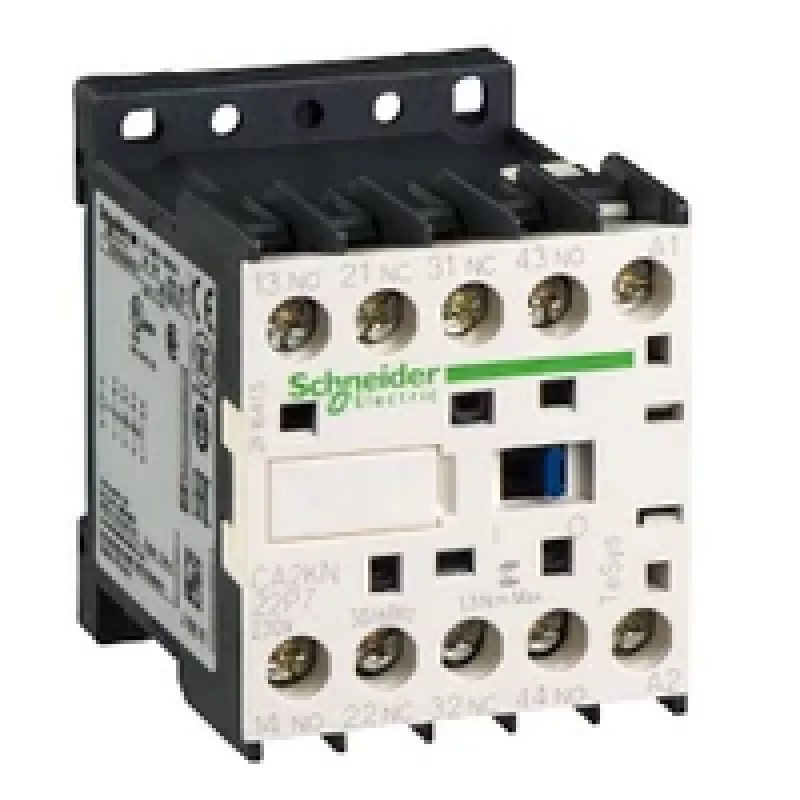

APC TeSys K relè di comando - nero, bianco - 230 V - 50/60 Hz - 45 x 57 x 58 mm

The APC TeSys K control relay is a compact and reliable mini contactor designed for motor control and general switching applications. With a rated operational current of 9 A (AC-3) and a coil voltage of 230 V AC, it is suitable for a wide range of industrial and commercial installations. The relay features 3 poles and 1 normally open auxiliary contact, ensuring efficient control and monitoring.

Advantages

High durability with 10 million mechanical cycles and 1 million electrical cycles (AC-3). Compact dimensions (45 x 57 x 58 mm) save space in control panels. Wide operating temperature range from -25 to 50 °C. Complies with international standards IEC 60947, UL 508, and CSA C22.2 No 14.

Suitable for

• Motor control in industrial machinery
• Lighting and heating control systems
• Building automation and HVAC applications
• General switching in control panels

Key specifications

• Product Type: Mini Contactor
• Series: TeSys K
• Number of Poles: 3P
• Rated Operational Current (AC-3): 9 A at ≤ 440 V
• Coil Voltage: 230 V AC
• Coil Frequency: 50/60 Hz
• Auxiliary Contacts: 1 NO
• Mounting Type: 35 mm DIN rail, Screw fixing
• Operating Temperature Range: -25 to 50 °C
• Storage Temperature Range: -50 to 80 °C
• Rated Power (AC-3): 2.2 kW at 220/230 V
• Terminal Type: Screw clamp terminals
• Protection Rating: IP20
• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Dimensions (W x H x D): 45 x 57 x 58 mm
• Color: Black, White

Recommendations

For optimal performance, ensure the relay is mounted on a 35 mm DIN rail or with screws in a clean, dry environment. Use appropriate screw clamp terminals for secure connections. This product is a direct replacement for Schneider Electric TeSys K series contactors.
