Aqua Computer AMPINEL 12V-2x6 gestione alimentazione scheda grafica, 650 W, OLED, RGBpx - Tipo B

Most inline power monitors simply pass current through, but the AMPINEL 12V-2x6 Type B actively captures every watt flowing into your GPU. This 650 W module sits between your PSU cable and graphics card, delivering real-time voltage, current, and power data on a crisp OLED display while adding Aqua Computer's signature RGBpx illumination to your build.

Highlights

• Inline 12V-2x6 power management for GPUs up to 650 W

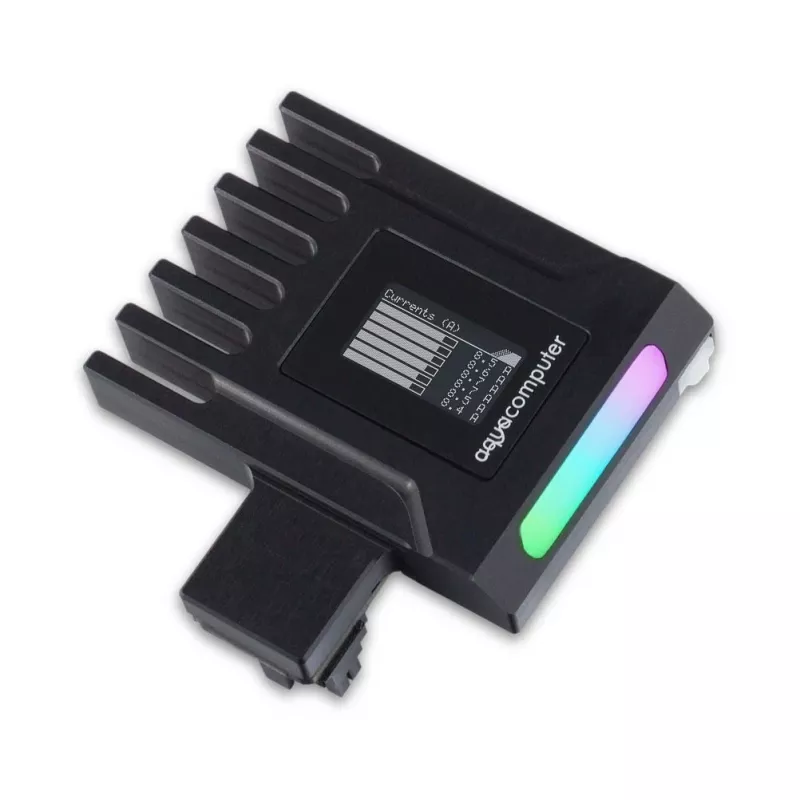

• Integrated OLED display shows live power, voltage, and current
• Aqua Computer RGBpx lighting with internal and external channels
• USB 2.0 internal connection for aquasuite software control and data logging
• Direct plug-in design compatible with ATX 3.0 PSUs and NVIDIA RTX 40 series

In daily use

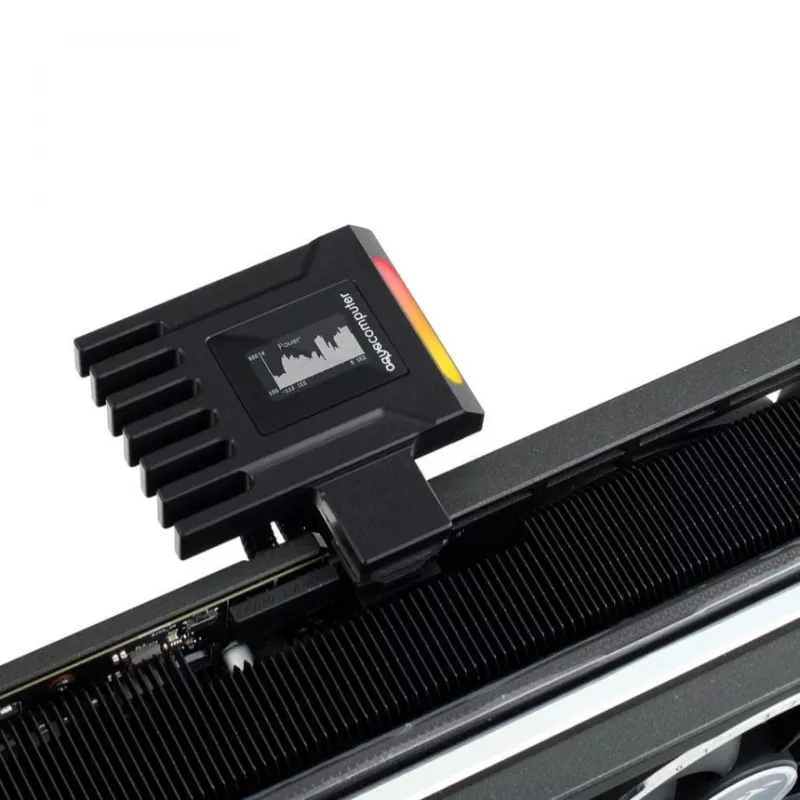

Installation is straightforward: connect the module between your power supply's 12VHPWR cable and the graphics card. The OLED screen immediately provides precise power draw readings, helping you monitor load under gaming or rendering. The RGBpx LEDs can be synchronized with other Aqua Computer components for a cohesive look. Through aquasuite, you can log data over time, set alarms, and update firmware, making it an essential tool for enthusiasts who demand transparency from their power delivery.

Full specifications

• Max power capacity: 650 W
• Input connector: 1x 12VHPWR (12V-2x6)
• Output connector: 1x 12VHPWR (12V-2x6)
• Display: OLED, real-time power, voltage, current
• RGB lighting: Aqua Computer RGBpx, 1x internal, 1x external channel
• Control interface: Internal USB 2.0 header
• Software support: aquasuite
• GPU compatibility: NVIDIA GeForce RTX 40 Series and other GPUs with 12VHPWR
• PSU compatibility: ATX 3.0 PSUs with 12VHPWR or ATX 2.x with 12VHPWR adapter
• Form factor: Inline power management module, Type B
• Mounting: Direct plug-in between PSU cable and GPU
• Voltage range: 12V (12VHPWR standard)
• Current measurement range: Up to 54.16 A
• Data logging: Yes (via aquasuite software)
• Firmware upgradable: Yes

Final note

For enthusiasts who demand transparency from their power delivery, the AMPINEL 12V-2x6 Type B is an essential tool that combines precise monitoring with Aqua Computer's signature RGBpx illumination.
