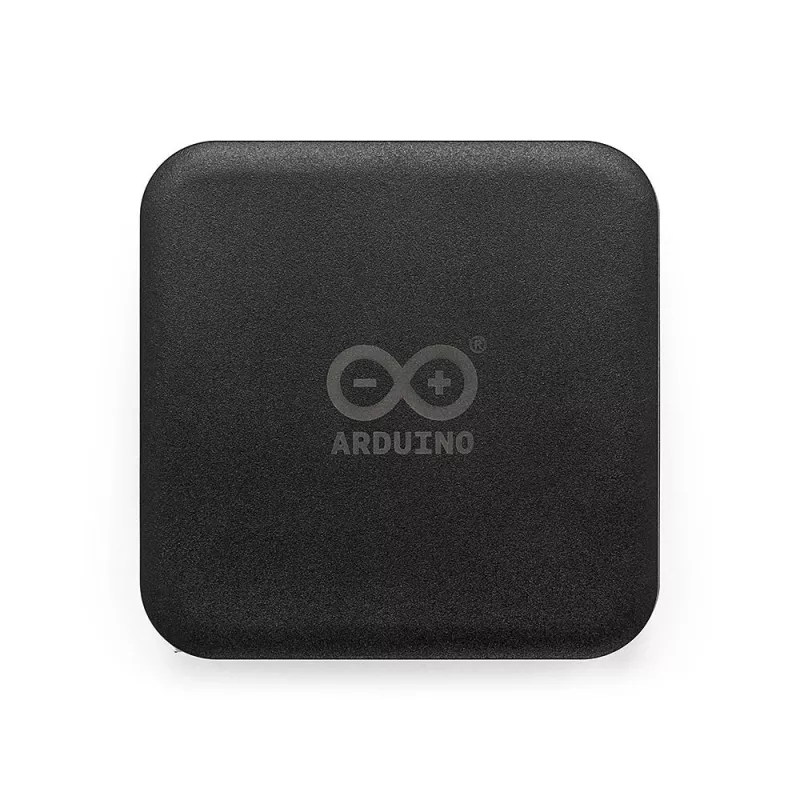

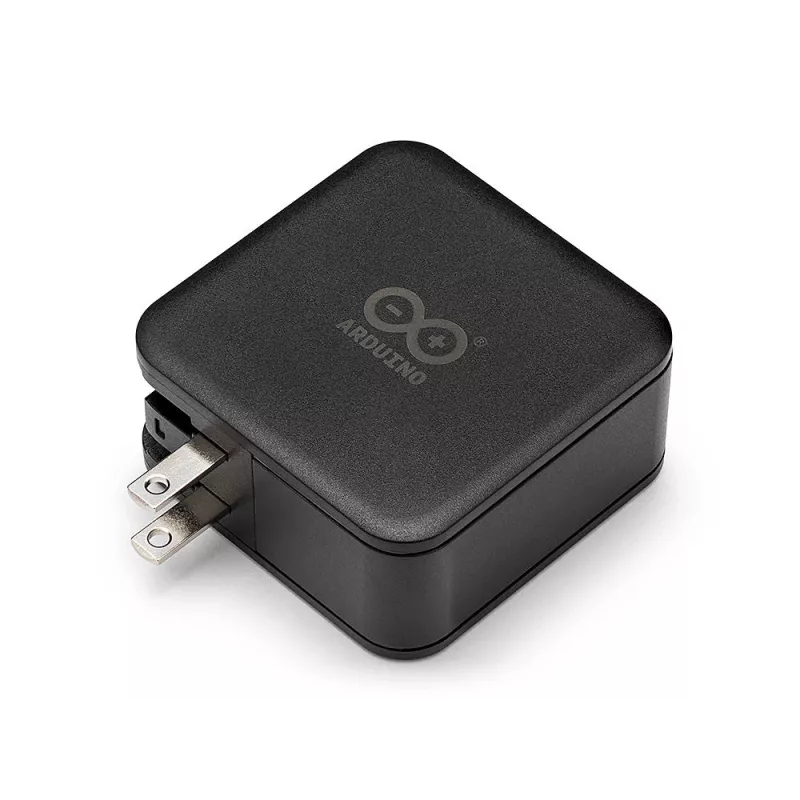

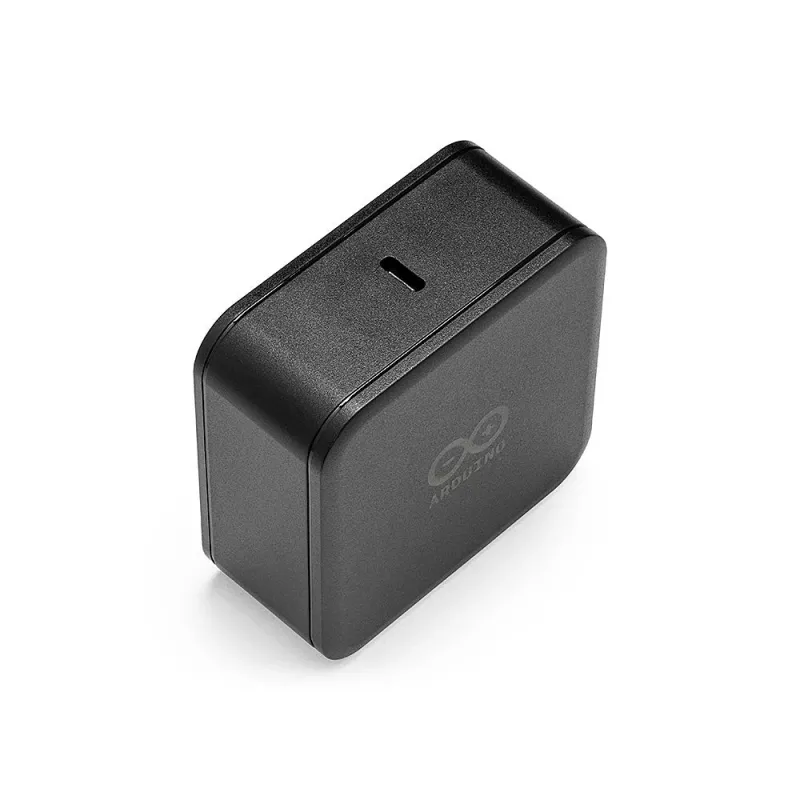

Arduino TPX00242 alimentatore USB-C 45W (9A, spine intercambiabili)

This Arduino power supply stands out with its fixed 5V output and unusually high 9A current, delivering 45W through a single USB-C port — a combination tailored for power-hungry development kits like the Portenta X8 and GIGA R1 WiFi, where stable, high-current delivery is critical.

Highlights

• 45W max output via USB-C (5V/9A)

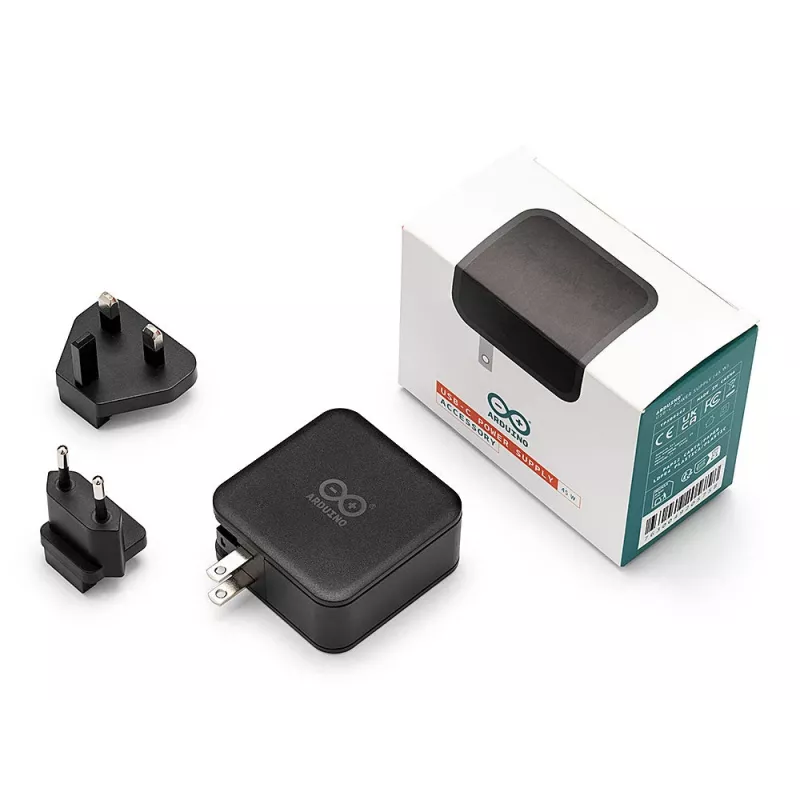

• Interchangeable AC plugs for EU, US, UK, AU
• Integrated 1.5m USB-C cable
• DOE Level VI efficiency
• Overcurrent, overvoltage, and short-circuit protection

In daily use

Plug it into any 100–240V outlet and swap the included plug adapter to match your region. The fixed 5V output means no negotiation is needed — it supplies full power immediately, which is ideal for boards that draw high current at boot. The black ABS enclosure stays cool under load, and the long cable gives you flexibility in placing your development setup.

Full specifications

• Input voltage: 100–240 V AC
• Input frequency: 50/60 Hz
• Output voltage: 5 V DC (fixed)
• Output current (max): 9 A
• Output power (max): 45 W
• Output connector: USB-C male
• Number of output ports: 1
• Power plug type: Interchangeable (EU, US, UK, AU)
• Compatibility: Arduino development kits (e.g., Portenta X8, GIGA R1 WiFi)
• Protection features: Overcurrent, overvoltage, short circuit
• Efficiency standard: DOE Level VI
• Cable length: 1.5 m
• Cable type: Integrated USB-C cable
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 85°C
• Enclosure colour: Black
• Enclosure material: ABS plastic

Final note

A dependable, high-current power source for your Arduino projects, built to handle the demands of advanced development boards.
