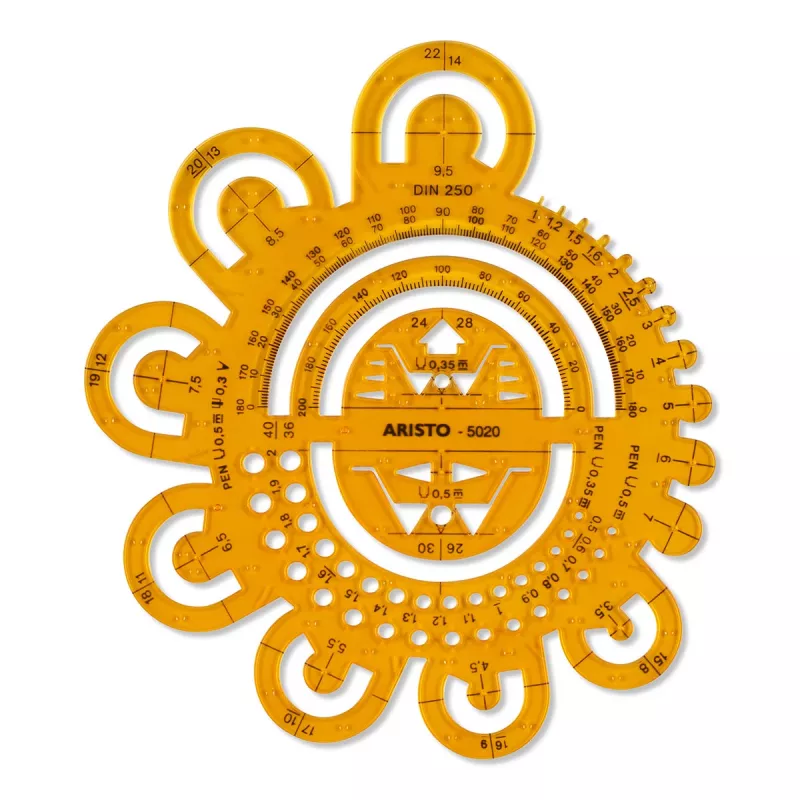

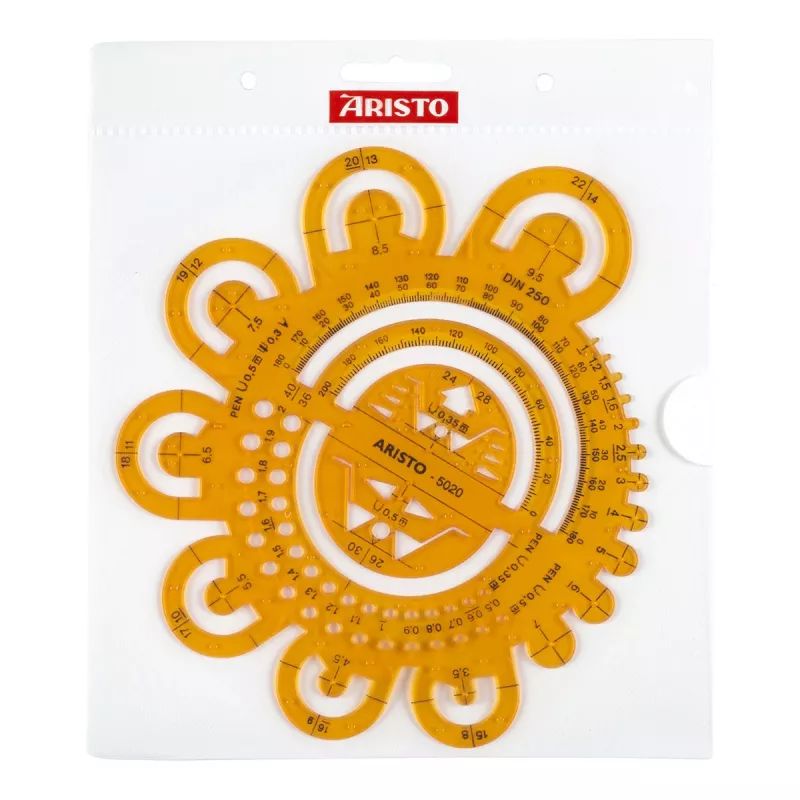

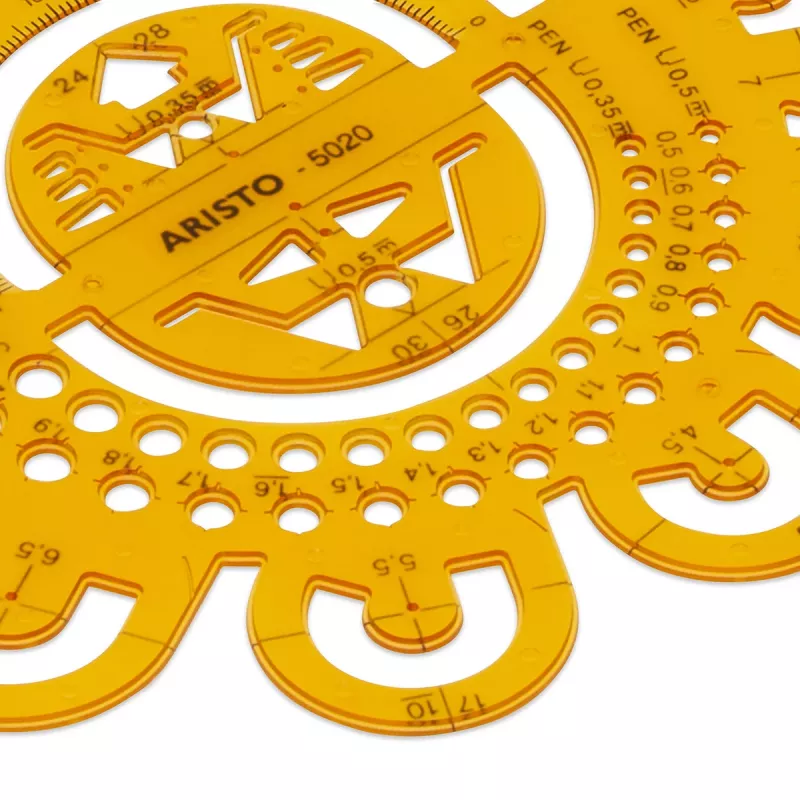

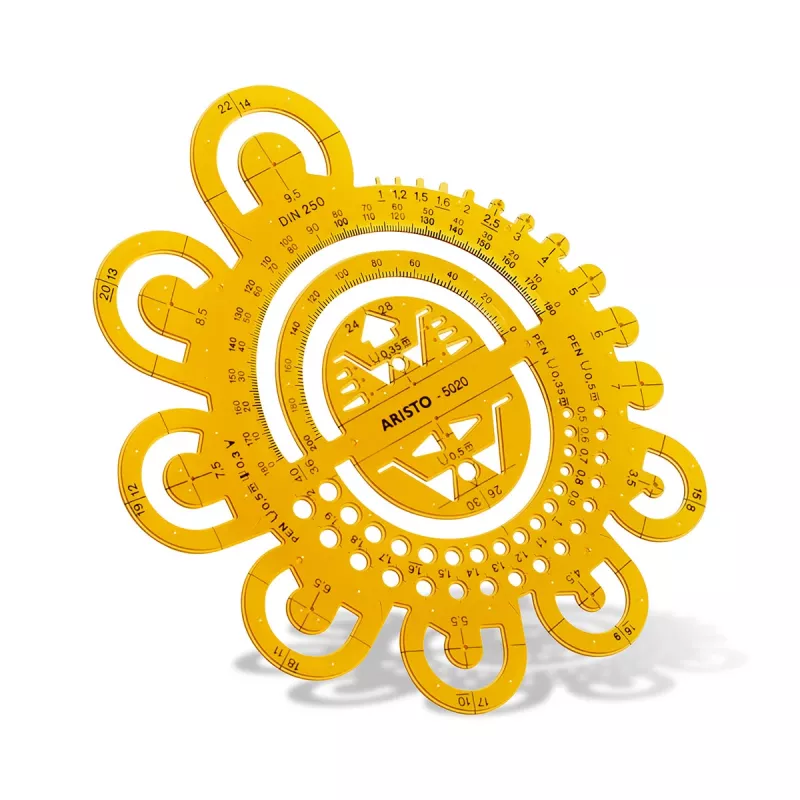

Aristo AR 5020 Maschera per raggi 0,5-40 mm

The Aristo AR 5020 is a high-precision radius template designed for technical drawing, drafting, and engineering applications. Made from transparent polystyrene plastic, it offers excellent visibility and durability. The template features 46 radii ranging from 0.5 mm to 40 mm, with clearly engraved markings for accurate measurements. Ink-lifting nubs prevent smudging, ensuring clean and precise lines. Suitable for use with pencils, fineliners, and technical pens.

Advantages

High precision and break-resistant material ensure long-lasting performance. The transparent design allows for easy alignment with drawings, while the flexible yet sturdy construction withstands daily use. Ink-lifting nubs keep your work clean.

Suitable for

• Technical drawing and drafting
• Engineering design
• Architectural planning
• Educational purposes

Key specifications

• Product Type: Radius Template
• Material: Transparent Polystyrene Plastic
• Radius Measurement Range: 0.5 mm - 40 mm
• Number of Radii: 46
• Smallest Radius: 0.5 mm
• Largest Radius: 40 mm
• Units of Measurement: Millimeters (mm)
• Color: Transparent
• Special Features: Ink-lifting nubs to prevent smudging
• Application: Technical Drawing, Drafting, Design, Engineering
• Precision: High Precision
• Durability: Flexible, Break-resistant
• Transparency: High
• Markings: Clearly engraved
• Compatibility: Suitable for pencils, fineliners, and technical pens

Recommendations

For best results, use with fine-tipped technical pens or sharp pencils. Store flat to maintain shape.
