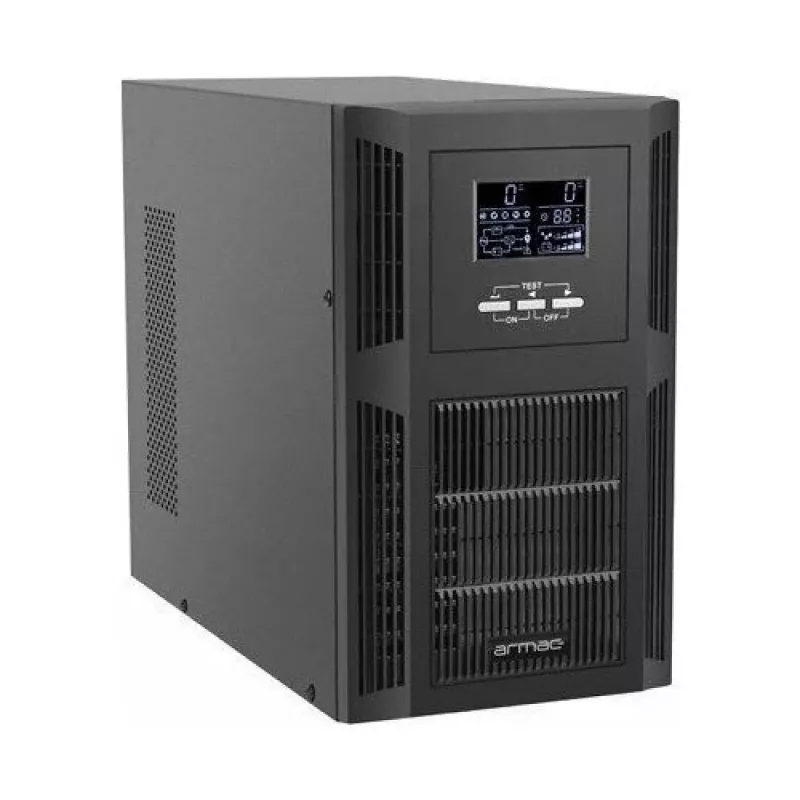

Armac UPS online 3000VA / 3000W, PF1 (O/3000I/PF1)

The Armac O/3000I/PF1 is a 3000 VA / 3000 W uninterruptible power supply featuring true online double-conversion topology and a power factor of 1.0. It delivers a pure sine wave output and includes monitoring software for comprehensive power management.

Key features

• Online topology with zero transfer time
• Power factor 1.0
• Pure sine wave output
• 8x IEC C13 outlets
• Tower housing
• LCD status display
• Audible alarms
• Cold start capability
• Includes PowerManager II monitoring software
• RS-232 and USB Type-B connectivity
• Expansion slot for battery module

Specifications

• Brand: Armac
• MPN: O/3000I/PF1
• Power rating: 3000 VA / 3000 W
• Power factor: 1.0
• Efficiency: 0.9
• Topology: Online
• Waveform (battery mode): Pure sine wave
• Transfer time: 0–0 ms
• Outlets: 8x IEC C13
• Battery: 6x 12 V 9 Ah, lead-acid
• Battery pack dimensions: 347 x 145 x 225 mm
• Battery weight: 14.1 kg
• Backup time at 50% load: 6 min
• Backup time at 100% load: 3 min
• Recharge time: 6 h
• Input voltage: 230 V
• Input voltage range: 110–300 V
• Input frequency range: 50–60 Hz
• Input frequency regulation: ±6 Hz
• Output voltage: 230 V
• Output voltage range: 208–240 V
• Output frequency: 50 Hz
• Automatic voltage regulation (AVR): Yes
• Output voltage regulation: ±1%
• Protections: Surge protection, interference filter
• Noise level: 50 dB
• Color: Black
• Software: PowerManager II
• Supported OS: Linux, Unix, Windows 10, Windows 10 64-bit, Windows 11, Windows 7, Windows 7 64-bit, Windows 8, Windows 8 64-bit, Windows 98
• Operating temperature: 0–40 °C
• Operating humidity: 20–95%
• IP rating: IP20
• Dimensions (W x H x D): 190 x 325 x 395 mm
• Weight: 22.2 kg
