Armadio a parete Digitus DN-19 04U-PB

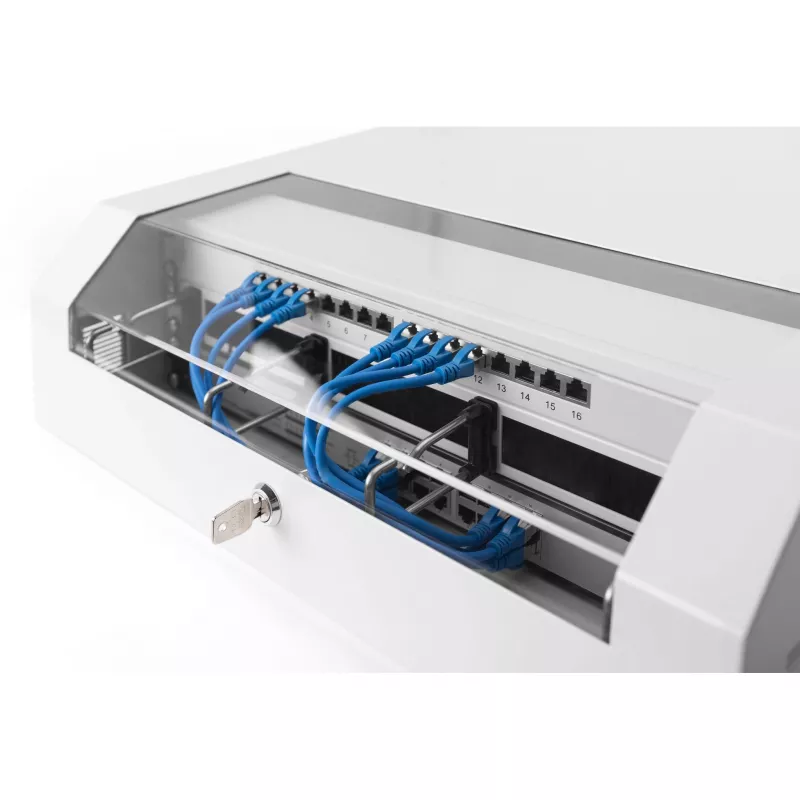

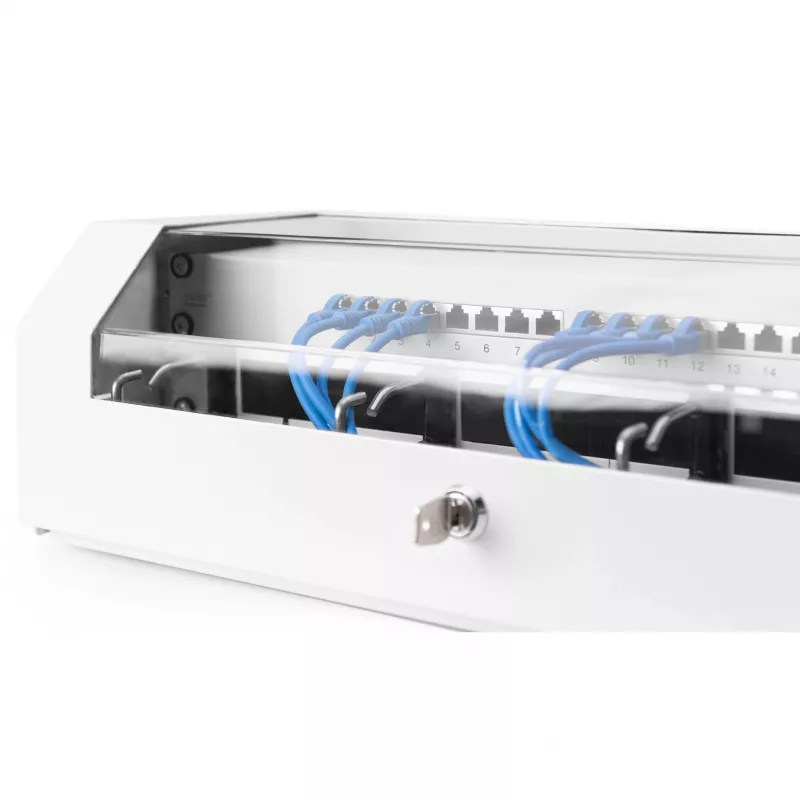

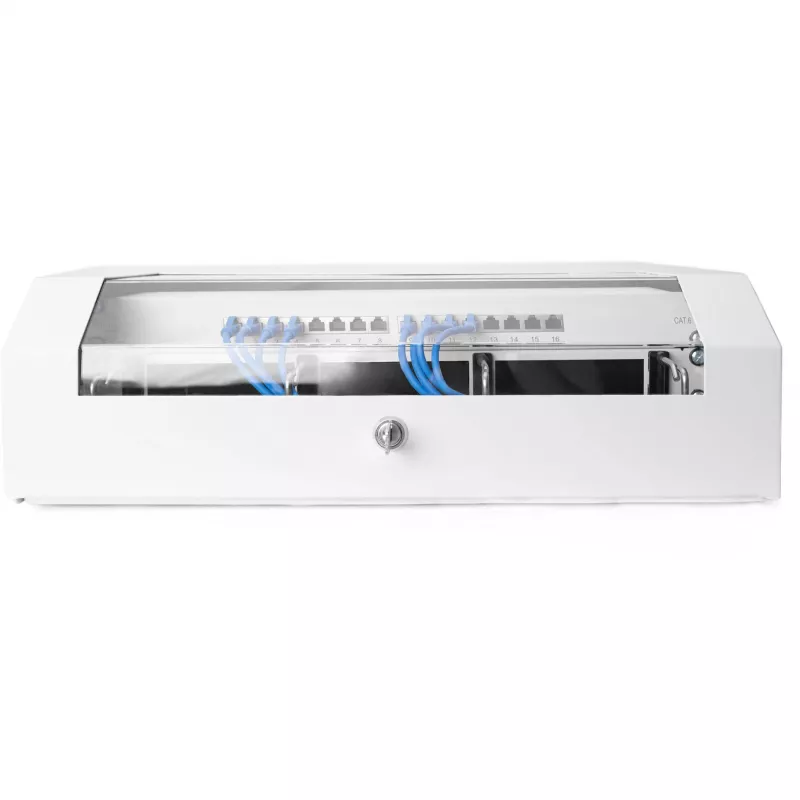

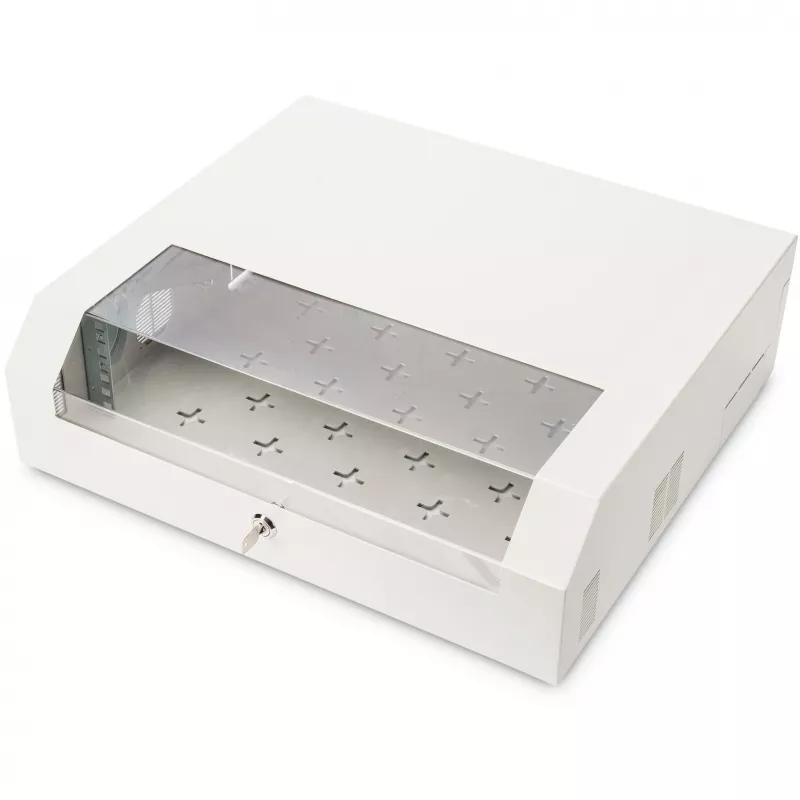

DIGITUS wall-mounted enclosure SOHO Slim (DN-19 04U-PB) is a compact 3U network rack designed for space-saving installations in offices and homes. The grey, slim housing supports a maximum load of 30 kg and provides IP20 protection against solid objects. It combines a rotatable 3U front profile rail and a fixed 2U rear profile rail, with multiple pre-punched cut-outs and mounting holes for flexible cable routing and component attachment.

Advantages

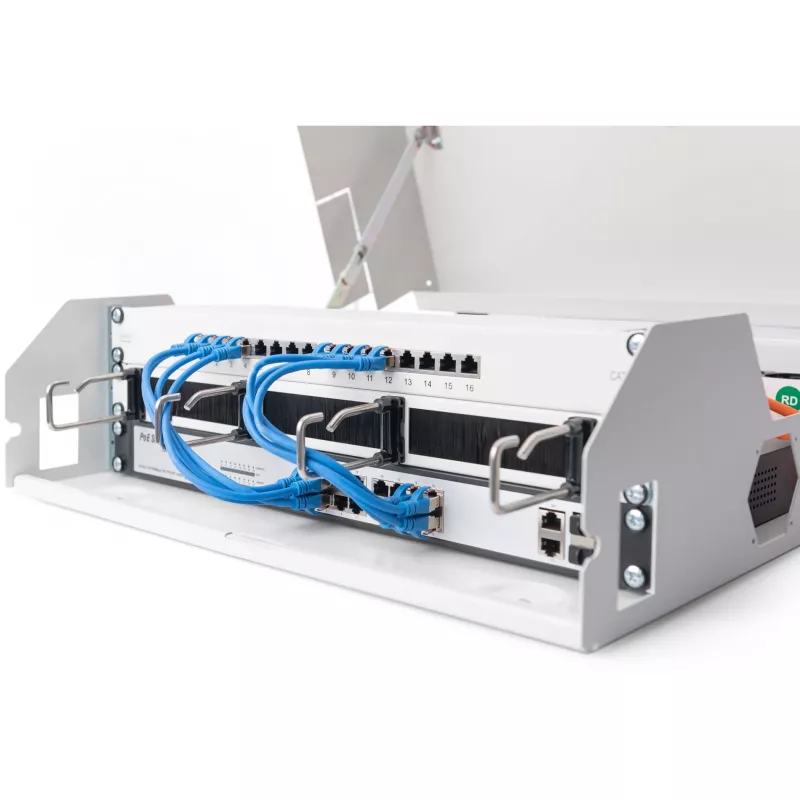

The enclosure offers a slim design for installations where depth and width are limited, and a door stopper mechanism that allows the unit to be mounted in any orientation on a wall, ceiling or raised floor. The rotatable front 3U rail and fixed rear 2U rail enable mounting of active and passive network devices, while punched mounting holes in the lower housing accommodate non-19" equipment such as DSL routers. Pre-punched cut-outs simplify cable routing and fastening of cable ties.

Suitable for

• Small office and home network equipment
• Active components such as switches and small patch panels
• Passive components and devices up to 30 kg

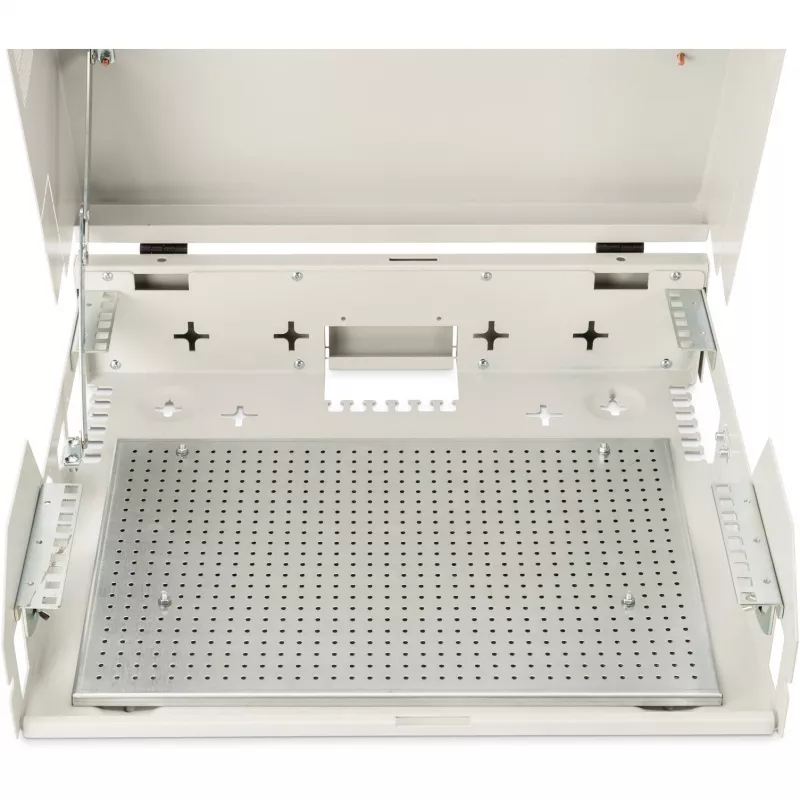

• Non-19" devices (e.g., DSL routers) using lower housing mounting points

Key specifications

• Model: DN-19 04U-PB
• Rack capacity: 3U
• Maximum load: 30 kg
• Protection class: IP20
• Dimensions (H x D x W): 145 mm x 475 mm x 525 mm
• Standard size: 19"
• Colour: Grey

How to use

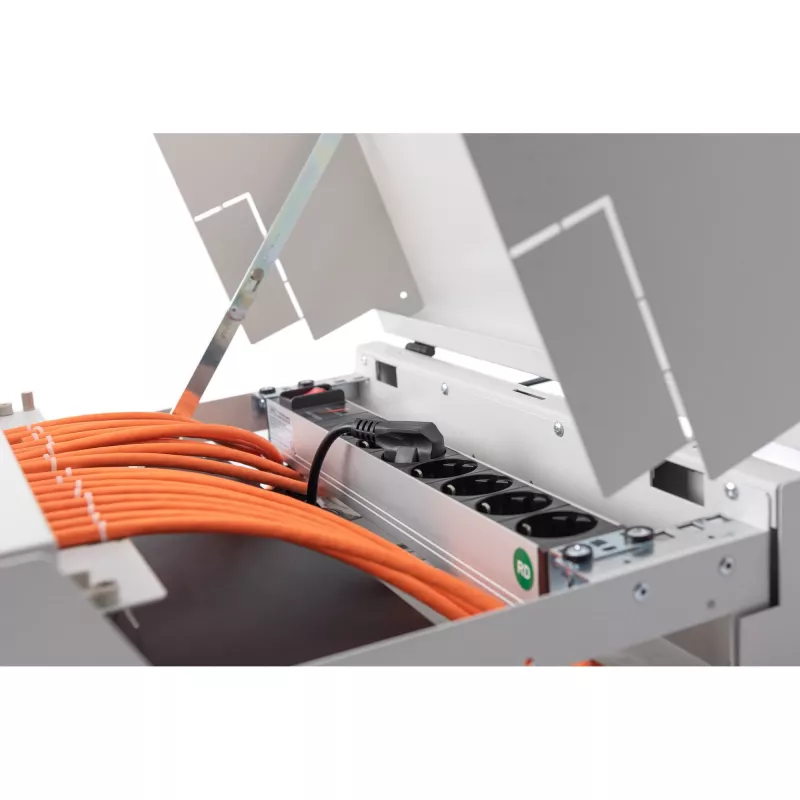

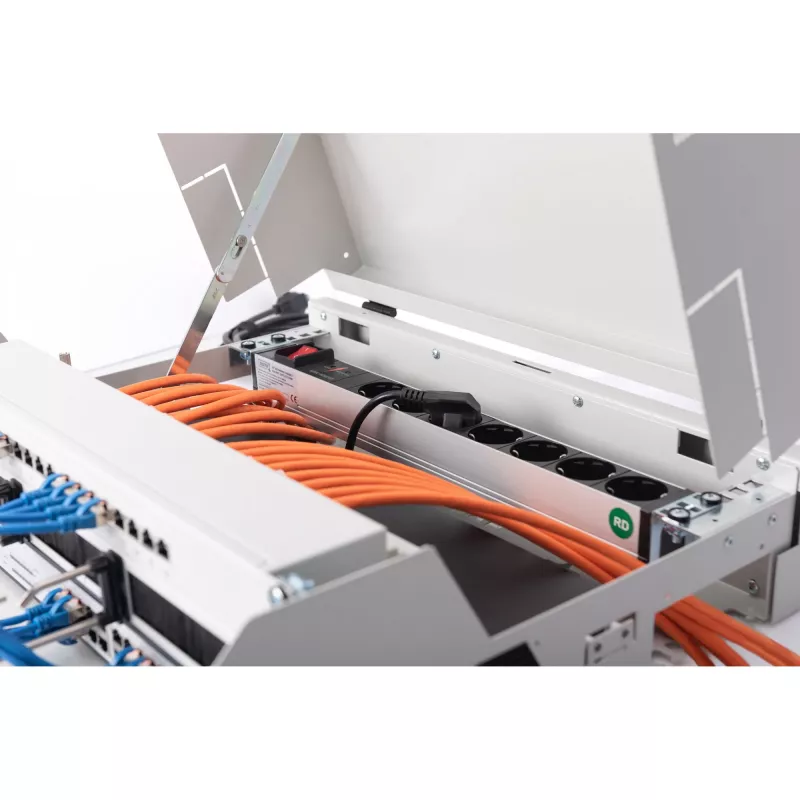

Choose a suitable mounting orientation (vertical, horizontal or angled) and fix the enclosure to the wall, ceiling or raised floor using appropriate fasteners for the mounting surface. Install equipment on the rotatable 3U front rail or on the fixed 2U rear rail as required. Route cables through the pre-punched cut-outs and secure them with cable ties using the provided fastening points. For non-19" devices, use the punched mounting holes in the lower housing or fit an optional mounting plate if needed.

Recommendations

Mount the enclosure on a load-bearing surface and ensure total installed equipment weight does not exceed 30 kg. Keep ventilation clear and avoid placing heat-generating devices without adequate airflow. Use suitable anchors and screws for the mounting material and check grounding and cable management for compliance with local installation standards.
