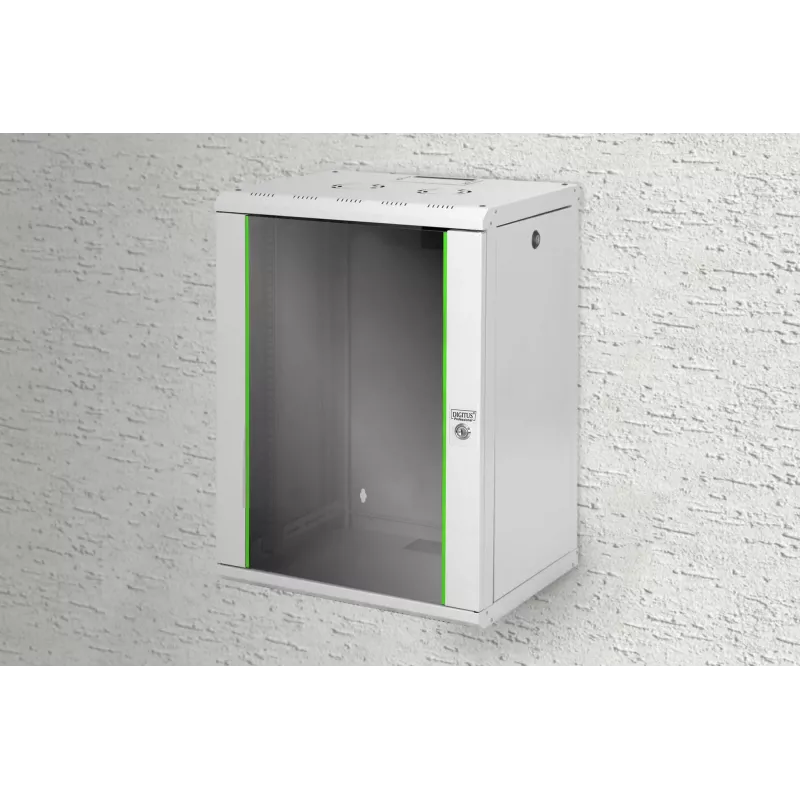

Armadio a parete Digitus DN-19 16-U

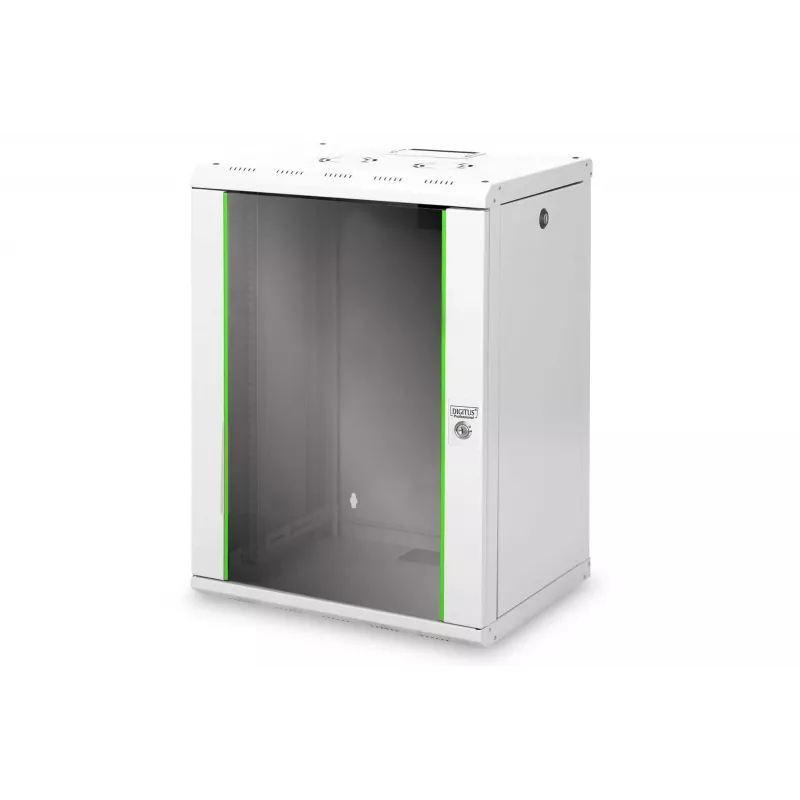

The DIGITUS Unique Series wall mounted rack DN-19 16-U is a 16U network cabinet designed for indoor IT infrastructure. The cabinet measures 600 x 450 mm, weighs 30 kg and supports up to 100 kg load. Constructed from up to 1.5 mm sheet steel and finished with electrostatic powder coating in grey (RAL 7035) or jet black (RAL 9005), it offers a stable, space-saving solution for organizing network equipment with an IP20 protection rating.

Advantages

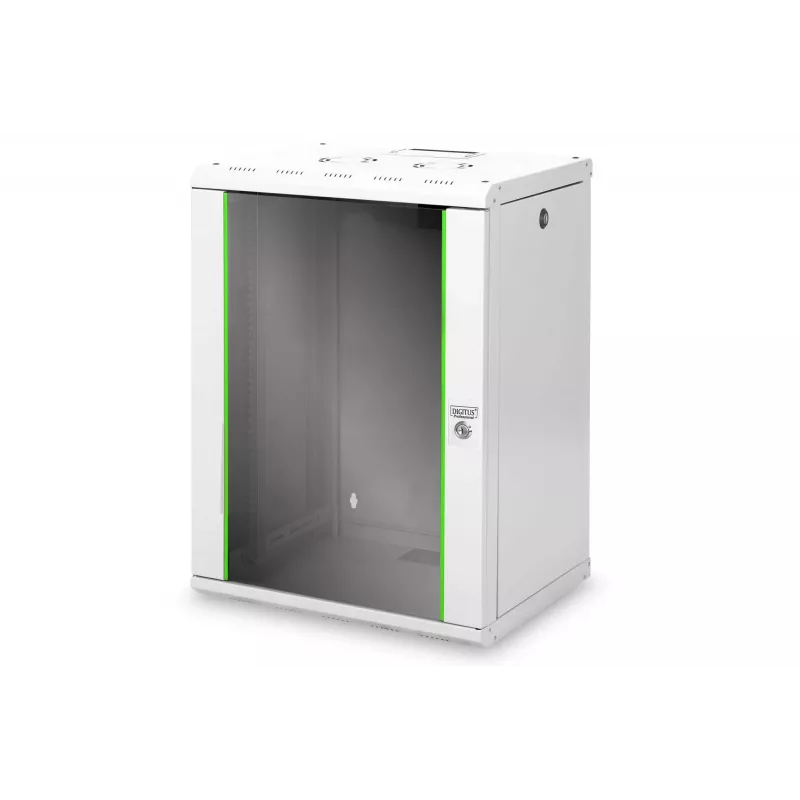

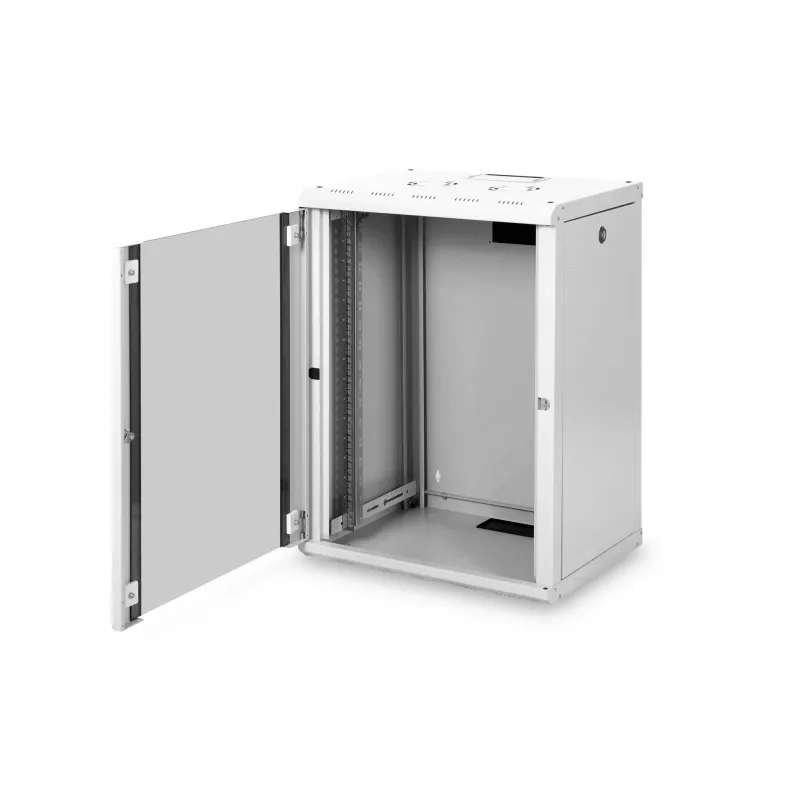

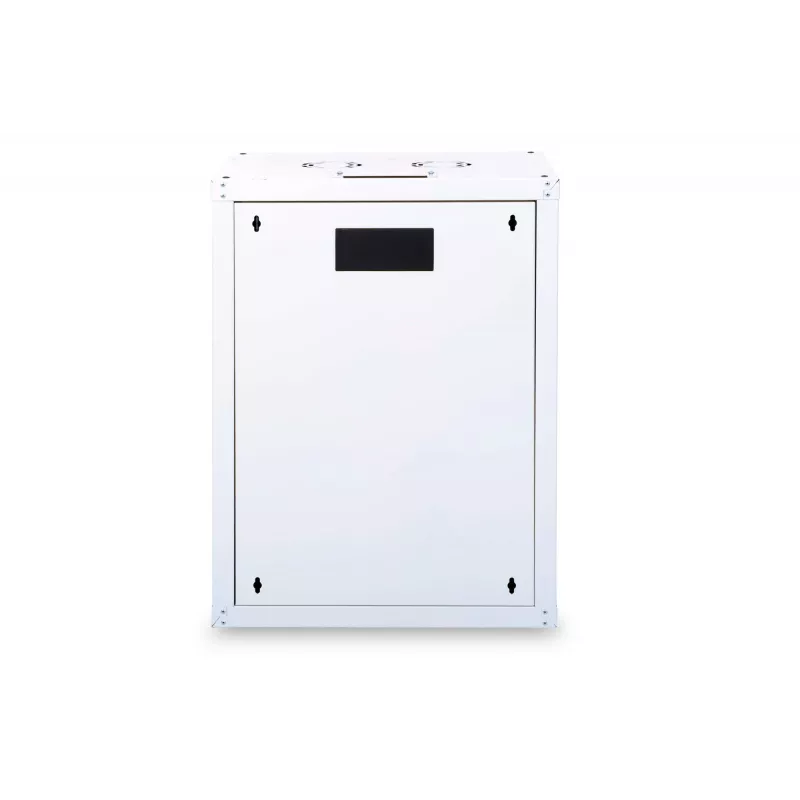

The cabinet features a robust steel construction for secure wall mounting, a lockable safety-glass front door with steel frame and lockable, removable side panels for improved accessibility. Internally it includes two pairs of galvanized 483 mm (19") profile rails with rack-unit markings readable in both directions and adjustable depth. Cable management is facilitated by a sliding cable inlet with foam seal in the roof plus pre-cut cable inlets with plastic covers in the back wall and floor plate. A pre-cut roof area allows for installation of a fan module. The door hinges are reversible and the housing can be mounted on the wall quickly; with optional leveling feet or casters the unit can also be used freestanding.

Suitable for

• Small to medium-sized network closets and server rooms
• Wall-mounted installations where space-saving rack capacity is required
• Organizing network switches, patch panels and small servers up to 100 kg total

Key specifications

• Rack capacity: 16U
• Dimensions (W x D): 600 x 450 mm
• Weight: 30 kg
• Maximum load capacity: 100 kg
• Material: up to 1.5 mm sheet steel
• Protection rating: IP20 (indoor use)
• Colour: Grey (RAL 7035) or Jet Black (RAL 9005)

How to use

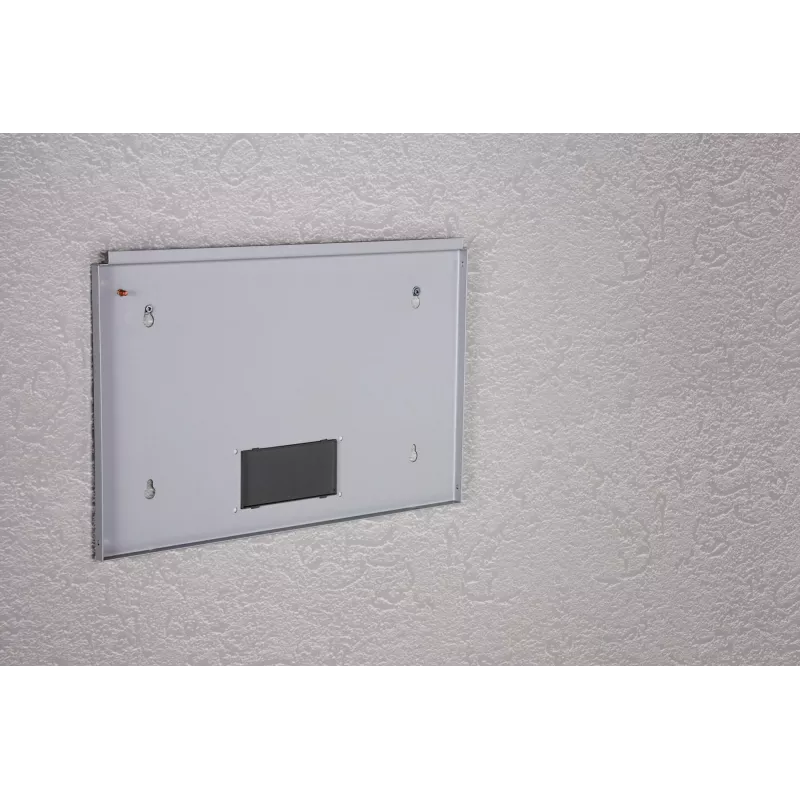

Mount the housing frame plate to a suitable load-bearing wall using appropriate fixings, then attach the cabinet housing to the frame. Adjust the depth of the internal 19" profile rails as needed and secure equipment using standard rack screws. Route cables through the sliding roof inlet or the pre-cut rear and floor inlets and close covers to maintain a tidy installation. If active cooling is required, install a compatible fan module in the pre-cut roof area.

Recommendations

For safe installation, ensure the wall and fixings support the combined weight of the cabinet and equipment (up to 100 kg). Use appropriate grounding and follow local electrical and building regulations. For mobility or floor use, install optional leveling feet or casters designed for this cabinet model.
